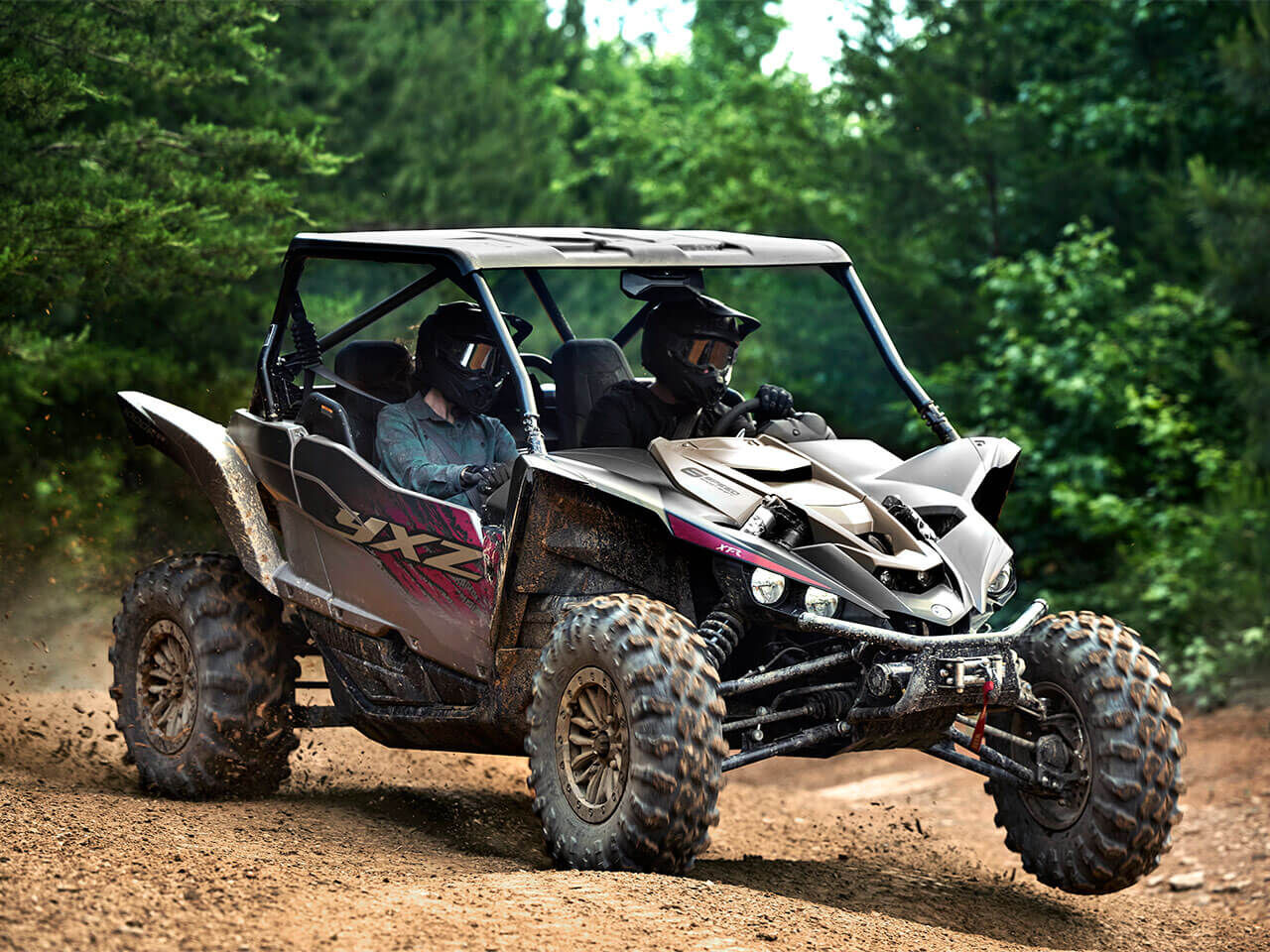

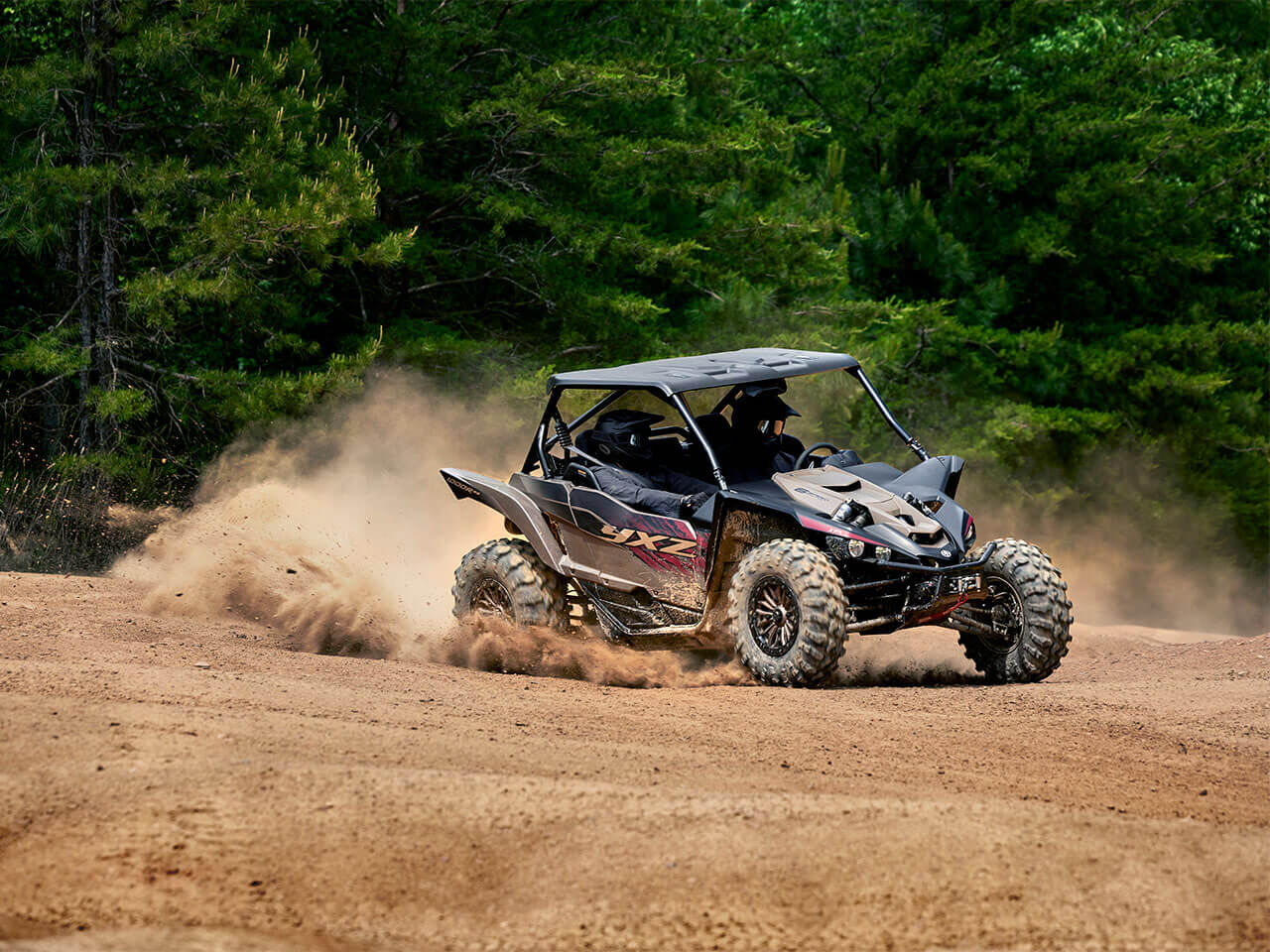

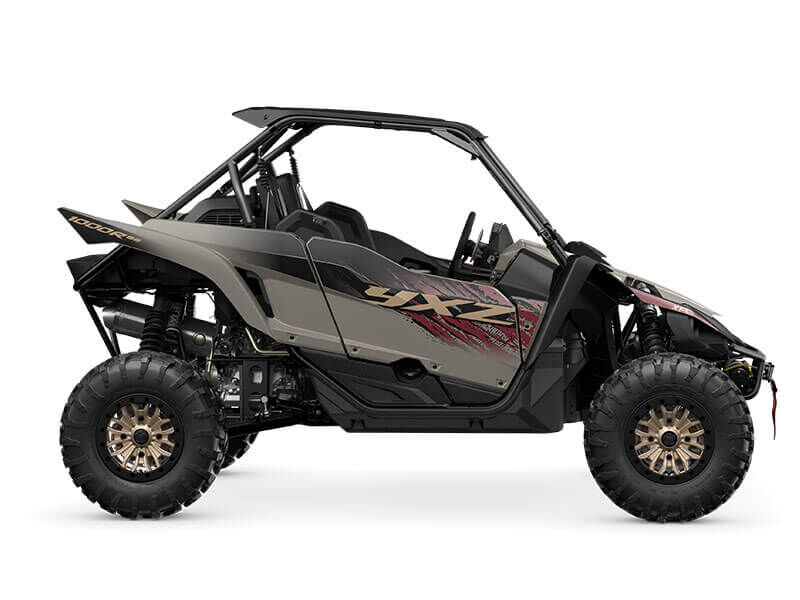

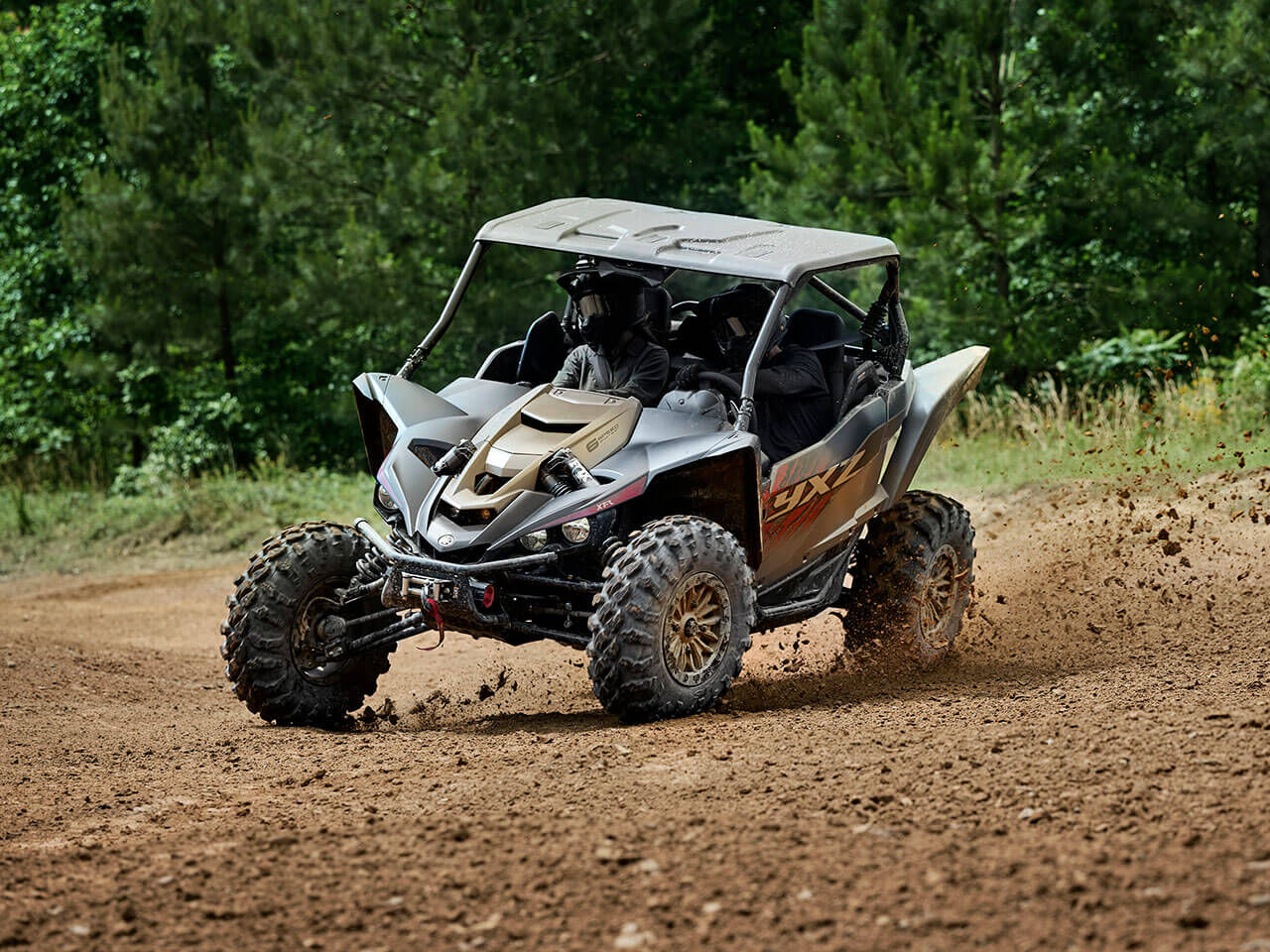

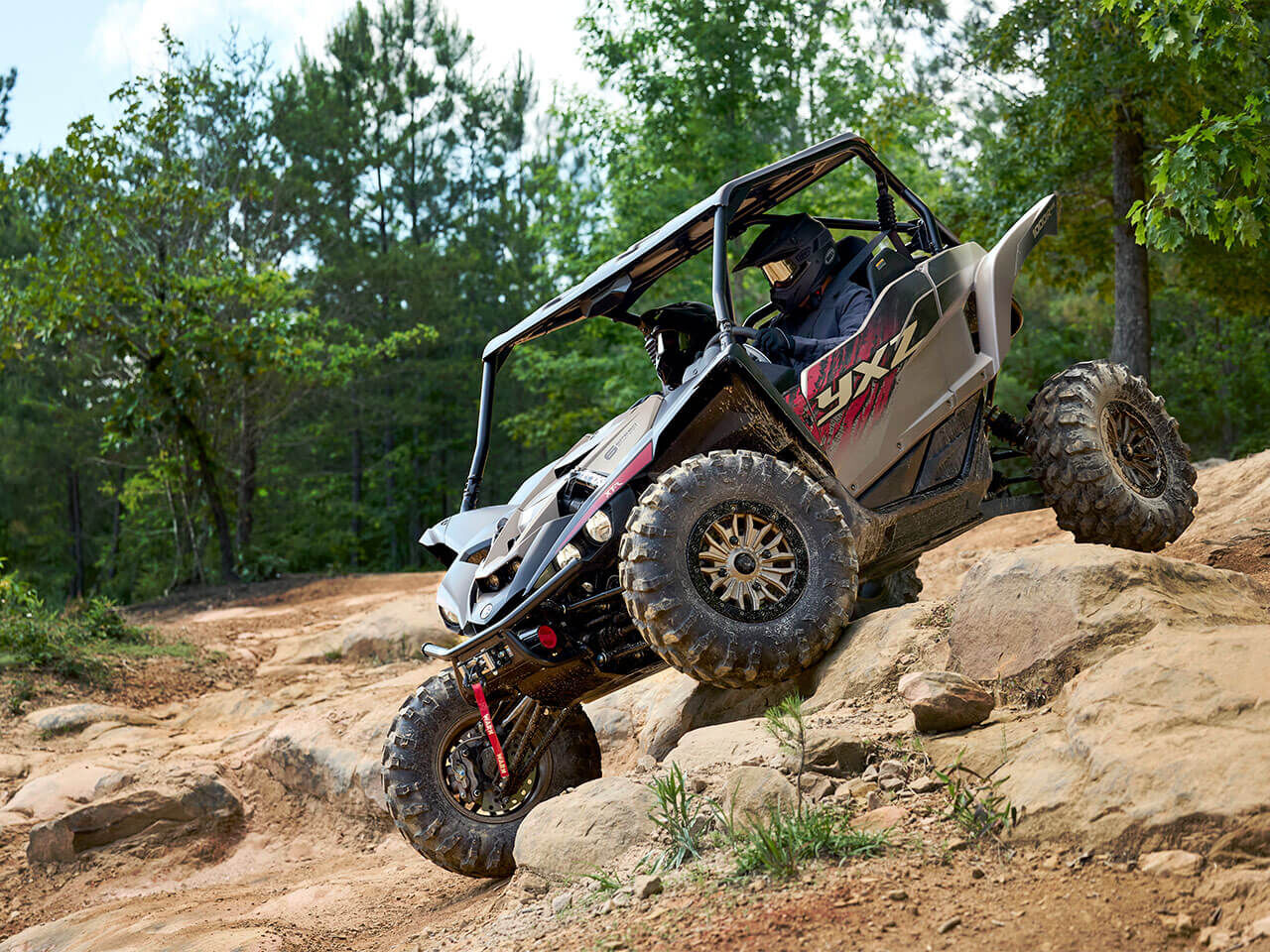

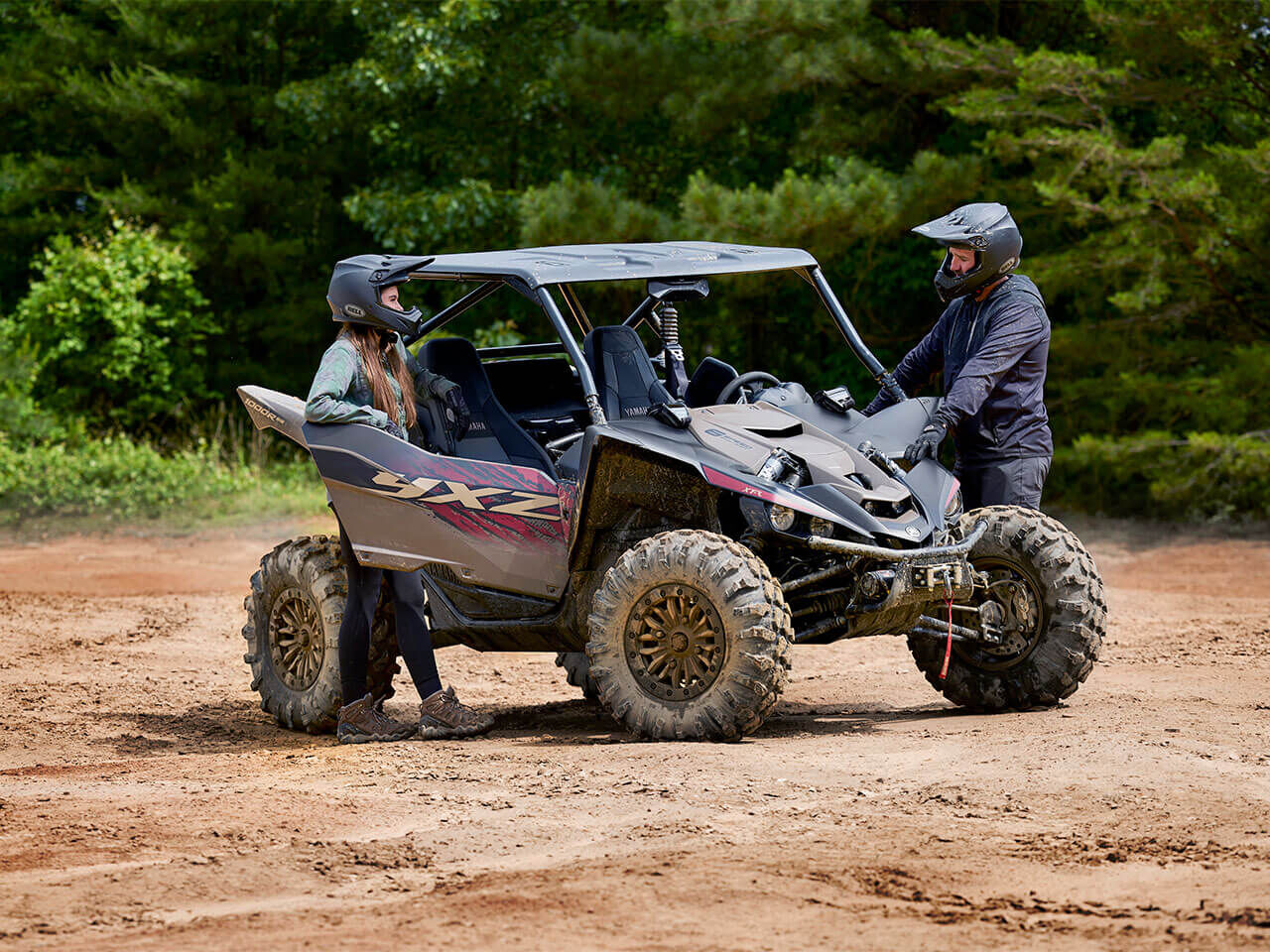

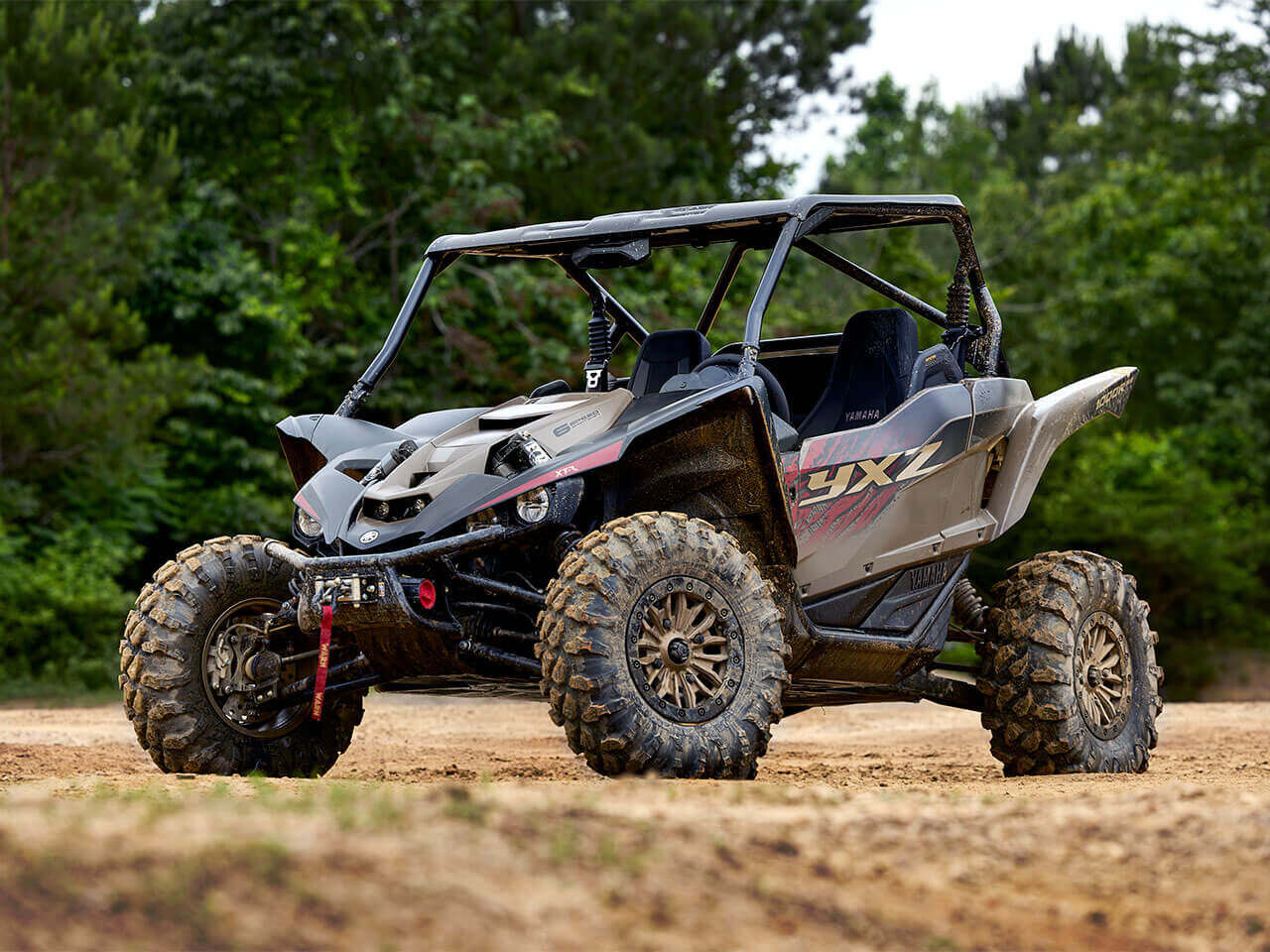

The YXZ1000R SS XT-R is the most Proven Off-Road Pure Sport Side-by-Side with superior Comfort and Capability, providing maximum Confidence, and in a variety of terrain from open desert and dunes, to muddy and rocky trails.

Boasting Yamaha’s legendary performance, durability, and reliability, the YXZ1000R SS XT-R promises to be the Pure Sport Side-by-Side for off-road enthusiasts wanting to REALize their Adventure and expand their driving expertise. And with the all-new, enhanced six-speed automatic or manual transmission, the industry’s only direct-connection thrill can now be experienced by more drivers.

> High revving 3-cylinder engine
> Close-ratio 6-speed transmission
> Yamaha Auto-Shift technology
> FoxÂŽ 2.5 Podium RC2 fully
adjustable suspension package
> 2WD, 4WD & 4WD with diff-lock
On-Command drive system
> Supersport-style dashboard
> Aggressive 29in Maxxis tyres
> WARN VRX 4500 winch package
> Super bright LED lighting

  • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve, 3-cylinder
  • Displacement (cc)998.0
  • Bore x Stroke (mm)80.0 x 66.2
  • Compression Ratio11.3 : 1
  • Lubrication System Dry sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L)34.0
  • Final Transmission Shaft
  • Transmission Constant mesh 6 speed, paddle shift, auto clutch, with reverse
  • Frame Type Steel tube
  • Suspension Front Independent double wishbone with anti-sway bar, 411mm travel
  • Suspension Rear Independent double wishbone with anti-sway bar, 432mm travel
  • Brakes Front Hydraulic dual discs
  • Brakes Rear Hydraulic dual discs, shaft mounted park brake
  • Tyres Front 29 x 9.00R-14
  • Tyres Rear 29 x 11.00R-14
  • Length (mm)3251
  • Width (mm)1636
  • Height (mm)1740
  • Seat Height (mm)
  • Wheelbase (mm)2300
  • Ground Clearance (mm)300
  • Wet Weight (kg)760
