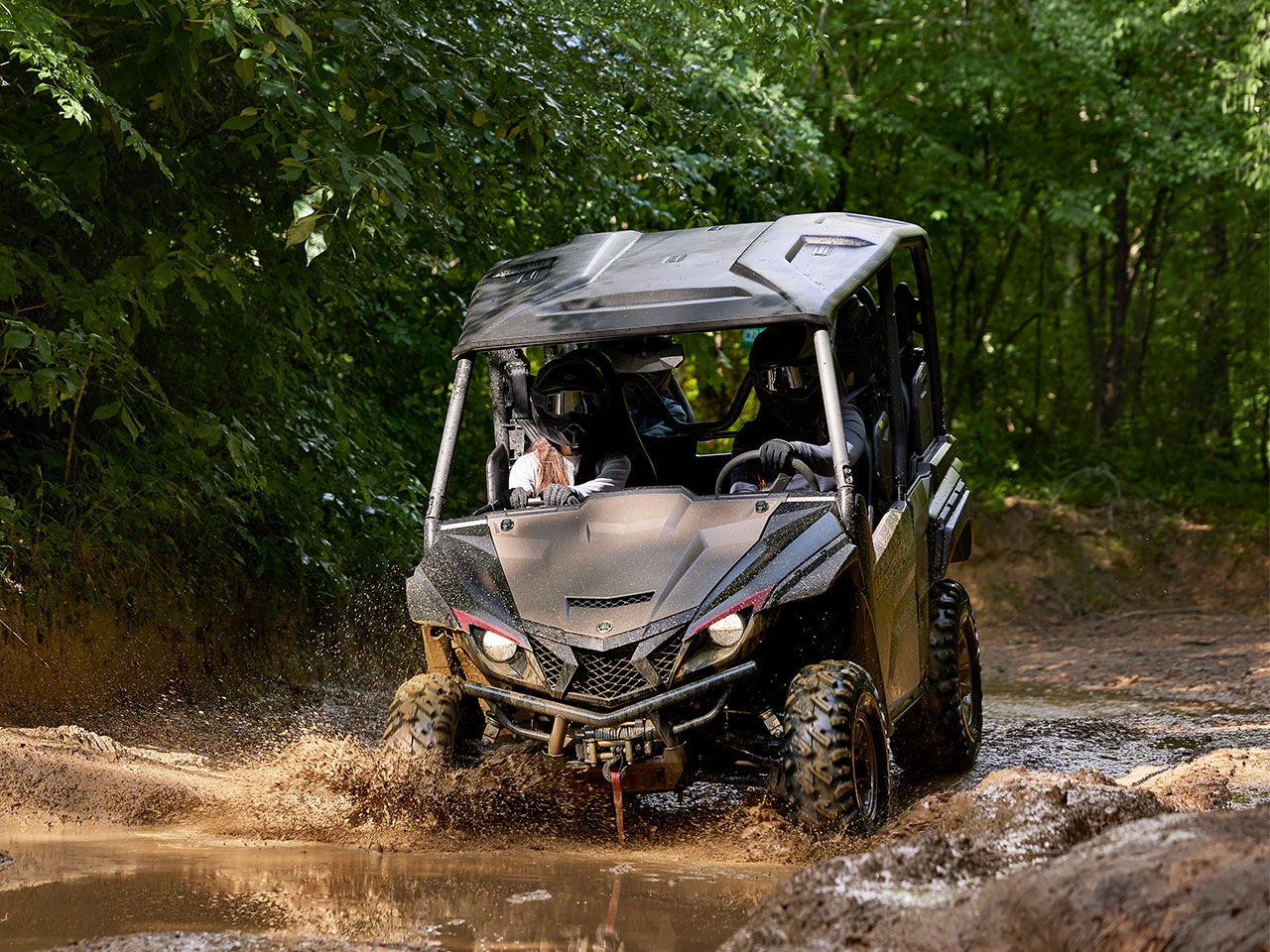

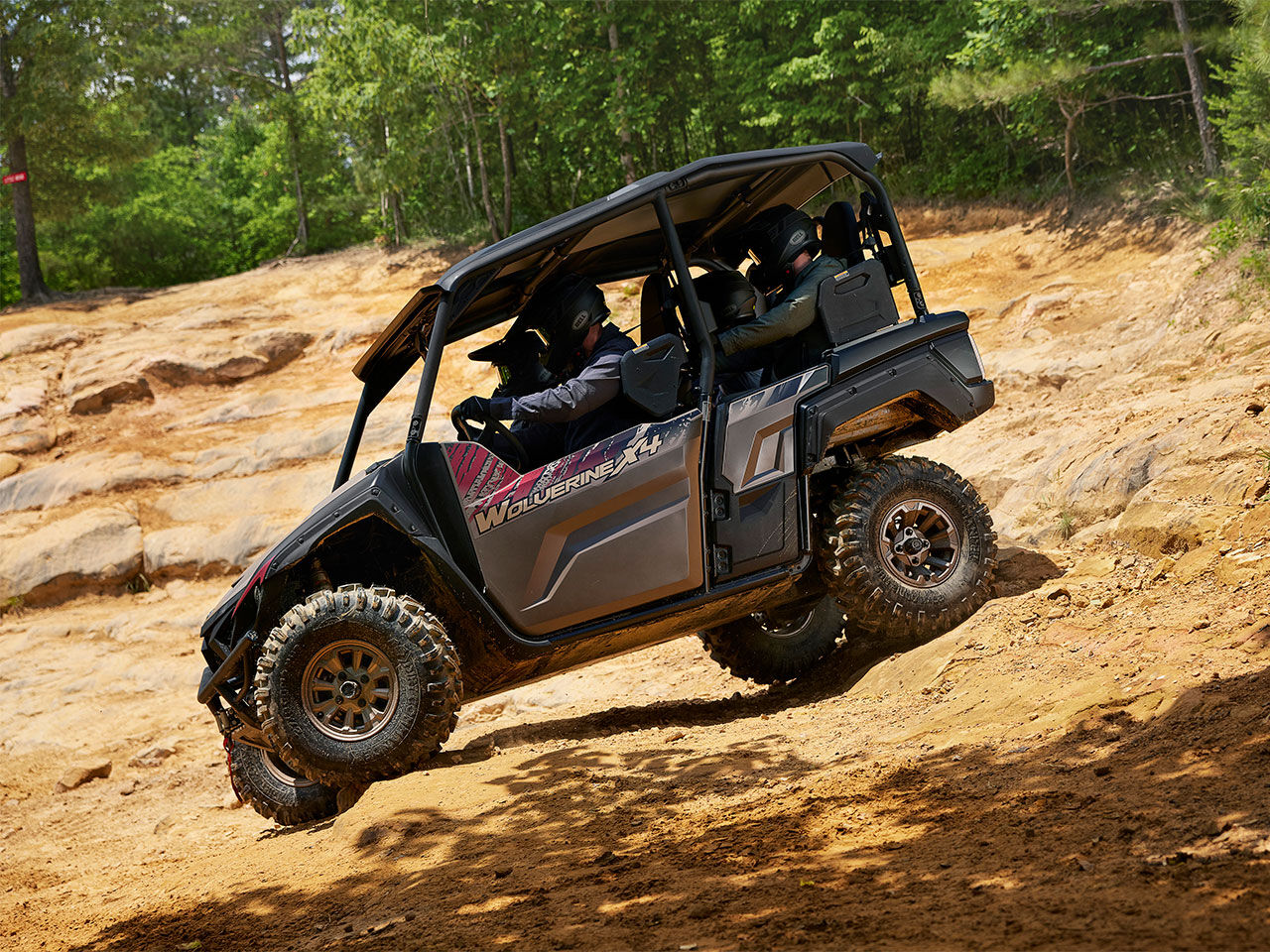

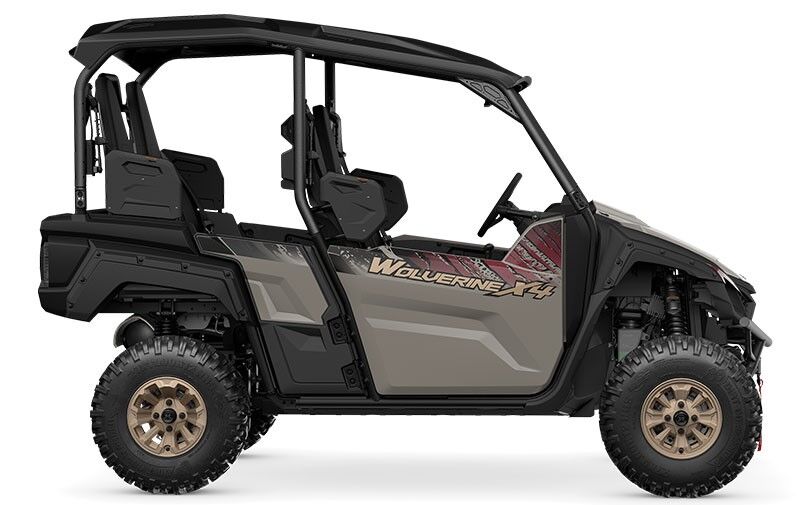

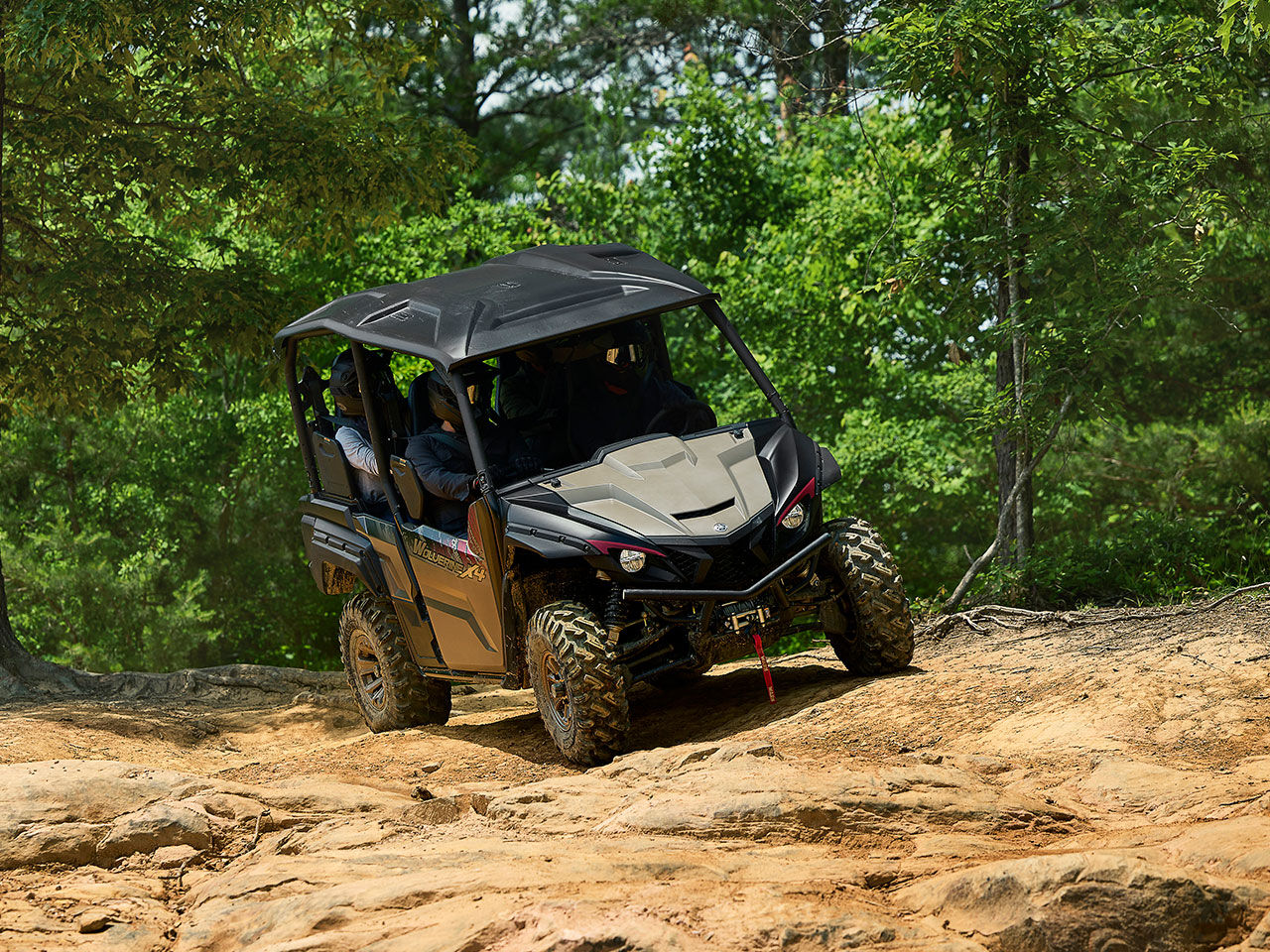

Wolverine X4 XT-R delivers superior handling, especially on tight, technical trails, combined with Yamaha’s legendary Real World Tough durability and reliability.

Smooth, ultra-quiet power comes from an 847cc twin-cylinder engine, along with Yamaha’s Real World Tech including the proven Ultramatic CVT transmission, Yamaha’s On-Command System with 2WD, 4WD and 4WD with full differential lock, and Yamaha’s exclusive EPS.

Kitted out in top-shelf XT-R trim including durable 27-inch radial tyres, a WARN® VRX 4500 winch, and high-quality painted body and graphics package with colour-matched aluminium wheels, Wolverine X4 XT-R sits four in comfort ready to take on tough terrain.

> Smooth and powerful 847cc twin cylinder powerplant

> Advanced self-levelling rear shocks

> Four full-size high-back seats

> Dual-range Ultramatic transmission

> 2WD, 4WD & 4WD with diff-lock On-Command drive system

> Speed management system

> XT-R package includes WARN VRX winch, tough 27in Dirt Commander tyres & colour matched aluminium wheels

  • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
  • Displacement (cc)847.0
  • Bore x Stroke (mm)82.0 x 80.2
  • Compression Ratio10.5 : 1
  • Lubrication System Dry sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L)35.0
  • Final Transmission Shaft
  • Transmission Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
  • Frame TypeSteel tube
  • Suspension Front Independent double wishbone, 221mm wheel travel
  • Suspension Rear Independent double wishbone, 236mm wheel travel with self-leveling shock absorbers
  • Brakes Front Hydraulic dual discs
  • Brakes Rear Hydraulic dual discs
  • Tyres Front 27 x 9-12
  • Tyres Rear 27 x 11-12
  • Length (mm)3100
  • Width (mm)1580
  • Height (mm)1973
  • Seat Height (mm)
  • Wheelbase (mm)2125
  • Ground Clearance (mm)286
  • Wet Weight (kg)823
