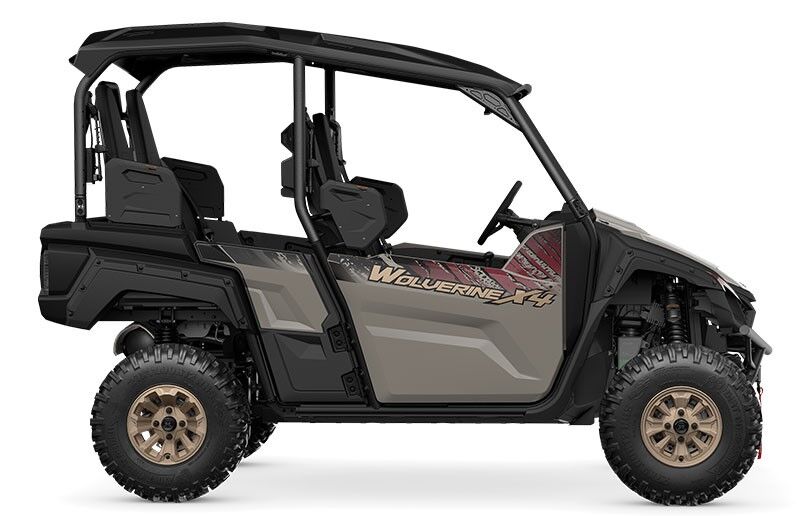

This incredible new four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

Smooth power is produced by the class-leading new 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

RMAX 4 conquers the toughest terrain in comfort.

> Powerful and smooth parallel
twin engine
> Roomy four person cabin
> Unique three-position D-Mode
switch
> Fox® QS3 suspension package – with
easy tool-free adjustment
> 2WD, 4WD & 4WD with diff-lock
On-Command drive system
> Tough and grippy 29in Maxxis tyres
> 2000kg WARN VRX winch
> Speed management system

  • Engine Type Liquid-cooled, 4-stroke, DOHC, parallel twin
  • Displacement (cc)999.0
  • Bore x Stroke (mm)93.0 x 73.5
  • Compression Ratio11.2 : 1
  • Lubrication System Dry sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L)34.8
  • Final Transmission On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
  • Transmission Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
  • Frame Type Steel tube
  • Suspension Fron tIndependent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel
  • Suspension Rear Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel
  • Brakes Front Hydraulic dual discs
  • Brakes Rear Hydraulic dual discs
  • Tyres Front 29 x 9.00R-14 Maxxis Carnage
  • Tyres Rear 29 x 11.00R-14 Maxxis Carnage
  • Length (mm)3255
  • Width (mm)1676
  • Height (mm)2110
  • Seat Height (mm)
  • Wheelbase (mm)2291
  • Ground Clearance (mm)340
  • Wet Weight (kg)930
