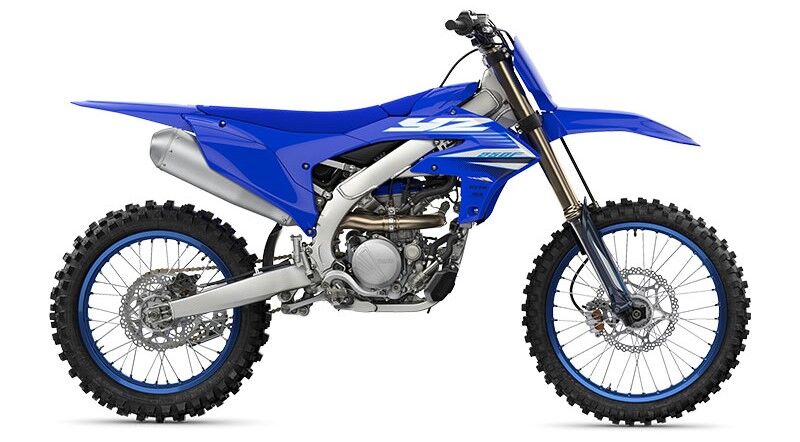

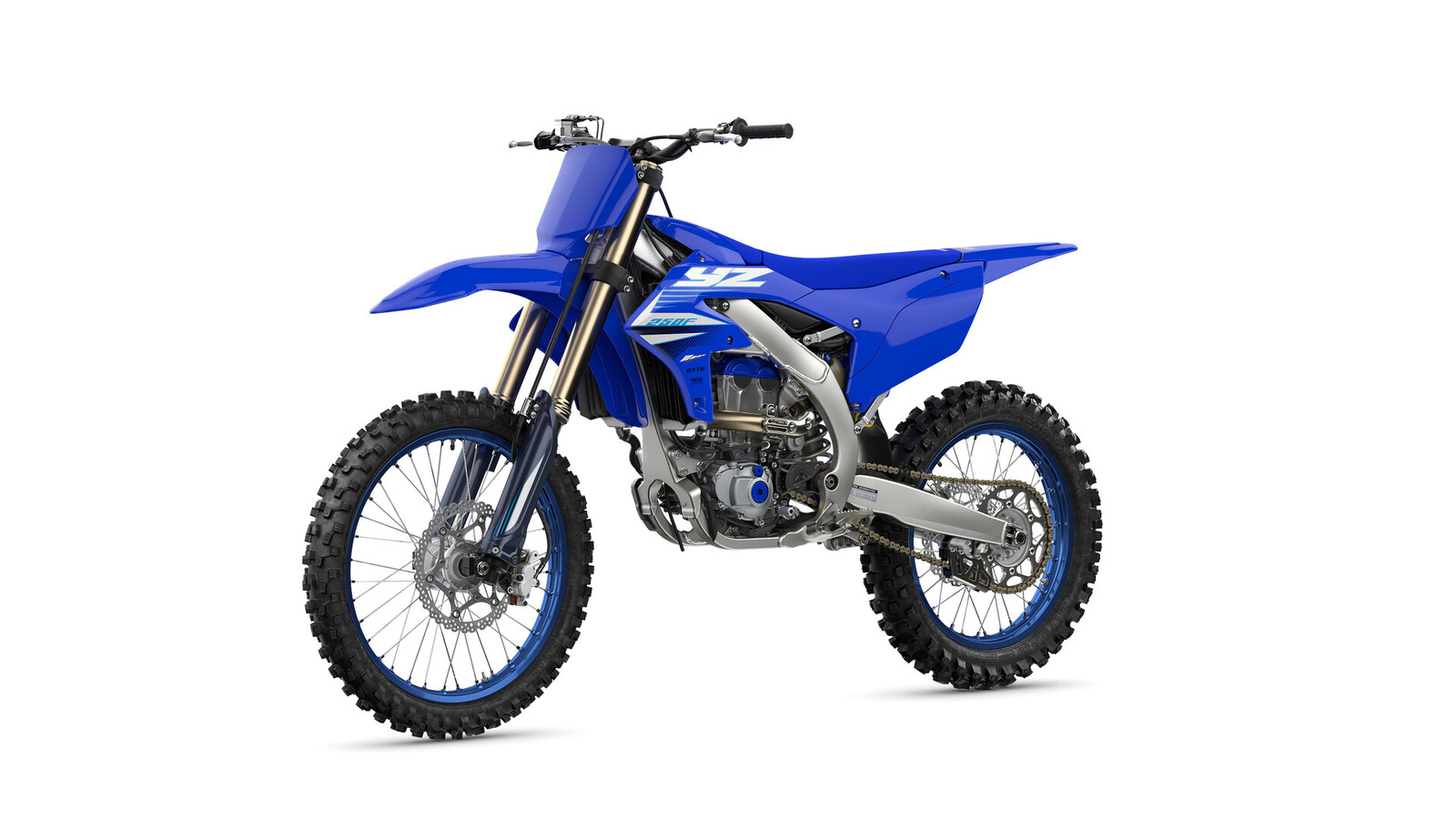

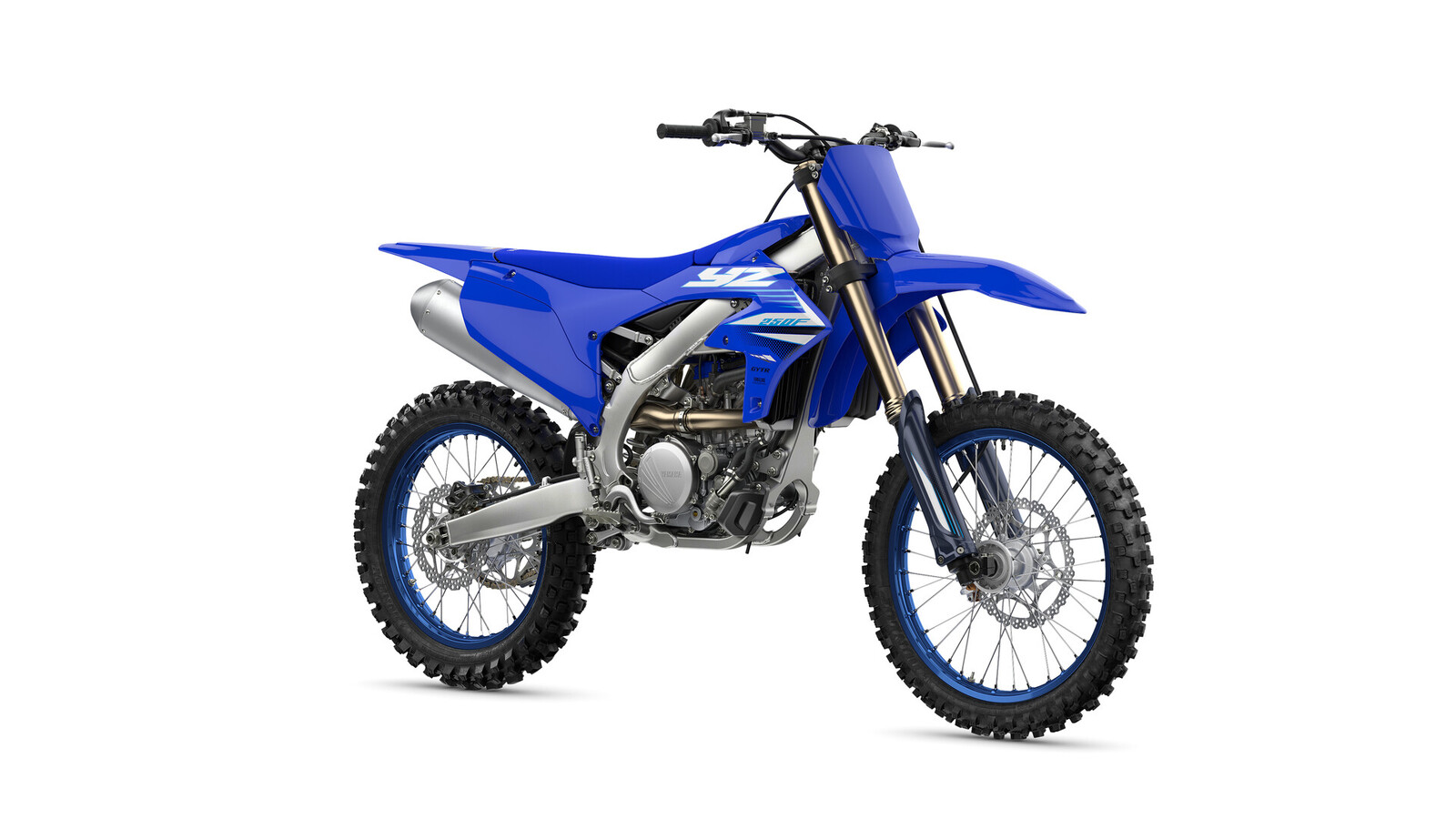

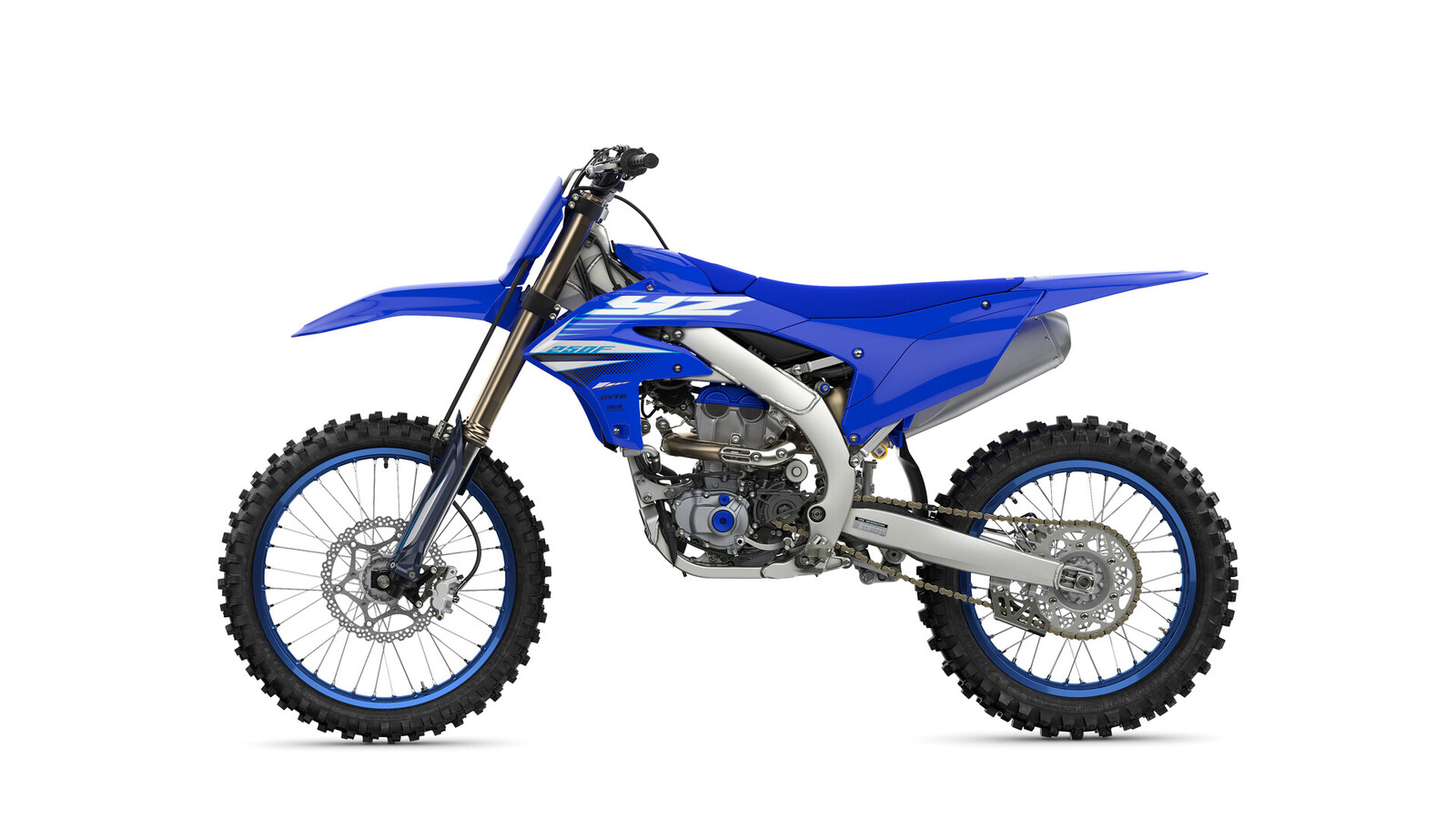

Yamaha MY25 YZ250F

Featuring a high-spec piston, aggressive cam profiles and forward positioned intake cylinder head layout, the YZ250F's advanced four-stroke engine is known for its broad, useable powerband and class-leading low-end and mid-range torque.

The aluminium bilateral beam frame is based on the flagship YZ450F and provides just the right amount of strength and flex for the perfect balance of stability and cornering performance. The result is a superb handling machine with lightweight feel and increased front wheel traction, allowing the rider to enter corners with greater confidence and more line choices.

Adjustable Engine Maps

Traction & Launch Control

Yamaha Power Tuner App

ENGINE

  • Engine Type Liquid cooled, 4-stroke, DOHC, 4-valve
  • Displacement (cc) 250.0
  • Bore x Stroke (mm) 77.0 x 53.6
  • Compression Ratio 13.8 : 1
  • Lubrication System Wet sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L) 6.2
  • Final Transmission Chain
  • Transmission Constant mesh 5-speed

CHASSIS

  • Frame Type Bilateral beam
  • Suspension Front Telescopic forks, 310mm travel
  • Suspension Rear Swingarm (link suspension), 312mm travel
  • Brakes Front Hydraulic single disc, 270mm
  • Brakes Rear Hydraulic single disc, 240mm
  • Tyres Front 80/100-21 Dunlop Geomax MX33F
  • Tyres Rear 110/90-19 Dunlop Geomax MX33

DIMENSIONS

  • Length (mm) 2180
  • Width (mm) 825
  • Height (mm) 1275
  • Seat Height (mm) 970
  • Wheelbase (mm) 1475
  • Ground Clearance (mm) 350
  • Wet Weight (kg) 105
