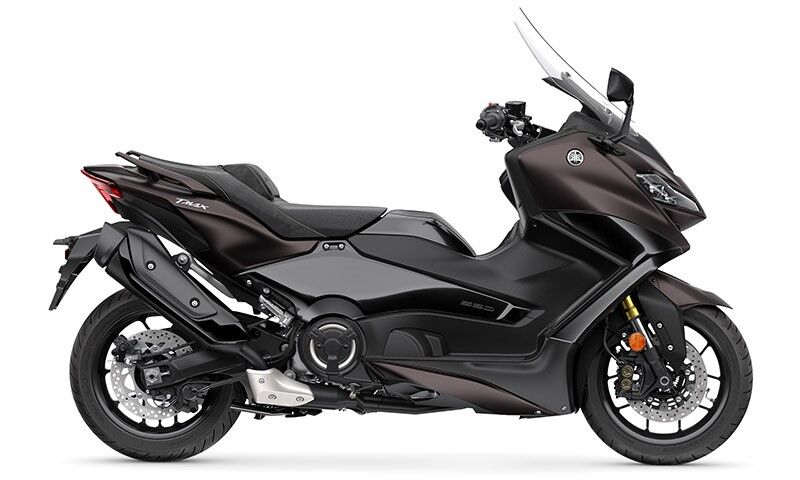

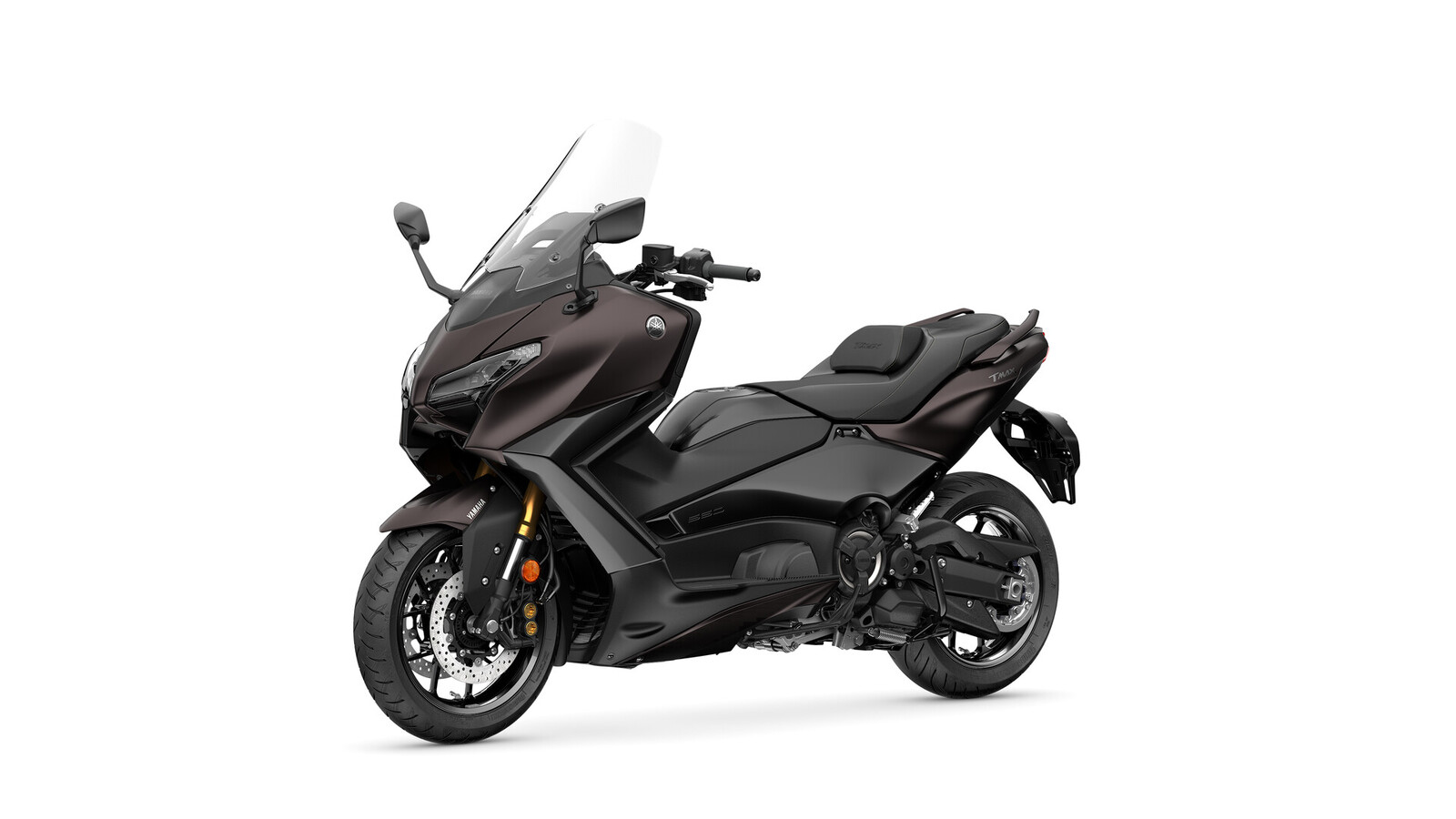

TMAX Tech MAX

TMAX Tech MAX features a dynamic new look with a sharper front end, as well as upgraded rider assist and a more sophisticated dash – and a premium finish that underlines its status as the ultimate Yamaha sport scooter. Together with upgrades to the connected dash, riders will also benefit from the increased controllability offered by Brake Control, and the refined engine meets the needs of the environmentally conscious.

TMAX is also equipped with D-MODE which enables the rider to select the desired engine power character to suit urban or highway riding, as well as Traction Control that moderates power to the rear wheel on loose or slippery surfaces.

Low emission 560cc twin cylinder engine

Enhanced electronic rider’s assist

Dynamic new dual eye headlights and refined bodywork

Upgraded 7-inch screen with enhanced connectivity

Garmin Navigation - TMAX riders can access full map Garmin Navigation* through the Garmin Motorize App that’s available to download on an Apple or Android phone

Features

TMAX Tech MAX features • Electrically adjustable screen • Heated grips & heated seat • Cruise Control • Adjustable rear suspension • Tyre Pressure Monitoring system (TPMS) • Backlit handlebar switches • Machined wheels • Compliant 560cc twin • New Brake Control (BC) system • New dual-eye face and stronger front body designGarmin Navigation • 7-inch TFT dash with enhanced connectivity • Luxurious ergonomics with adjustable rider backrest • Large diameter disc brakes • SpinForged 15-inch wheels and wide tyres • Lightweight aluminium twin spar frame • D-MODE and Traction Control • Large storage space • Smart Key keyless operation

> Powerful parallel-twin engine
> Lightweight motorcycle-type
aluminium chassis
> Smartkey keyless ignition
> Cruise control
> 7in colour TFT instrumentation
> Projector headlights
> Advanced electronics including
YCC-T, APSG, traction control and
D-MODE
> Smartphone connectivity
> Electronically adjustable windscreen
> Large underseat storage

  • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
  • Displacement (cc)562.0
  • Bore x Stroke (mm)70.0 x 73.0
  • Compression Ratio10.9 : 1
  • Lubrication System Dry Sump
  • Fuel Management Fuel Injection
  • Ignition TCI
  • Starter System Electric
  • Fuel Tank Capacity (L)15.0
  • Final Transmission Belt
  • Transmission V-Belt Automatic
  • Frame Type Aluminium CF die-cast
  • Suspension Front Telescopic forks, 120mm travel
  • Suspension Rear Swingarm, 117mm travel
  • Brakes Front Hydraulic dual discs, 267mm - ABS
  • Brakes Rear Hydraulic single disc, 282mm - ABS
  • Tyres Front 120/70R15M/C 56H Tubeless
  • Tyres Rear 160/60R15M/C 67H Tubeless
  • Length (mm)2195
  • Width (mm)780
  • Height (mm)1415 / 1525
  • Seat Height (mm)800
  • Wheelbase (mm)1575
  • Ground Clearance (mm)135
  • Wet Weight (kg)220
