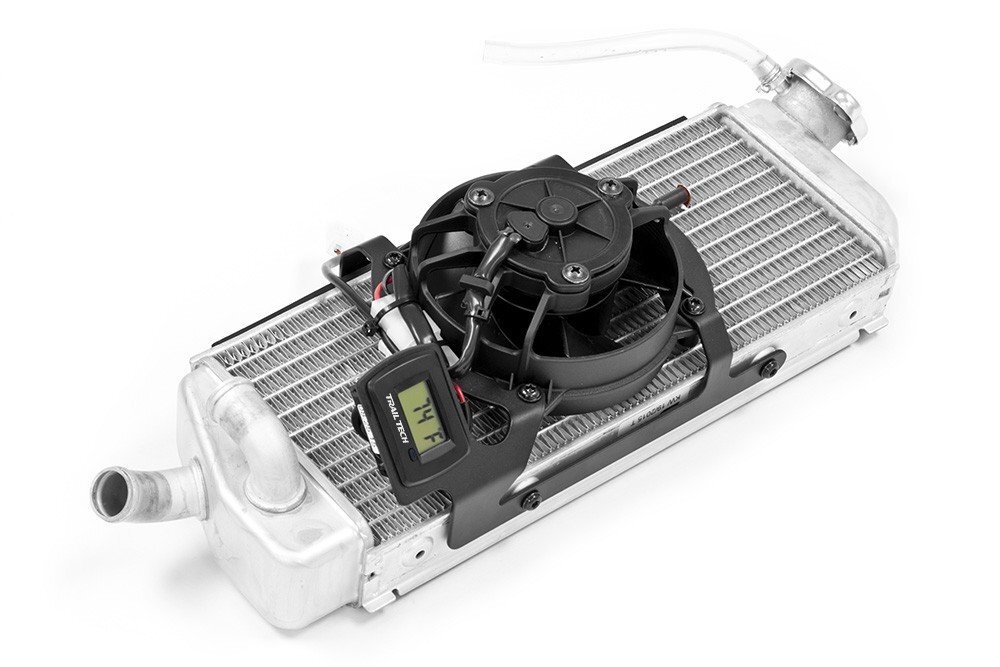

Trail Techs TTO Temperature Switching Fan Kit monitors your KTM & Husqvarnas cooling system performance and automatically activates the fan to keep engine at optimum temperature range.

- Custom adjustment of temperature trigger point

- No cutting of fluid lines with included fin sensor

- 30 watt draw

- 4 Inch fan

- 12V DC ONLY

- Temperature: (-)40 to 300 Degrees Celsius

- Physical Weight: 652 Grams

- Physical Dimensions: 109 x 109 x 48mm

NOTE: Please make sure bike has necessary power available.

On bikes that have a regulated thermostatically controlled harness (this includes all new KTM and Husqvarna EFI 2 strokes) you will need to install the included wire harness back to the battery and attached the fan kit to that wire harness.

Contents

A Inch SPAL Fan: 7051-FN1

TTV Temperature Gauge: 732-S00

Radiator Bracket: 7051-BR11

Temperature Sensor: 7500-3007

Wire Harness: 732-WH1
