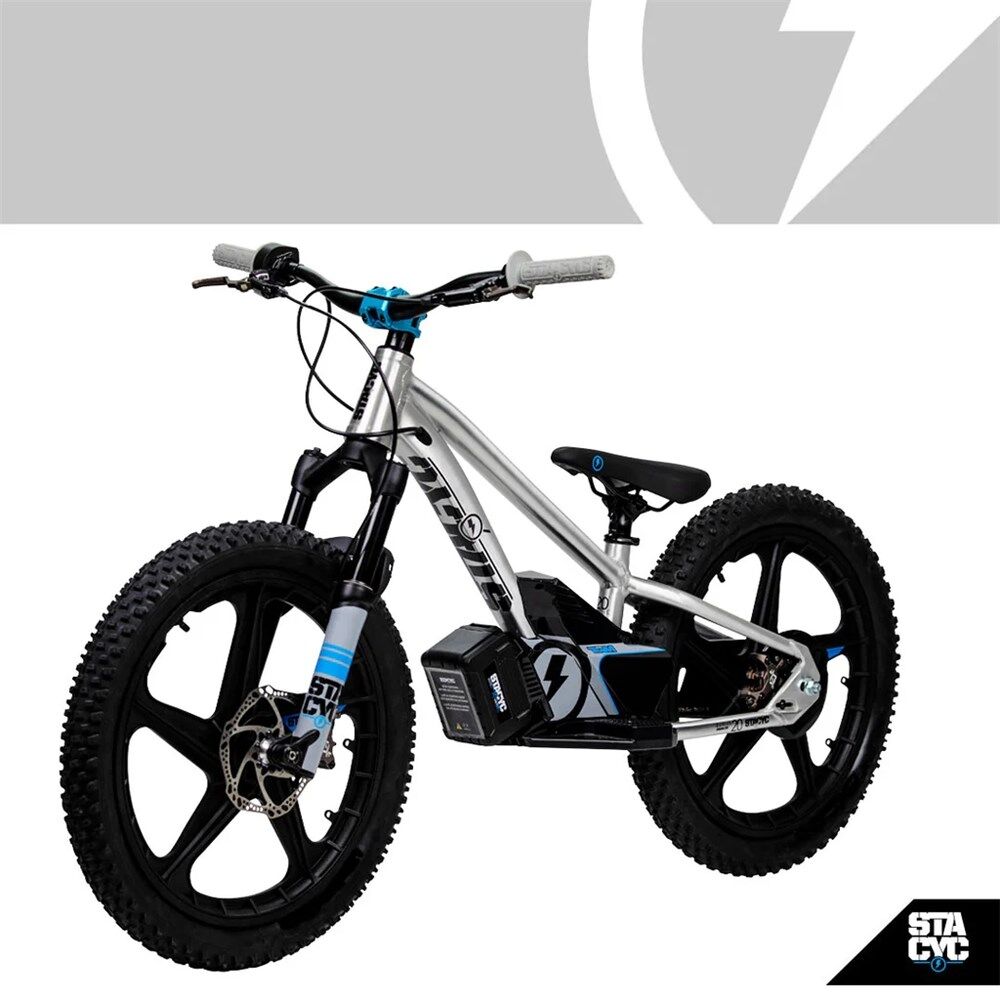

STACYC 20eDRIVE TEAM EDITION

The STACYC 20eDRIVE TEAM Edition fuses performance-enhancing component upgrades with style-elevating trim details to deliver the ultimate 20eDRIVE.  Designed for STACYC’s TEAM of elite rippers, the 20eDRIVE TEAM Edition is now available to the public in a limited quantity.

The TEAM Edition arrives fully equipped with a distinct brushed aluminum frame, cyan anodized stem, Hayes Dominion A2 brakes, Manitou JUNIT forks, gray STACYC grips and exclusive TEAM Edition graphics.  All the bells and whistles to elevate your growing ripper’s style and performance!

Perfect for 10-12yr olds under 52kg

  • Seat Height: 58cm | 61-66cm inseam
  • Weight: 15 kg w/ battery
  • Full Aluminum frame w/ proprietary shaped tubes
  • Distinct brushed aluminum finish with protective clear coating
  • Manitou J-Unit Machete Fork w/ custom 80mm of travel
  • Cyan anodized 31.8mm machined stem
  • Oversized moto-style handlebar tapers from stem down to 19mm at grips
  • Proprietary throttle assembly with LED on/off button and separate battery indicator lights
  • Gray STACYC grips
  • Hayes Dominion A2 hydraulic disc brakes front & rear
  • 20“Nylon wheels with sealed bearings and pneumatic tires
  • 20x2.6 (semi-custom) Innova tires

36V BRUSHLESS motor platform w/ proprietary Cush Drive

  • Power selection modes:
    • Low/Training mode ~ 16 kph
    • Med/Standard mode ~ 24 kph
    • High/Advanced mode ~ 32 kph
  • 30-60 min run-time* | 3 hr charge time
  • Quick connect / disconnect battery
  • 40Vmax Voltage (36Vnom) 6Ah - 18650 battery
  • Industrial grade charger included

* Run-time is entirely dependent on terrain, hills and skill level

STACYC Manufacturer’s Limited Warranty

Email: support@stacyc.com.au

Stacyc (‘Manufacturer’) warrants that the product is free from material and manufacturing defects as provided for below (‘Warranty’).

  • Frame and Fork – Five years from the date of purchase.
  • Non-electrical systems components – One year from the date of purchase.
  • Electric system components, including battery and charger – 90 days from the date of purchase.
  • Normal wear and tear items (sprockets, chain, grips, bar plugs, saddle, footrest, brake cable/housing, brake lining, paint/decals, tires, inner tubes) – 30 days from the date of purchase.

This Warranty is valid only for the original purchaser and is non-transferable. Warranty claims must be accompanied by the original proof of purchase. If proof of purchase is not provided, the warranty period begins from original date of manufacture.

This Warranty will be void to the extent to which a defect is caused by:

  • the product not being used in accordance with the owner’s manual;
  • the product having been damaged in an accident, crash or loss of control incident;
  • the product having used in a manner other than for recreation;
  • the product having been poorly or incorrectly maintained;
  • the product having been used in a manner for which this product was not specifically designed;
  • a failure to follow owner’s manual instructions or warnings;
  • the electronics or battery being exposed to water;
  • the product having been modified in any way;
  • unauthorized service or parts;
  • the product having been used for commercial purposes;
  • the product not having been properly assembled, maintained or stored; or
  • the product having been used after it should have been apparent that there was a defect.

If you think you have a claim under this Warranty you should immediately cease using the product and contact us via info@stacyc.com.au or on +61 (0)2 8882 1900

This Warranty does not cover the cost of taking the product to a dealer and the manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use or misuse of the product.
