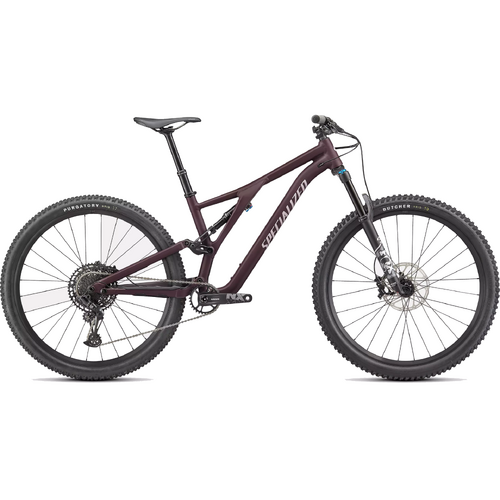

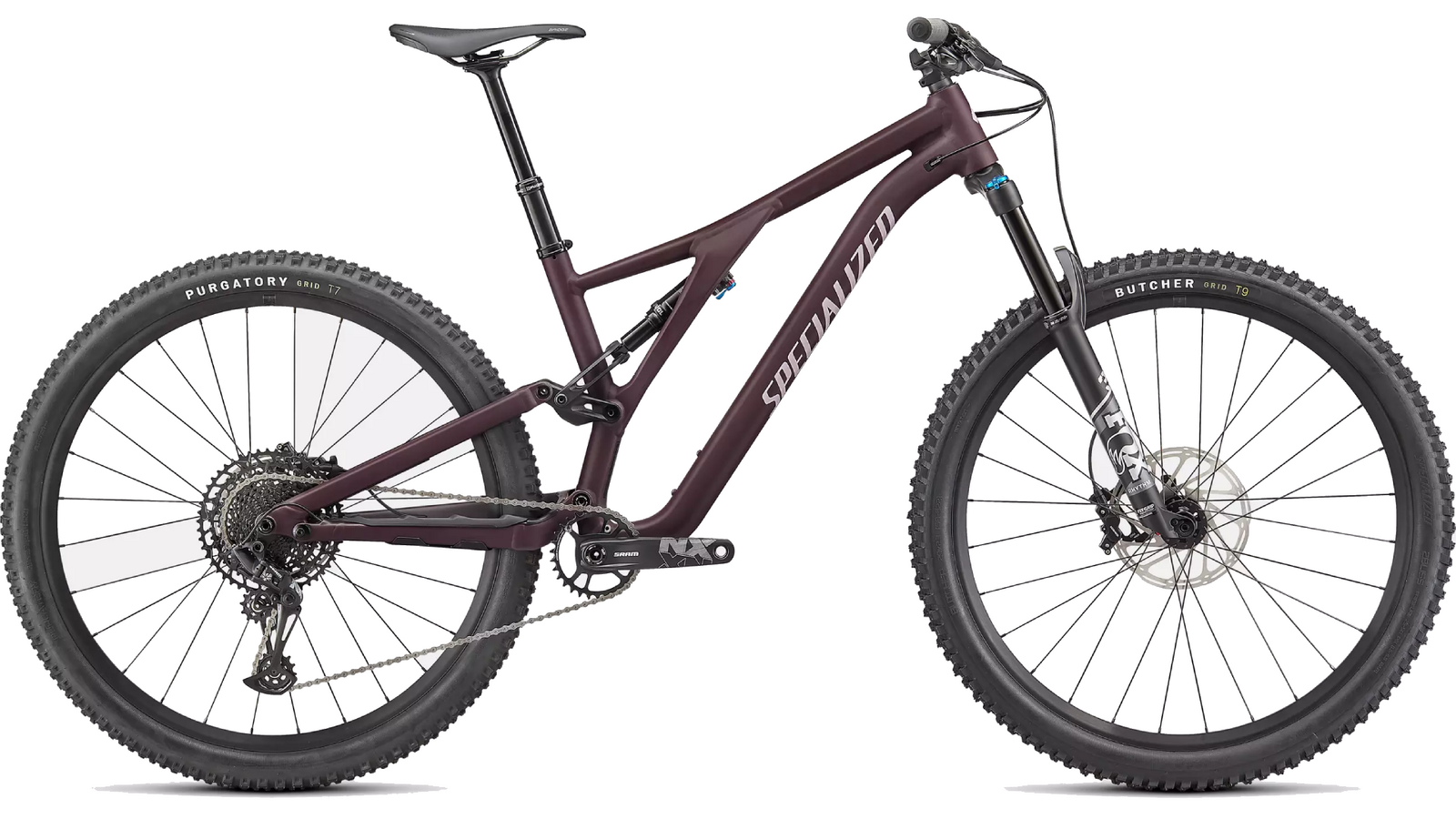

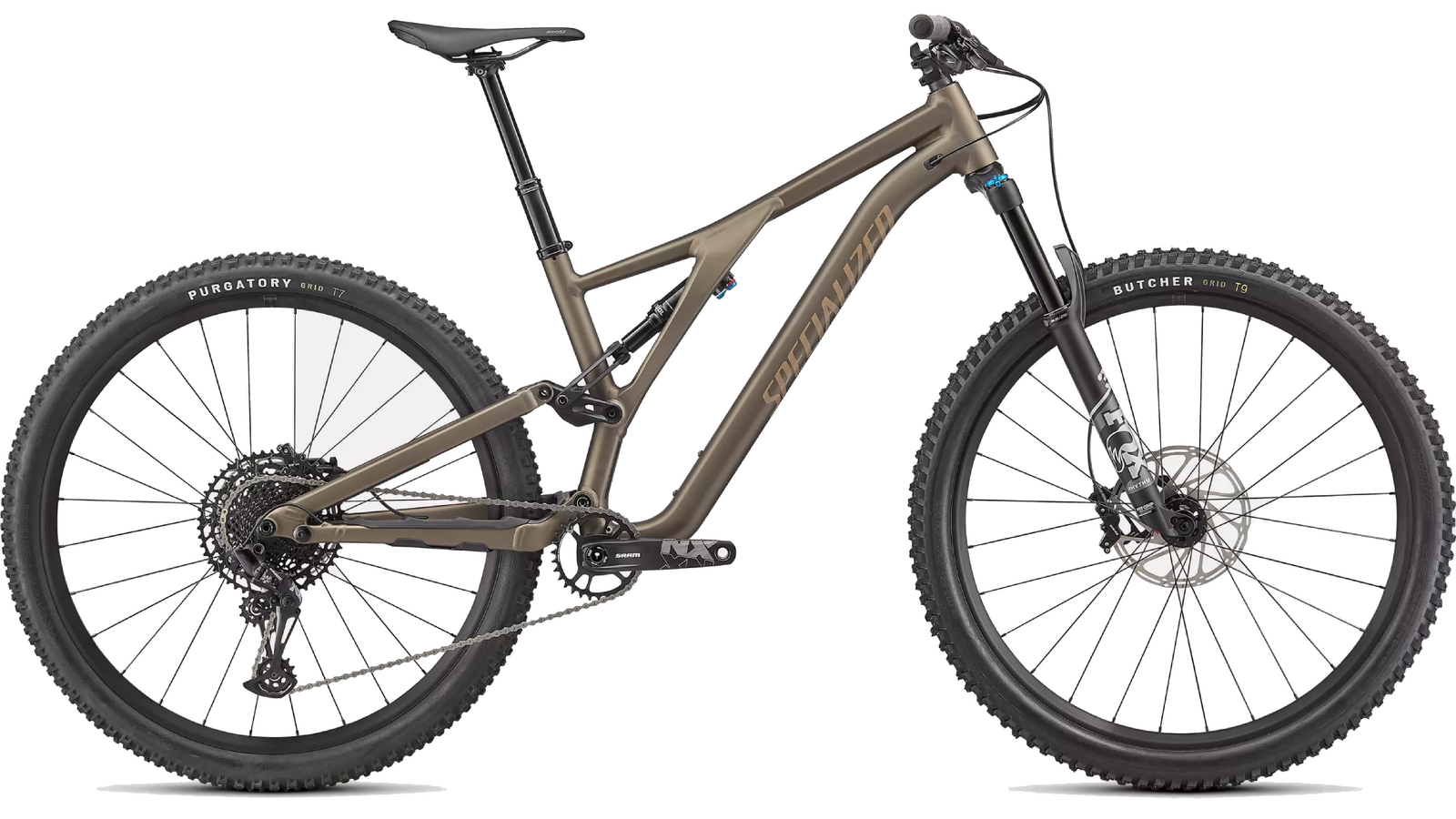

Metal fans rejoice! The Stumpjumper Comp Alloy rocks on, with one of the most advanced alloy frames ever developed. From the frame’s asymmetrical design, taking in the refined suspension kinematics and all-new geometry, to a build kit that strikes the optimal combination of performance and value, it’s metal, but it ain’t heavy metal. And it’s ready to slay some dirt.

  • THE TRAIL BENCHMARK — When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
  • PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
  • RIDER-FIRST ENGINEERED™ — Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).

FRAMESET

Frame

Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, S1:190x42.5mm, S2-S6: 190x45mm

Fork

FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 140mm of travel

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Tape

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Front Brake

SRAM G2 R, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM G2 R, 4-piston caliper, hydraulic disc, 180mm

DRIVETRAIN

Rear Derailleur

SRAM NX Eagle, 12-speed

Shift Levers

SRAM NX Eagle, trigger, 12-speed

Cassette

SRAM NX Eagle PG-1230, 12-speed, 11-50t

Chain

SRAM NX Eagle, 12-speed

Crankset

SRAM NX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

Steel, 30T

Bottom Bracket

SRAM DUB, BSA 73mm, threaded

WHEELS

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

DT Swiss Industry

Front Tire

Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3"

Rear Tire

Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

Standard, Presta valve
