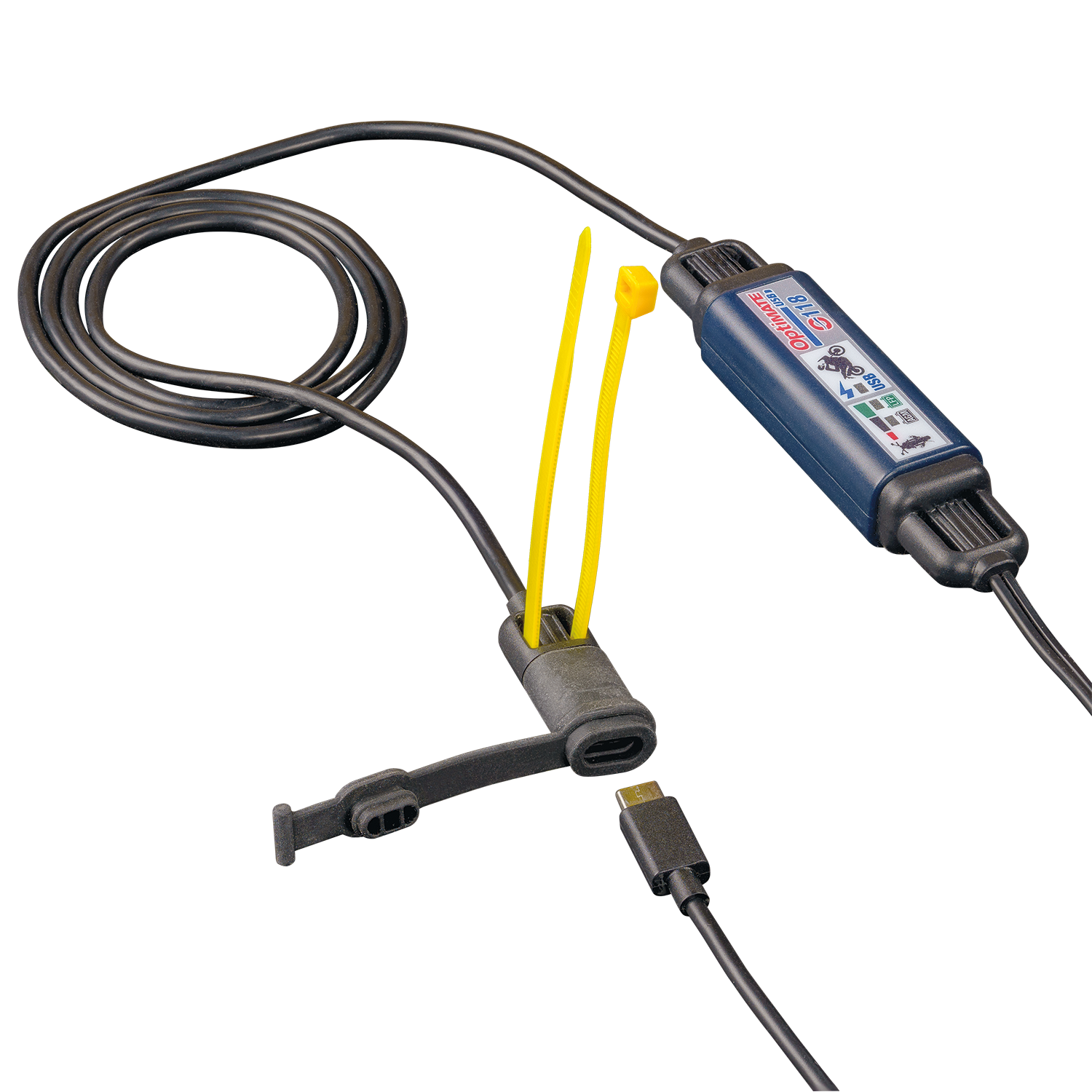

The sealed in-line battery to motorcycle USB-C charger (3300mA) with 200cm / 80″ of cable and O-31 battery lead, delivers safe and fast USB charging of any device mounted outside on the handlebar or inside your tank or pannier – Cable routes to where USB charging is needed!



Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80″ / 200cm away from 12V supply.

LENGTH: 80" / 200cm

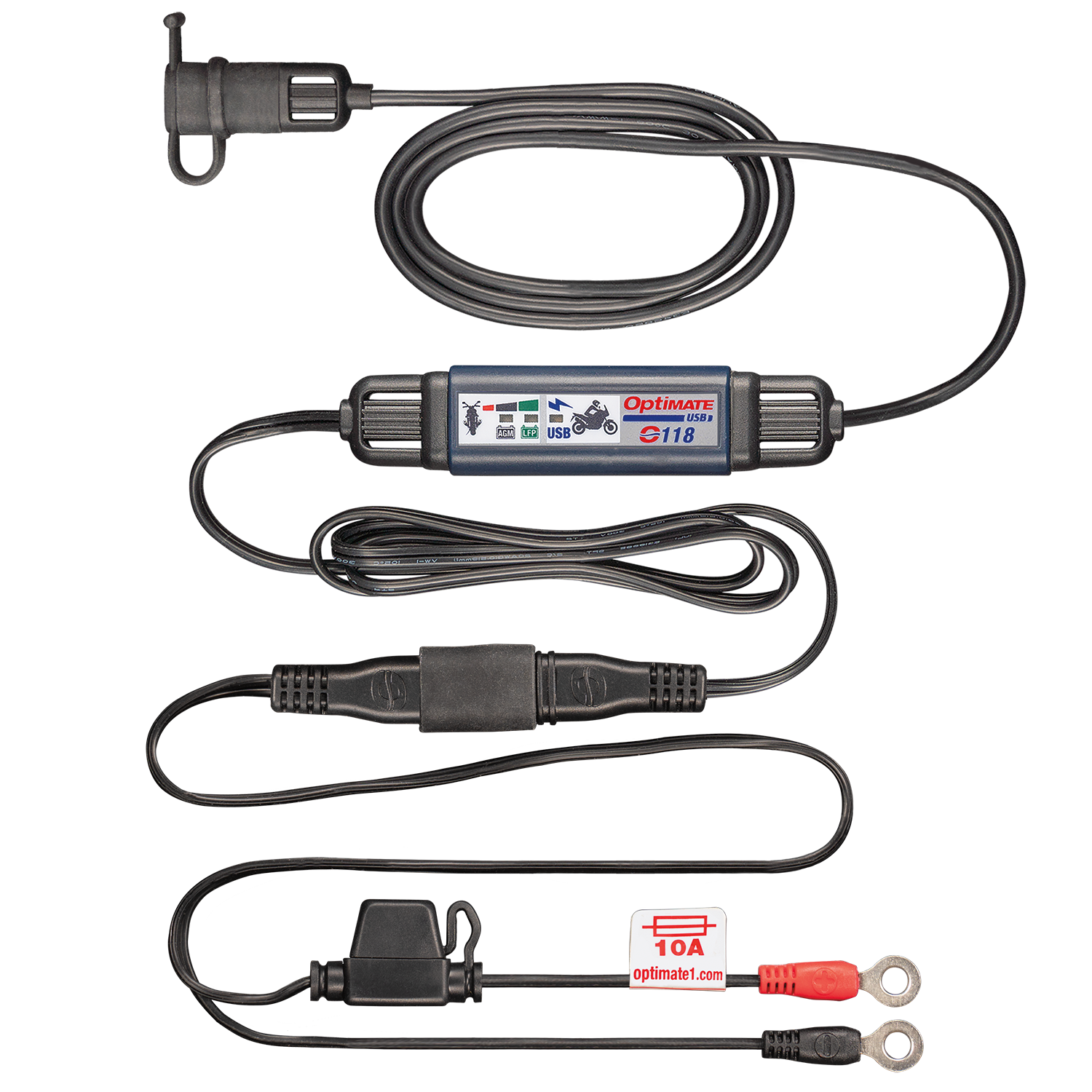

CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4”) rings / eyelets OR 2-pin SAE (if disconnected from O-31).

POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.

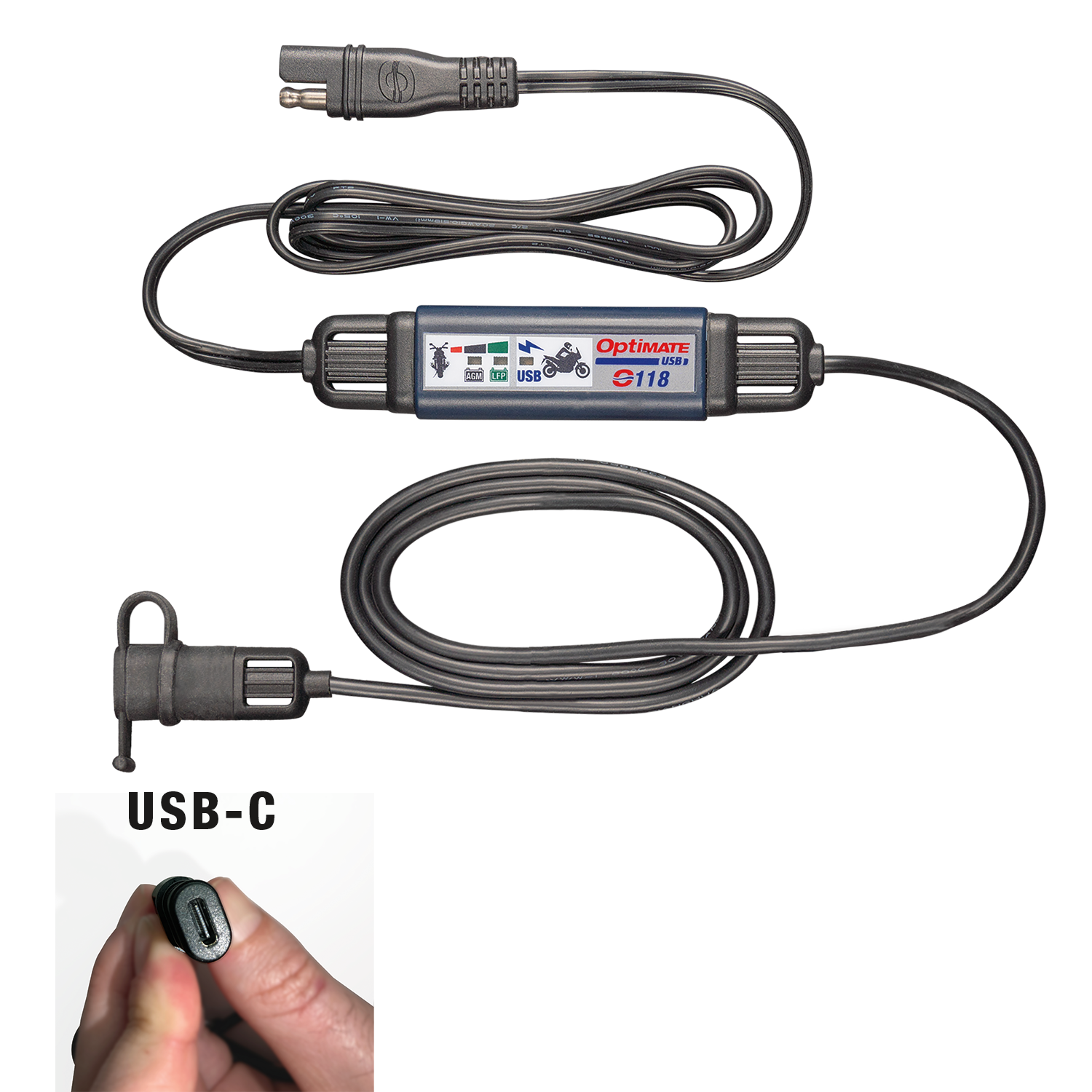

CHARGE CONNECTOR (OUTPUT): 1x USB

POWER (OUTPUT): 3300mA @ 5V

OPERATION:  fully automatic

  • Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
  • Turns on if vehicle battery voltage increases above 13.3V.
  • 2 LED battery monitor
  • Short circuit, overheat, over-voltage protection. O-31 battery lead includes in-line fuse.

OPERATION (Voltage):

  • USB ON - 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
  • USB 1 HOUR - 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
  • STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
  • AGM / LFP MONITOR - LED blink every 5 seconds if battery charge  ≥ 50% , sufficient to start vehicle engine.
    • LED LFP: 13.1V to 13.3V.
    • LED AGM: 12.4V to 13.1V.
    • NO LED < 12.4V.
  • OFF ≤ 9V

CABLE RATING: SPT-1

USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures

STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket; use any USB cable, seals when inserted.
