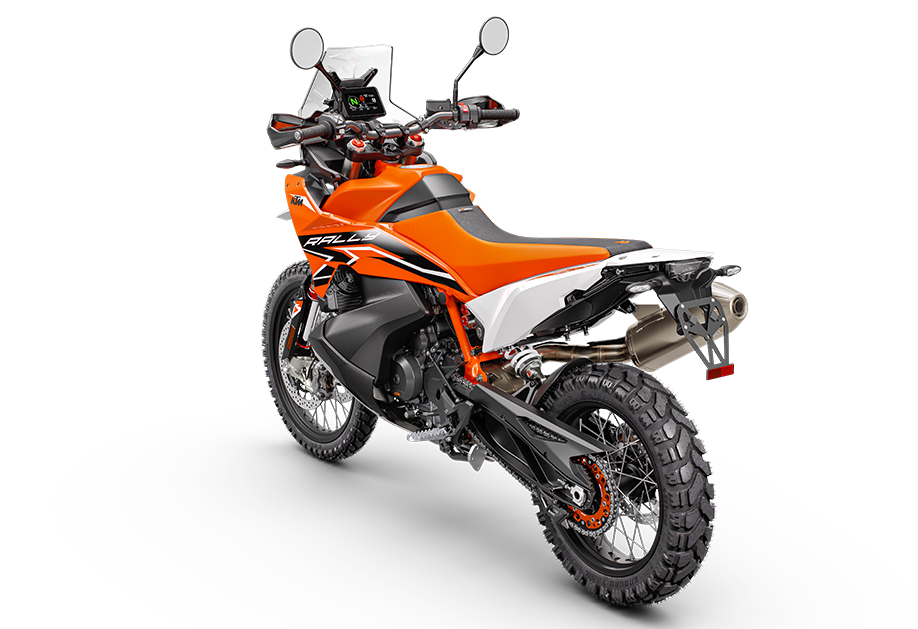

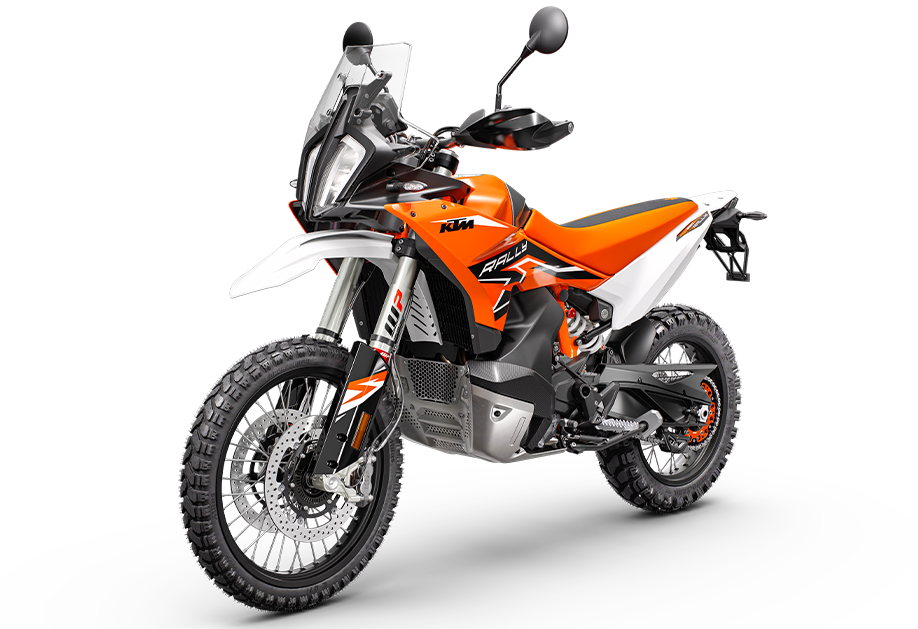

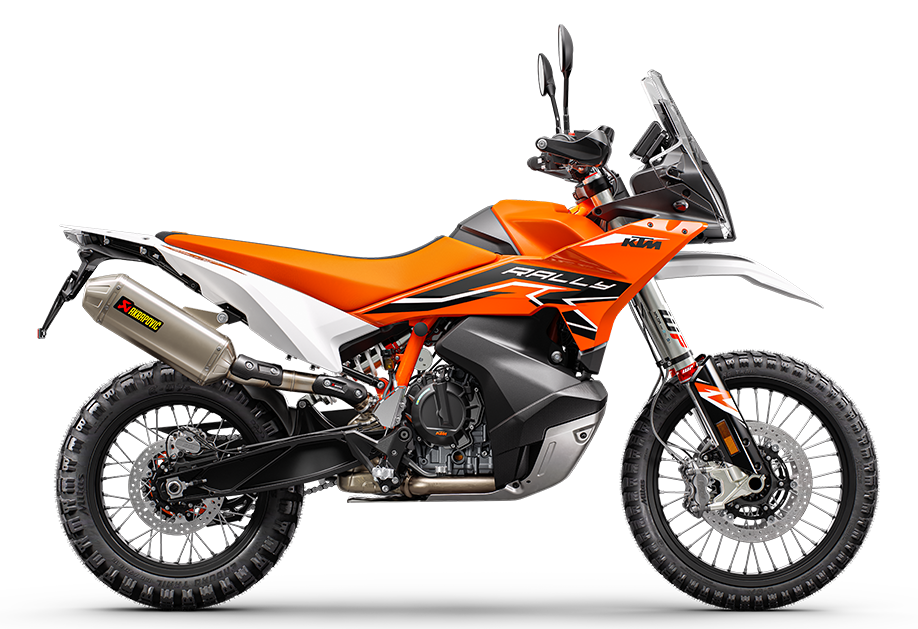

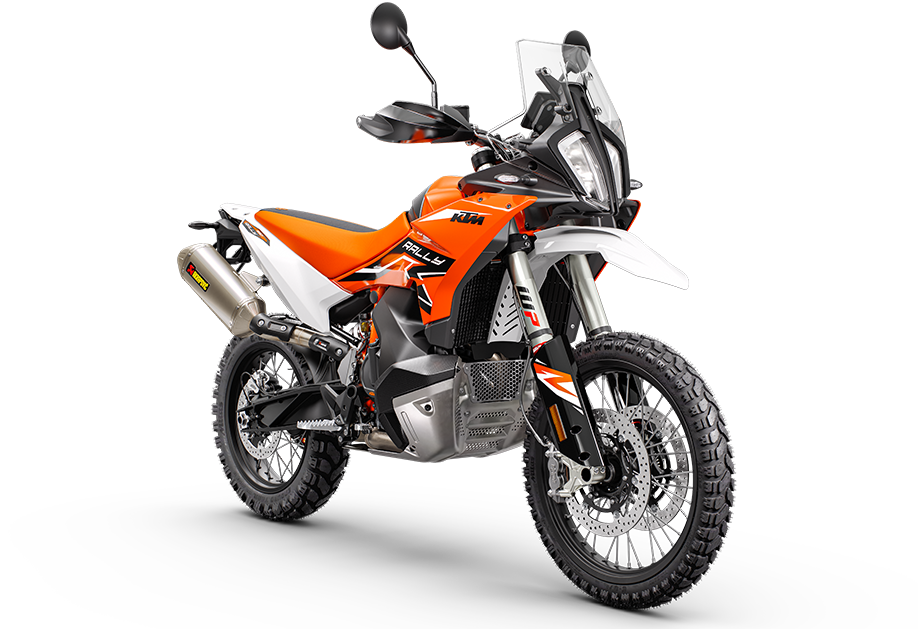

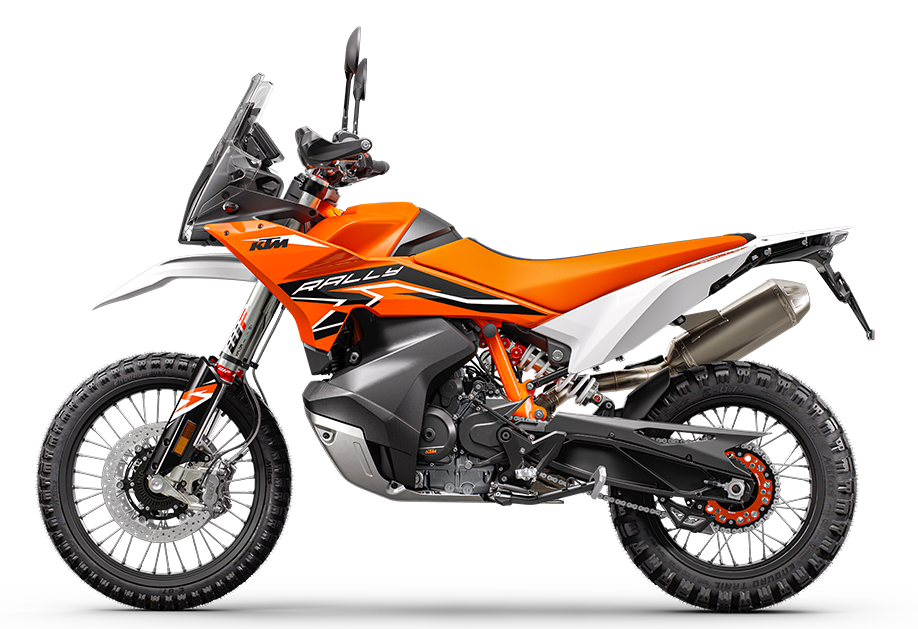

KTM 890 Adventure R Rally 2024

Limited to only 700 worldwide, the all-Austrian-made 2024 KTM 890 ADVENTURE R RALLY rips into the mid-weight adventure landscape with all the rigor of a READY TO RACE Dakar machine. Thanks to race-spec WP XPLOR PRO Suspension, heavy-duty rims and a lightweight Akrapovic slip-on fitted as standard, the destination comes second. With its unmatched ability to dispatch everything from gravel switchbacks to single tracks, the KTM 890 ADVENTURE R RALLY sets the new standard when it comes to serious offroad travel capabilities.

ENGINE

  • TORQUE 100 Nm
  • TRANSMISSION 6-speed
  • COOLING Liquid cooled
  • POWER IN KW 77 kW
  • STARTER Electric starter
  • STROKE 68.8 mm
  • BORE 90.7 mm
  • CLUTCH PASC™ antihopping clutch, mechanically operated
  • CO2 EMISSIONS 103 g/km
  • DISPLACEMENT 889 cm³
  • EMS Bosch EMS with RBW
  • DESIGN 2-cylinder, 4-stroke, parallel twin
  • FUEL CONSUMPTION 4.4 l/100 km
  • LUBRICATION Forced oil lubrication with 2 oil pumps

CHASSIS

  • TANK CAPACITY (APPROX.) 20 l
  • ABS Bosch 9.3 MP (incl. Cornering-ABS and off-road mode)
  • FRONT BRAKE DISC DIAMETER 320 mm
  • REAR BRAKE DISC DIAMETER 260 mm
  • FRONT BRAKE 2x radially mounted 4 piston caliper
  • REAR BRAKE 2 piston floating caliper
  • CHAIN 520 X-Ring
  • FRAME DESIGN Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
  • FRONT SUSPENSION WP XPLOR PRO 7548
  • GROUND CLEARANCE 303 mm
  • REAR SUSPENSION XPLOR PRO 6746
  • SEAT HEIGHT 910 mm
  • STEERING HEAD ANGLE 63.8 °
  • SUSPENSION TRAVEL (FRONT) 270 mm
  • SUSPENSION TRAVEL (REAR) 270 mm
