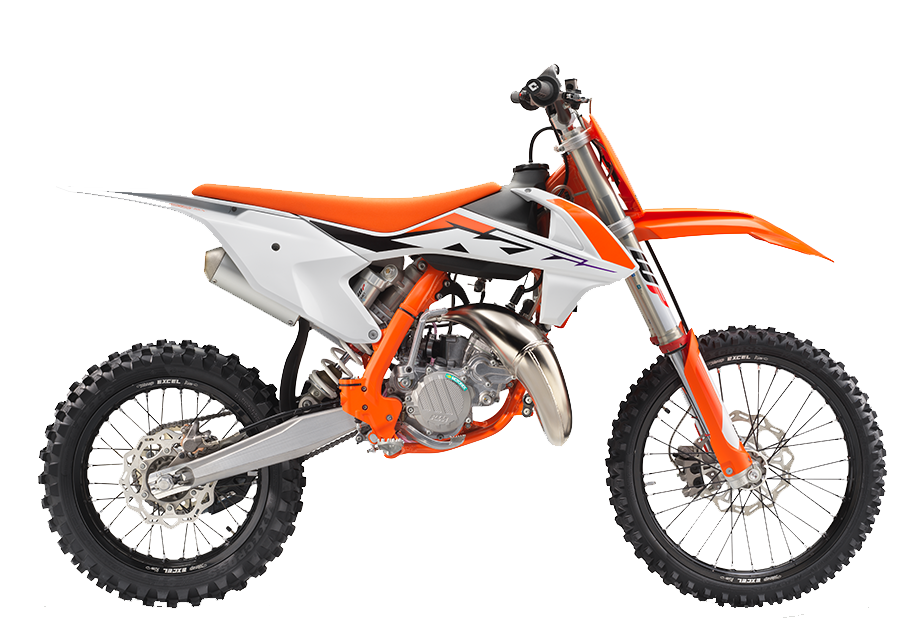

KTM 85 SX 19/16 2024

If you're reading this, then it is safe to say things have become serious. The 2024 KTM 85 SX - in big wheel guise - is the first real step into the big leagues. Lightweight, powerful and reliable, the KTM 85 SX boasts real big bike components in scaled-down 85 cc geometry, providing the ultimate kickstart to any young racing career.

ENGINE

  • TRANSMISSION 6-speed
  • STARTER Kickstarter
  • STROKE 40.8 mm
  • BORE 47 mm
  • CLUTCH Wet, multi-disc clutch, Formula hydraulics
  • DISPLACEMENT 84.9 cm³
  • EMS MEDJ digital
  • DESIGN 1-cylinder, 2-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL) 68 kg
  • TANK CAPACITY (APPROX.) 5.2 l
  • FRONT BRAKE DISC DIAMETER 240 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 1/2 x 5/16"
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION XACT 43 WP Upside-Down fork, Ø 43 mm
  • GROUND CLEARANCE 362 mm
  • REAR SUSPENSION XACT WP PDS mono shock
  • SEAT HEIGHT 890 mm
  • STEERING HEAD ANGLE 66 °
  • SUSPENSION TRAVEL (FRONT) 278 mm
  • SUSPENSION TRAVEL (REAR )305 mm
