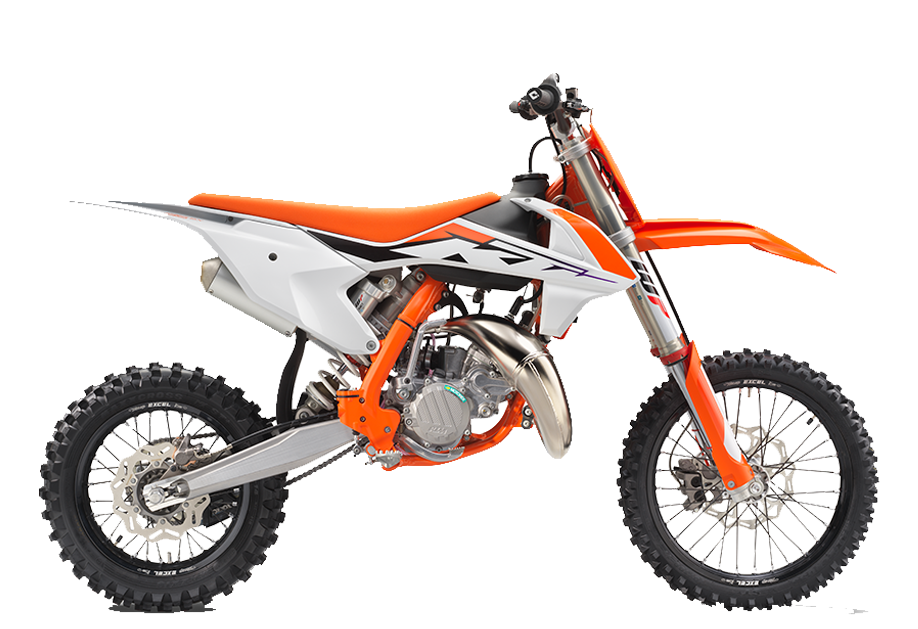

KTM 85 SX 17/14 2024

If you're reading this, then it is safe to say things have become serious. The 2024 KTM 85 SX is the first real step into the big leagues. Lightweight, powerful and reliable, the KTM 85 SX boasts real big bike components in scaled-down 85 cc geometry, providing the ultimate kickstart to any young racing career.

ENGINE

  • Transmission

 6-speed

  • Starter

 Kickstarter

  • Stroke

 40.8 mm

  • Bore

 47 mm

  • Clutch

 Wet, multi-disc clutch, Formula hydraulics

  • Displacement

 84.9 cm3

  • EMS

 MEDJ digital

  • Design

 1-cylinder, 2-stroke engine

CHASSIS

  • Weight (Without Fuel)

 67 kg

  • Tank Capacity (Approx.)

 5.2 l

  • Front Brake Disic Diameter

 240 mm

  • Rear Brake  Disic Diameter

 220 mm

  • Front brake

 Disc brake

  • Rear brake

 Disc brake

  • Chain

 1/2 x 5/16"

  • Frame Design

Central double-cradle-type 25CrMo4 steel

  • Front Suspension

 XACT 43 WP Upside-Down fork, Ø 43 mm

  • Ground Clearance

 336 mm

  • Rear Suspension

 XACT WP PDS mono shock

  • Seat height

 850 mm

  • Steering head angle

 66 °

  • Suspension Travel (Front)

 278 mm

  • Suspension Travel (Rear)

 305 mm
