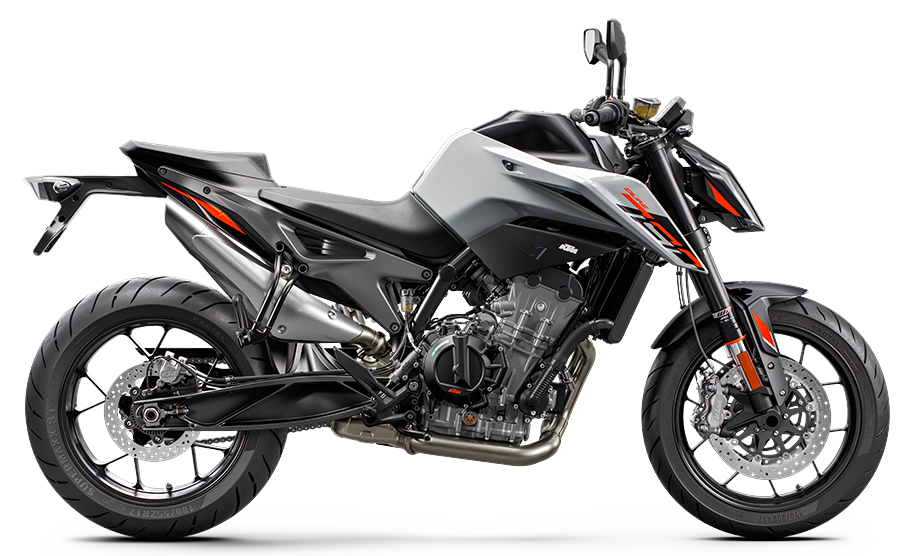

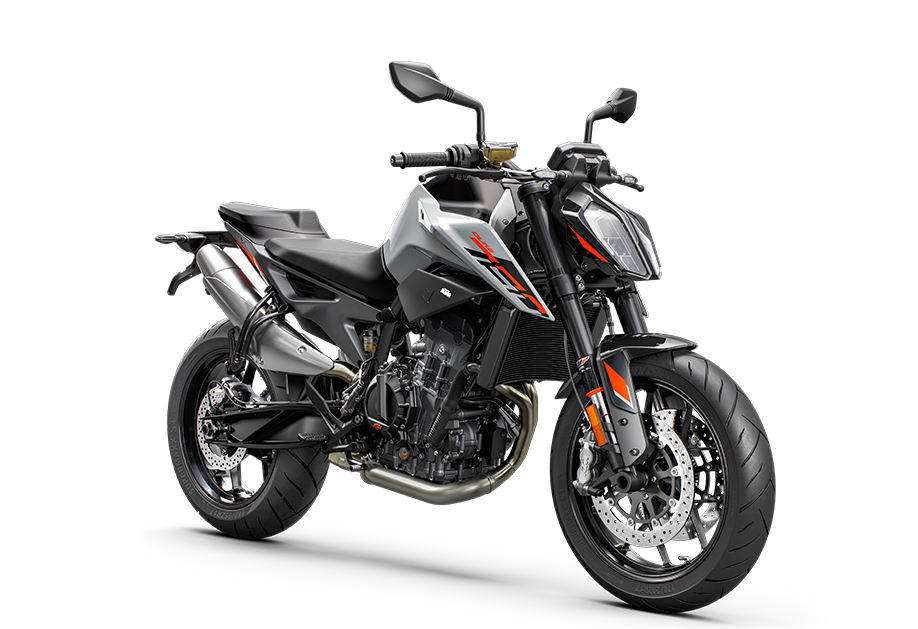

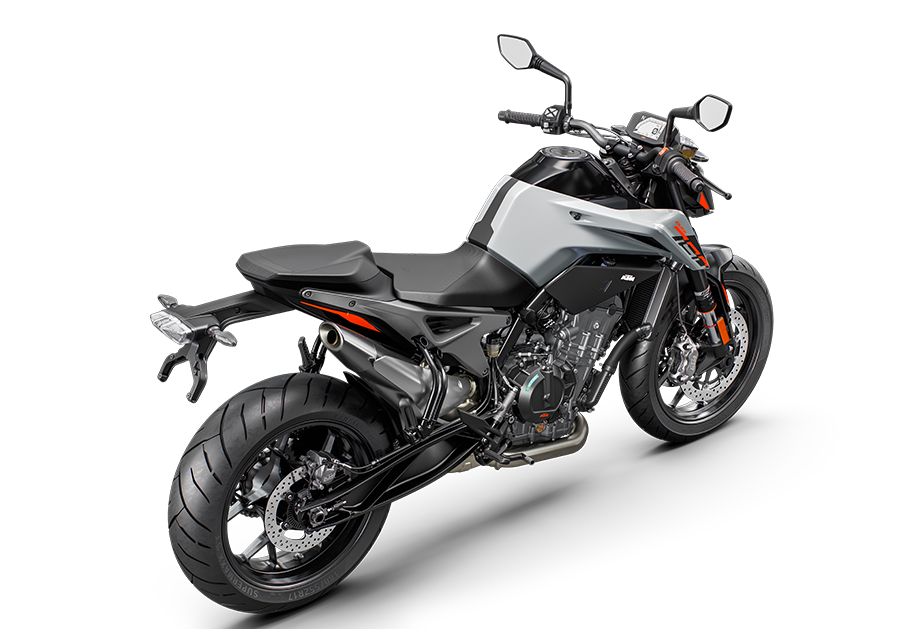

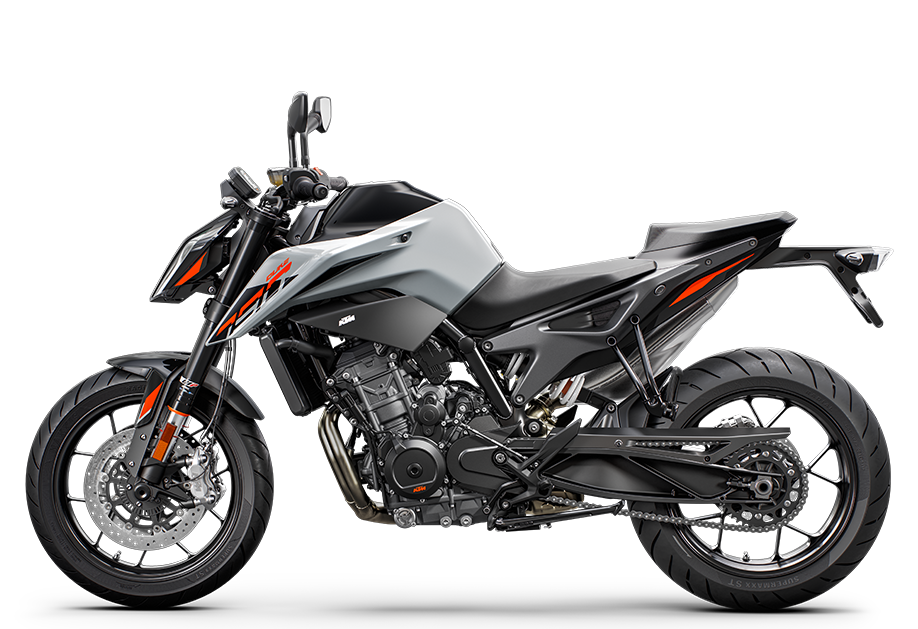

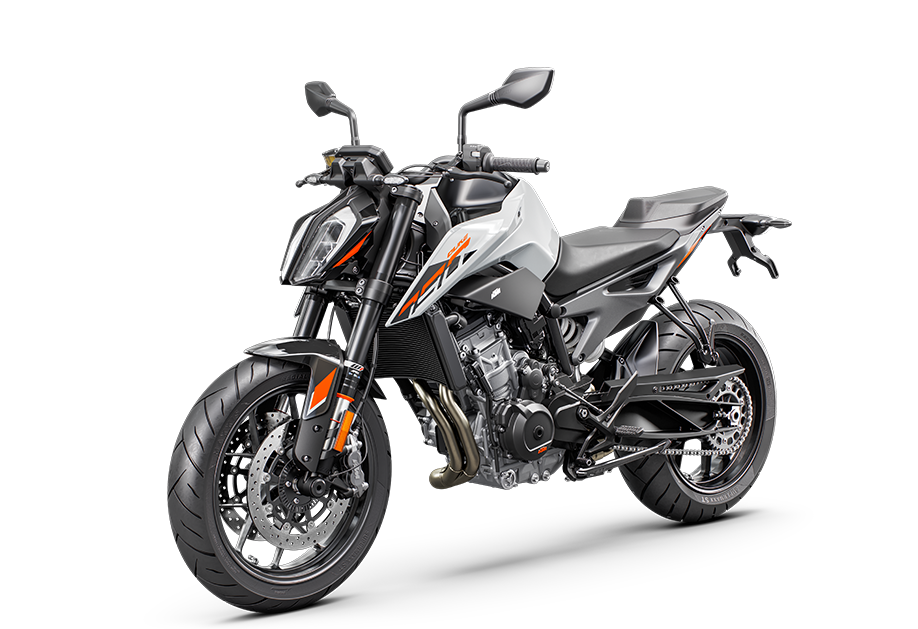

The KTM 790 DUKE has a reputation. Not only is it known to be devastatingly accurate, with the unmatched agility you'd expect from a single, merged with the meaty punch of a twin, but for being a no-nonsense street-brawler. Boasting an uncompromised 799 cc LC8c parallel twin motor nestled into one of the lightest and most compact chassis around, the KTM 790 DUKE is all about being fast where it counts - in the corners.

This motorcycle is designed and developed in Austria, and assembled in China.

Engine

  • Torque87 Nm
  • Transmission6-speed
  • Battery capacity10 Ah
  • CoolingLiquid cooled
  • Power in KW70 kW
  • StarterElectric starter
  • Stroke65.7 mm
  • Bore88 mm
  • ClutchPASC™ antihopping clutch, mechanically operated
  • Displacement799 cm³
  • EMSBosch EMS with RBW
  • Design2-cylinder, 4-stroke, parallel twin
  • Fuel-mixture generationDKK Dellorto (Throttle body 46mm)
  • LubricationForced oil lubrication with 2 oil pumps

Chassis

  • Weight (without fuel)174 kg
  • Tank capacity (approx.)14 l
  • Wheelbase1475 mm
  • ABSBosch 9.1 MP (incl. Cornering-ABS and super moto mode)
  • Front brake disc diameter300 mm
  • Rear brake disc diameter240 mm
  • Front brake2x radially mounted 4 piston caliper
  • Rear brakeSingle-piston floating calliper, brake disc
  • Chain520 X-Ring
  • Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
  • Front suspensionWP APEX 43
  • Ground clearance186 mm
  • HandlebarAluminium Ø 28/22 mm
  • Rear suspensionWP APEX - Monoshock
  • Seat height825 mm
  • SilencerStainless steel primary and secondary silencer
  • Steering head angle66 °
  • Rear subframe designAluminium, powder-coated
  • Suspension travel (front)140 mm
  • Suspension travel (rear)150 mm
