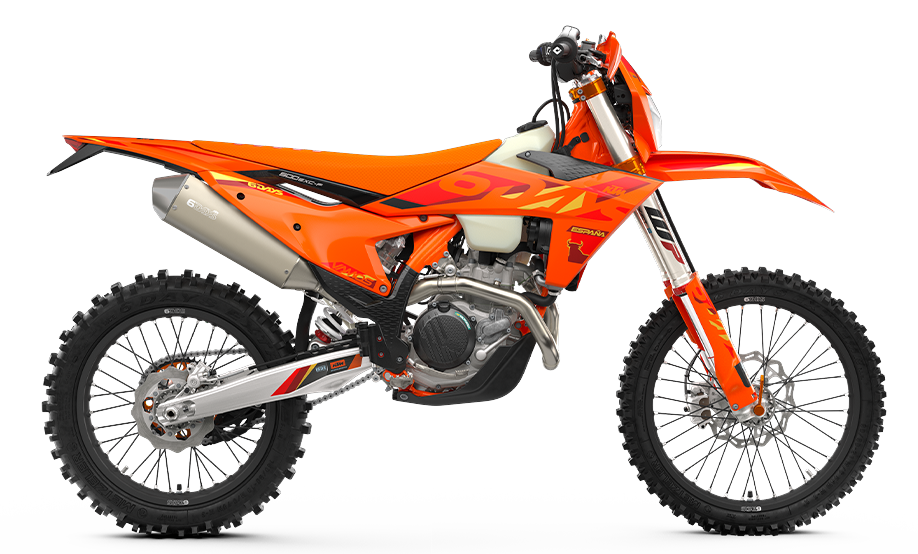

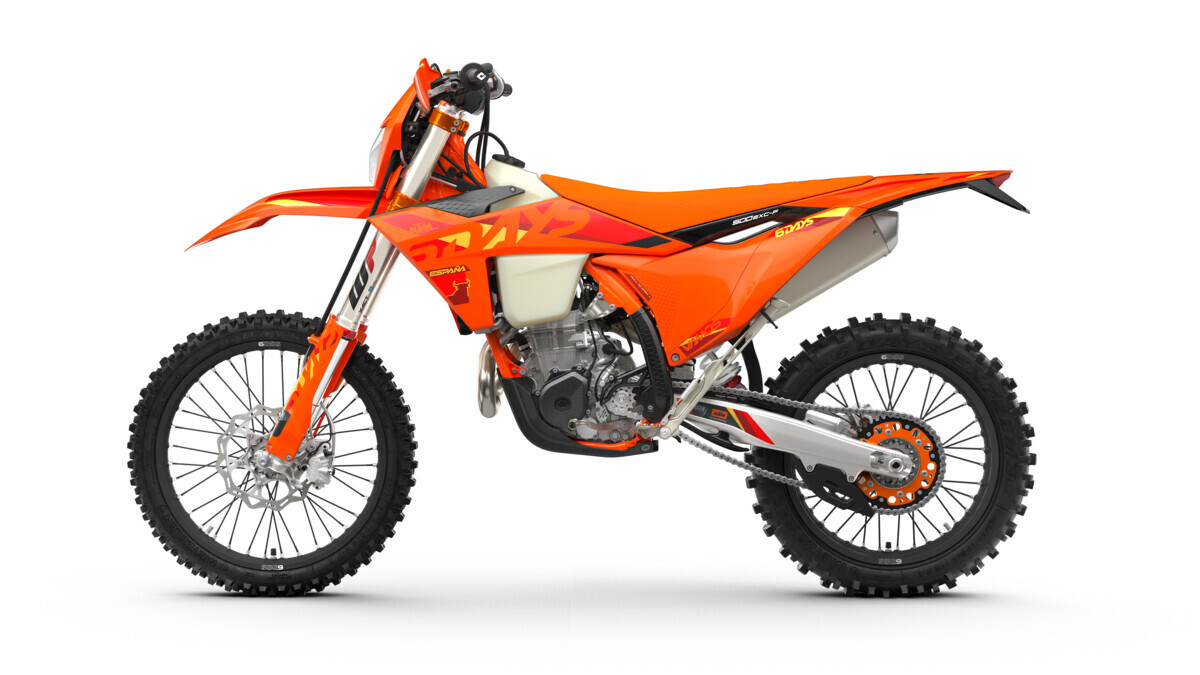

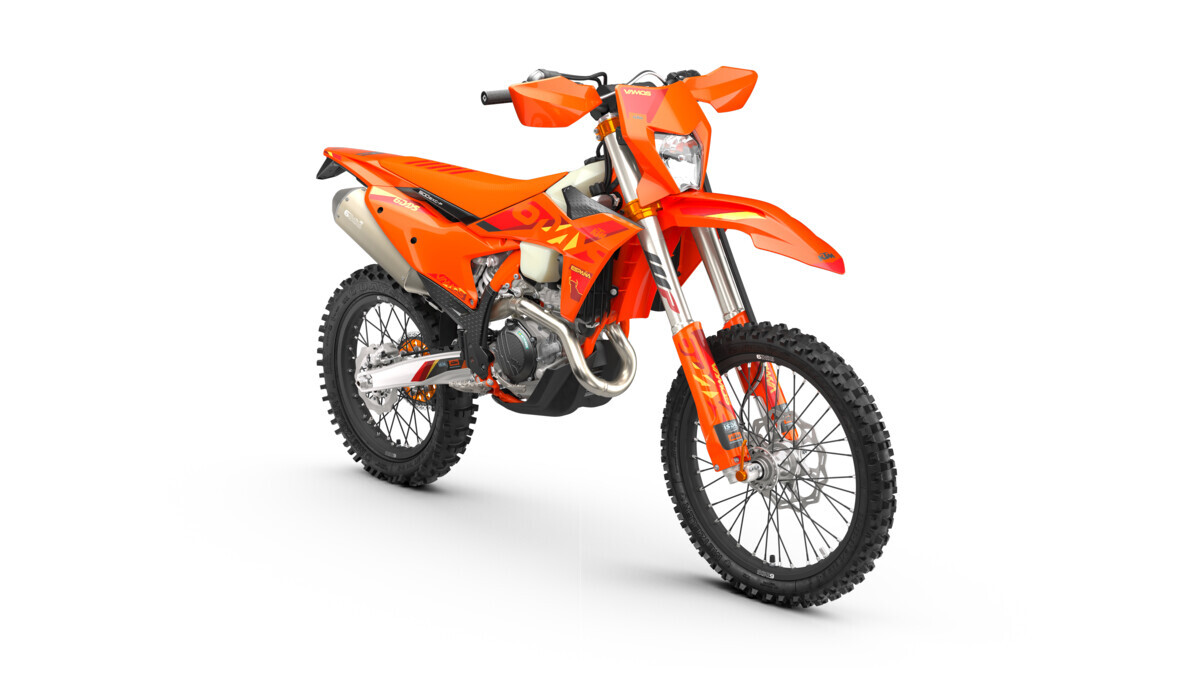

Few machines can hold their own against the KTM 500 EXC-F SIX DAYS. Power, torque, unmatched handling, and pure 4-stroke fury puts this Enduro weapon in a class all of its own. Packing a punch, complete with closed-cartridge suspension, and an electronics package that puts its rivals to shame, the 2025 KTM 500 EXC-F SIX DAYS is ready to take on any challenge

Engine

  • Primary drive29:72
  • Transmission6-speed
  • Secondary gear ratio14:50
  • StarterElectric starter
  • Stroke72 mm
  • Bore95 mm
  • ClutchWet, DDS multi-disc clutch, Brembo hydraulics
  • Compression ratio12.75
  • Displacement510.9 cm³
  • EMSKeihin EMS
  • Design1-cylinder, 4-stroke engine
  • Fuel-mixture generationKeihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)108.7 kg
  • Tank capacity (approx.)8.5 l
  • Wheelbase1.489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brakeDisc brake
  • Rear brakeDisc brake
  • Chain520 X-Ring
  • Frame designCentral double-cradle-type 25CrMo4 steel
  • Front suspensionWP XACT-USD, Ø 48 mm
  • Ground clearance347 mm
  • HandlebarNeken, aluminium Ø 28/22 mm
  • Rear suspensionWP XPLOR shock absorber with PDS
  • Seat height963 mm
  • SilencerAluminium
  • Steering head angle63.9 °
  • Rear subframe designAluminum-reinforced polyamide
  • Suspension travel (front)300 mm
  • Suspension travel (rear)310 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels21 x 1.60"; 18 x 2.15"
