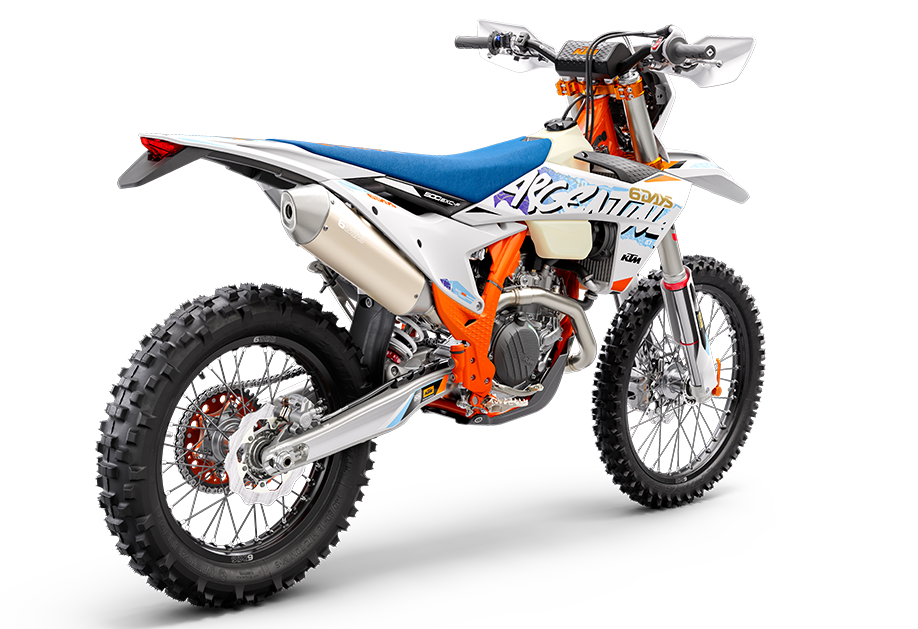

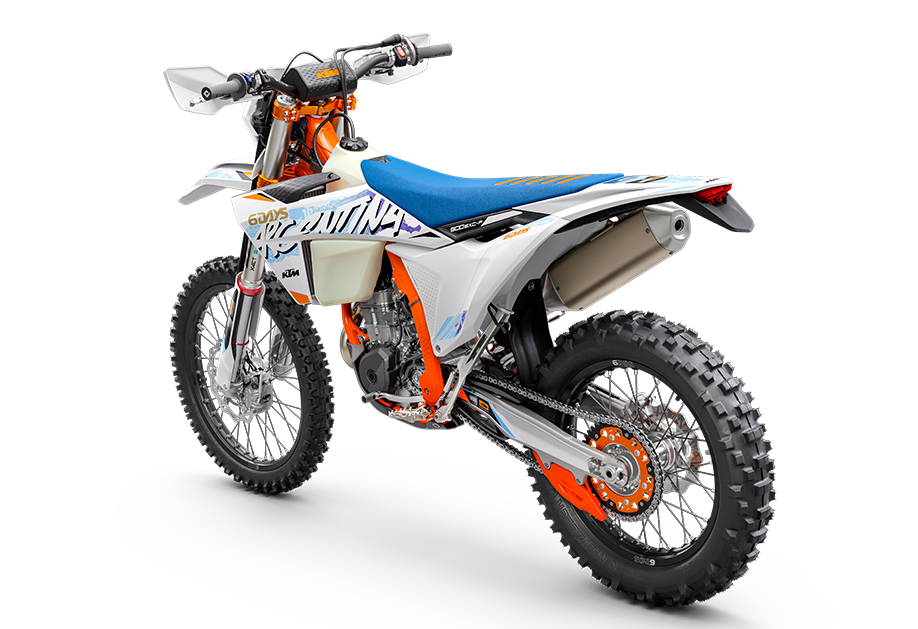

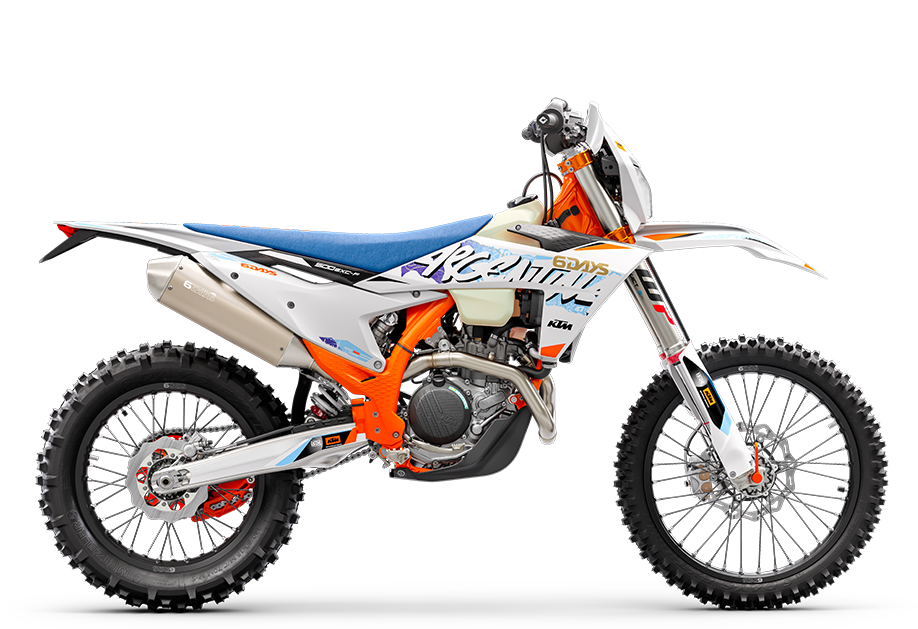

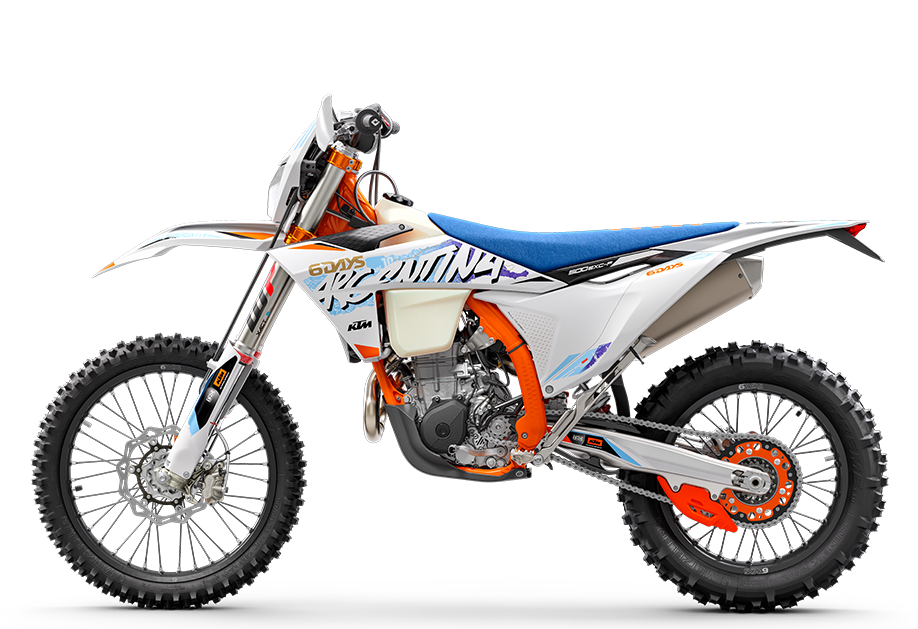

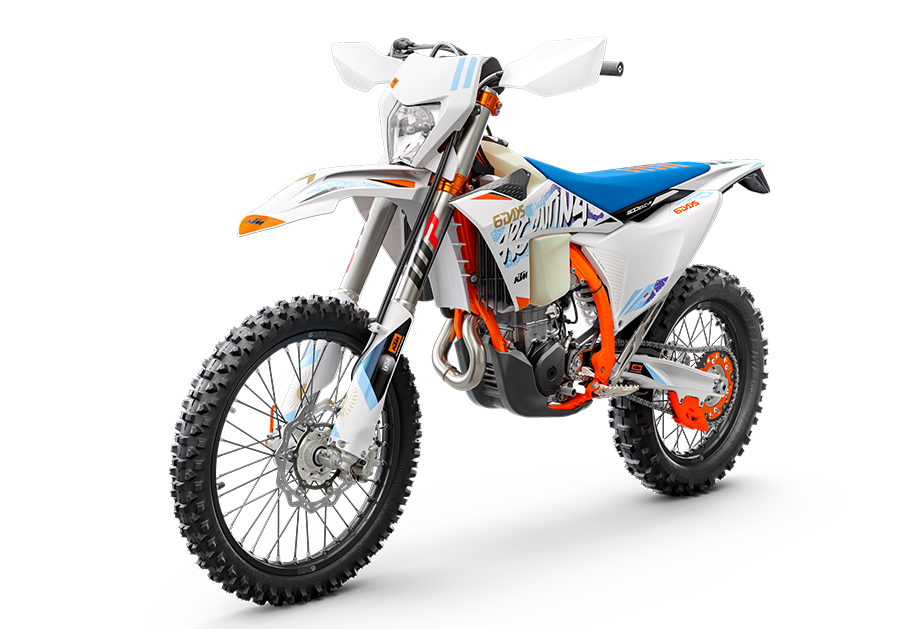

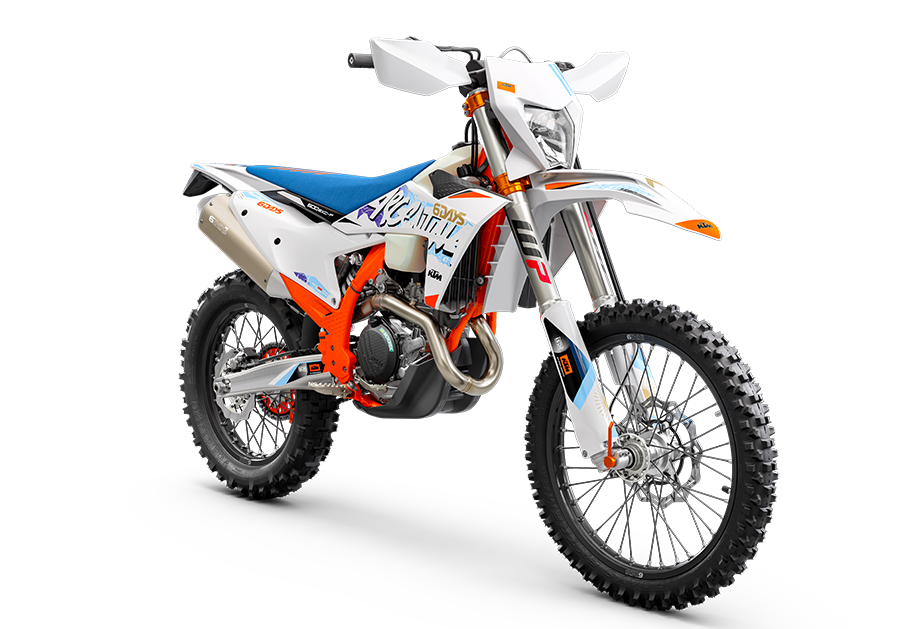

KTM 500 EXC-F 6 DAY 2024

There are few machines that can hold their own against the KTM 500 EXC-F SIX DAYS. Power, torque, unmatched handling, and pure 4-stroke fury puts this Enduro weapon in a class all of its own. Packing a 64-horsepower punch in an all-new frame, complete with closed-cartridge suspension, and an electronics package that puts its rivals to shame, the 2024 KTM 500 EXC-F SIX DAYS is ready to take on any challenge.

ENGINE

  • TRANSMISSION 6-speed
  • STARTER Electric starter
  • STROKE 72 mm
  • BORE 95 mm
  • CLUTCH Wet, DDS multi-disc clutch, Brembo hydraulics
  • DISPLACEMENT 510.9 cm³
  • EMS Keihin EMS
  • DESIGN 1-cylinder, 4-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL) 108.7 kg
  • TANK CAPACITY (APPROX.) 8.5 l
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 520 X-Ring
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION WP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE 347 mm
  • REAR SUSPENSION WP Xplor PDS shock absorber
  • SEAT HEIGHT 963 mm
  • STEERING HEAD ANGLE 63.9 °
  • SUSPENSION TRAVEL (FRONT) 300 mm
  • SUSPENSION TRAVEL (REAR) 310 mm
