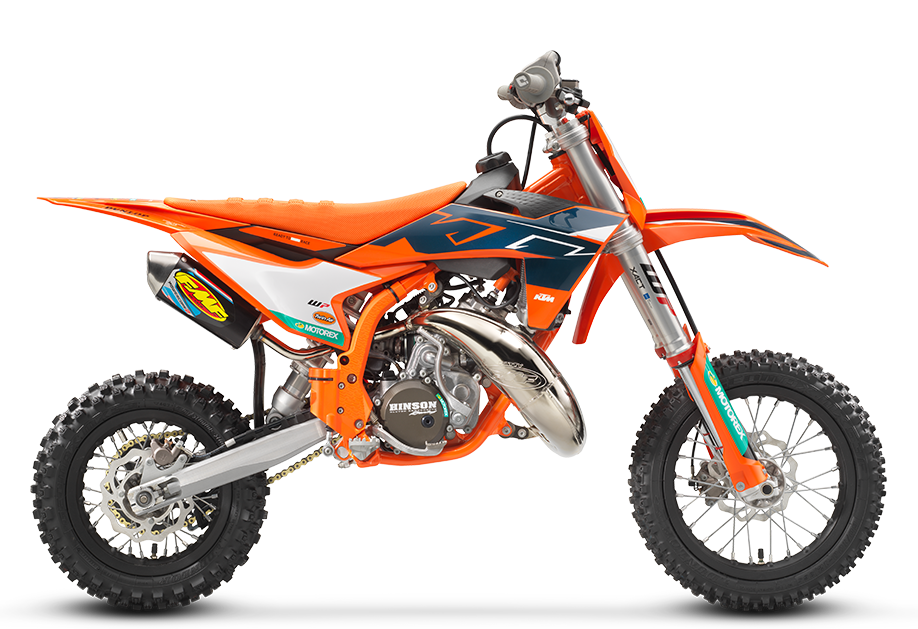

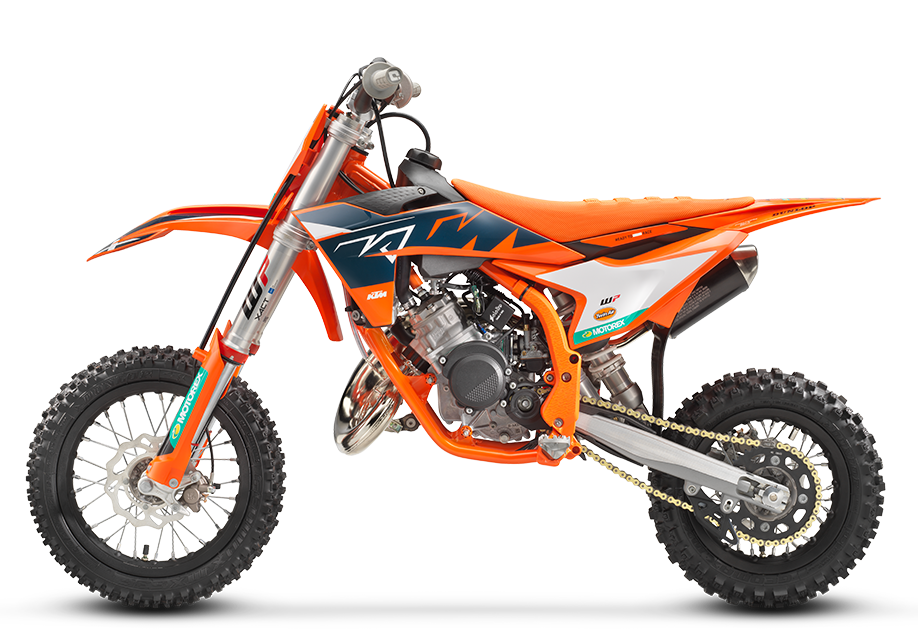

KTM 50 SX Factory Edition 2024

The 2024 KTM 50 SX FACTORY EDITION is ready to blast into the highly competitive 50cc class with proper KTM FACTORY RACING credentials. It's undeniably READY TO RACE, built around an advanced steel frame, housing a powerful engine, and boasting leading components such as the 35mm WP XACT AER fork, a WP XACT monoshock, and a hydraulic Formula brake system. All this, along with key similarities with the full-sized motocross range, superior levels of quality, and revolutionary height adjustability, makes it the most premium 50cc motocross bike available on the market.

The 2024 KTM 50 SX FACTORY EDITION features a KTM Red Bull Factory Racing-inspired color scheme, with much of the bodywork finished in orange with blue accents - much like those found on the full-size Factory Editions. Of course, sponsor logos, grey ODI lock-on grips, FMF Exhaust and an orange factory seat rounds off the package, making this 50cc weapon look as fast as it gets off the line.

ENGINE

  • TRANSMISSION Single-speed automatic
  • STARTER Kickstarter
  • STROKE 40.7 mm
  • BORE 39.5 mm
  • CLUTCH Centrifugal clutch (adjustable)
  • DISPLACEMENT 49.9 cmÂł
  • EMS Seletra 2p D36
  • DESIGN 1-cylinder, 2-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL) 42.8 kg
  • TANK CAPACITY (APPROX.) 2.3 l
  • FRONT BRAKE DISC DIAMETER 160 mm
  • REAR BRAKE DISC DIAMETER 160 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 415, Non-sealed
  • FRAME DESIGN Chrome-molybdenum steel central-tube frame
  • FRONT SUSPENSION XACT 35 WP Upside-Down fork, Ø 35 mm
  • GROUND CLEARANCE 233 mm
  • REAR SUSPENSION XACT WP PDS mono shock
  • SEAT HEIGHT 653 mm
  • STEERING HEAD ANGLE 66 °
  • SUSPENSION TRAVEL (FRONT) 200 mm
  • SUSPENSION TRAVEL (REAR) 190 mm
