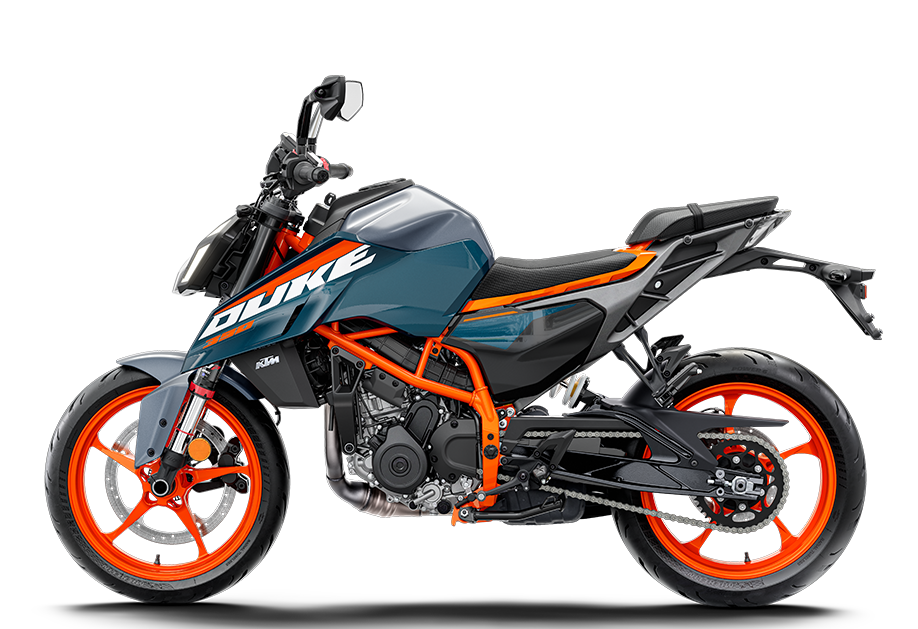

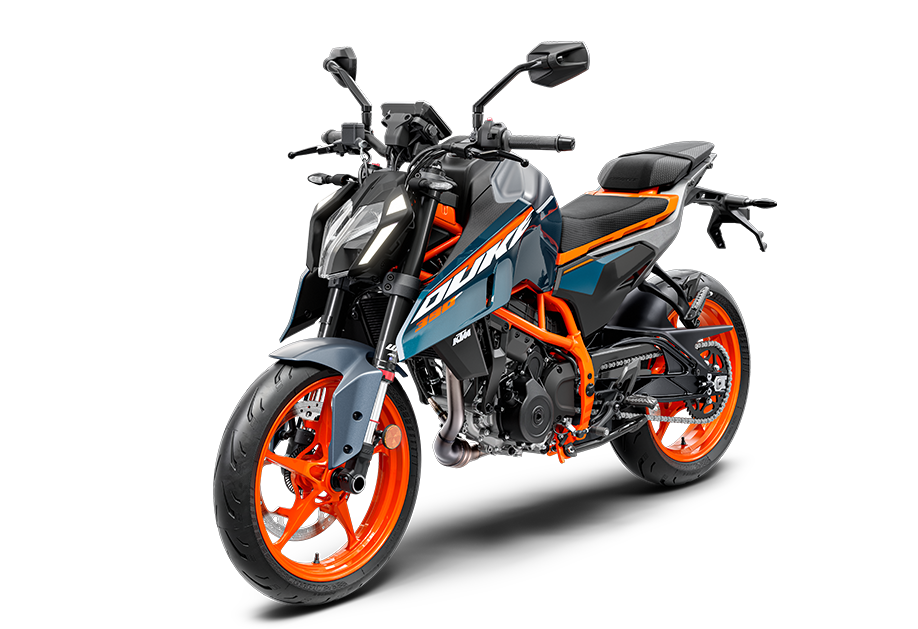

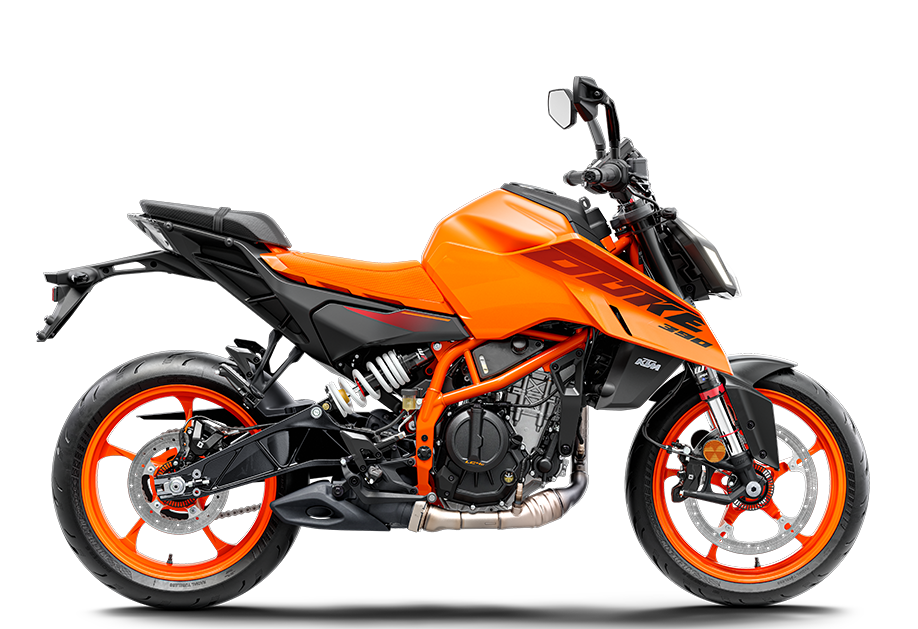

KTM 390 Duke 2024

With the all-new 2024 KTM 390 DUKE, the world around you becomes your very own gymkhana. Bringing exceptional agility, lightweight handling, and punchy performance to the street, this middle-weight bruiser is ready to take on any twists or turns. Packing state-of-the-art rider aids, an all-new frame, adjustable suspension - and aggressive new looks - the 2024 KTM 390 DUKE wears the crown when it comes to carving up the asphalt.

ENGINE

  • TORQUE 39 Nm
  • TRANSMISSION 6-speed
  • BATTERY CAPACITY 8 Ah
  • COOLING Liquid cooled
  • POWER IN KW 33 kW
  • STARTER Electric starter
  • STROKE 64 mm
  • BORE 89 mm
  • CLUTCH PASC™ antihopping clutch, mechanically operated
  • DISPLACEMENT 398.7 cm³
  • EMS Bosch EMS with RBW
  • DESIGN 1-cylinder, 4-stroke engine
  • LUBRICATION Wet sump

CHASSIS

  • ABS Bosch 9.3 MP Two Channel (Supermoto ABS)
  • FRONT BRAKE DISC DIAMETER 320 mm
  • REAR BRAKE DISC DIAMETER 240 mm
  • FRONT BRAKE Four-piston radial fixed calliper, brake disc
  • REAR BRAKE 2 piston floating caliper
  • CHAIN 520 X-Ring
  • FRAME DESIGN Steel trellis frame, powder coated
  • FRONT SUSPENSION WP APEX 43
  • REAR SUSPENSION WP APEX - Monoshock
  • SEAT HEIGHT 820 mm
  • SUSPENSION TRAVEL (FRONT) 150 mm
  • SUSPENSION TRAVEL (REAR) 150 mm
