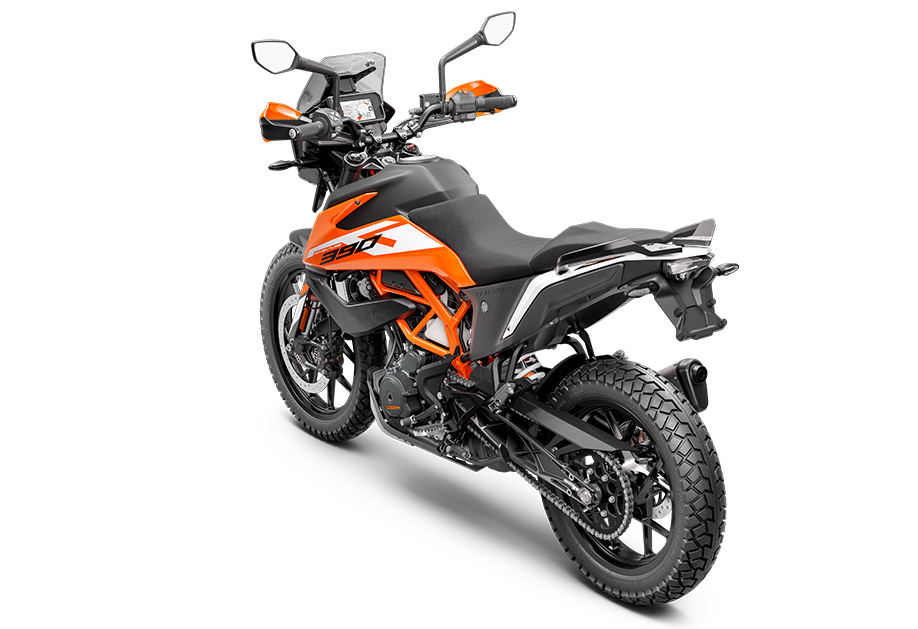

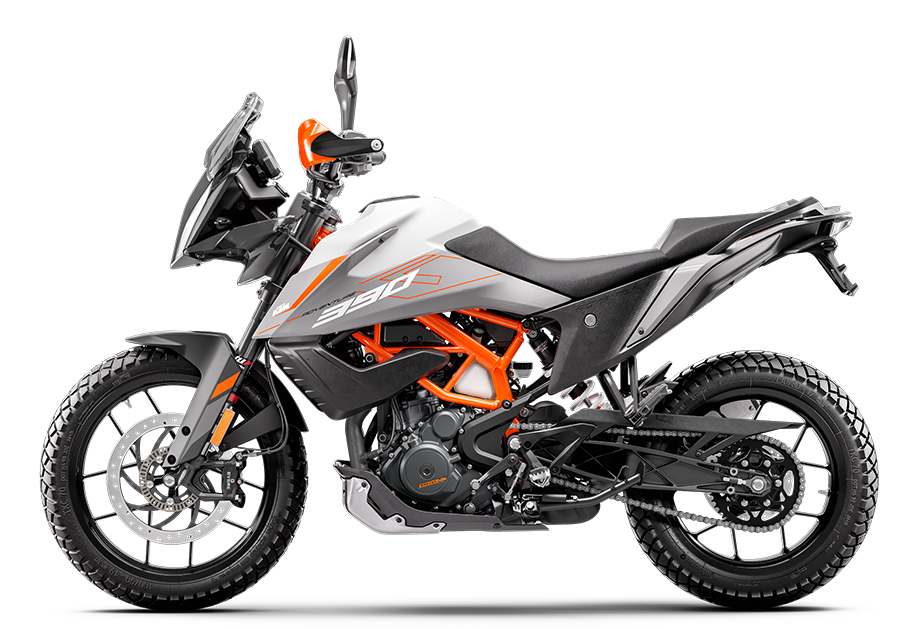

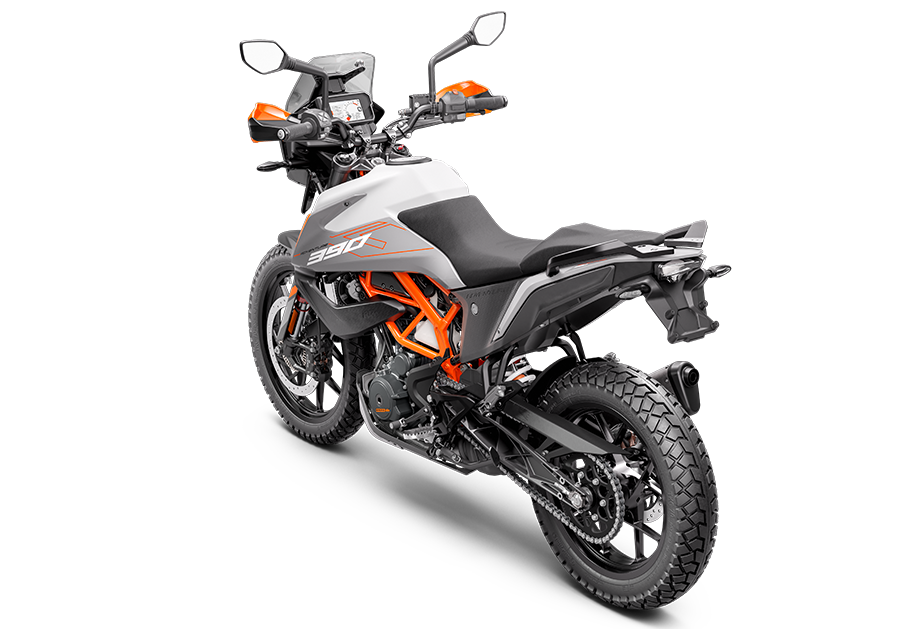

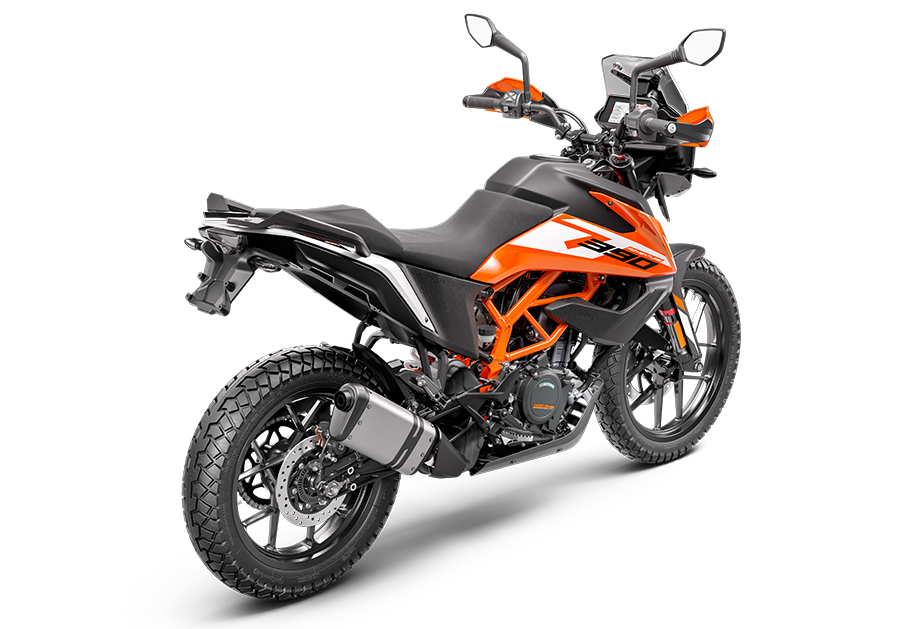

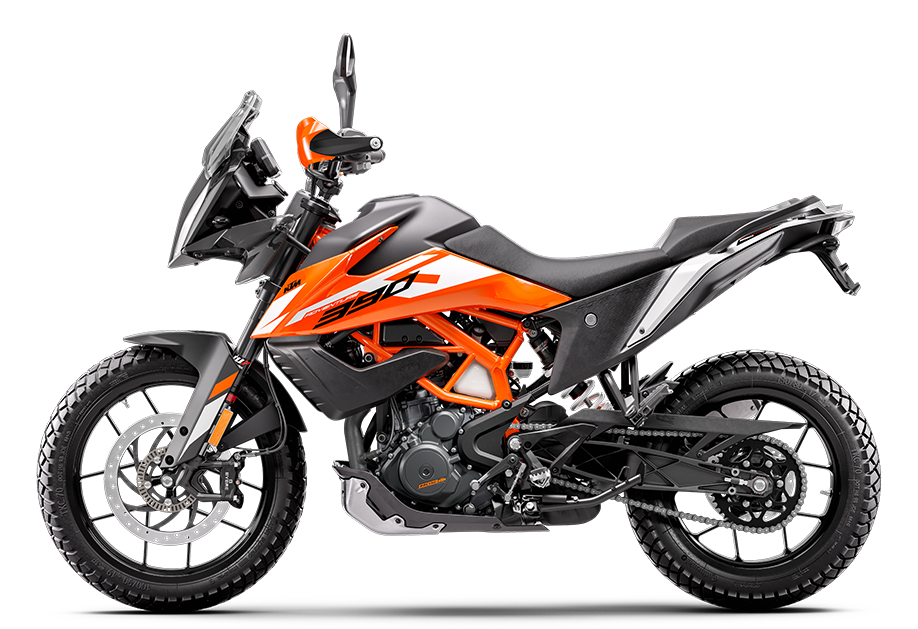

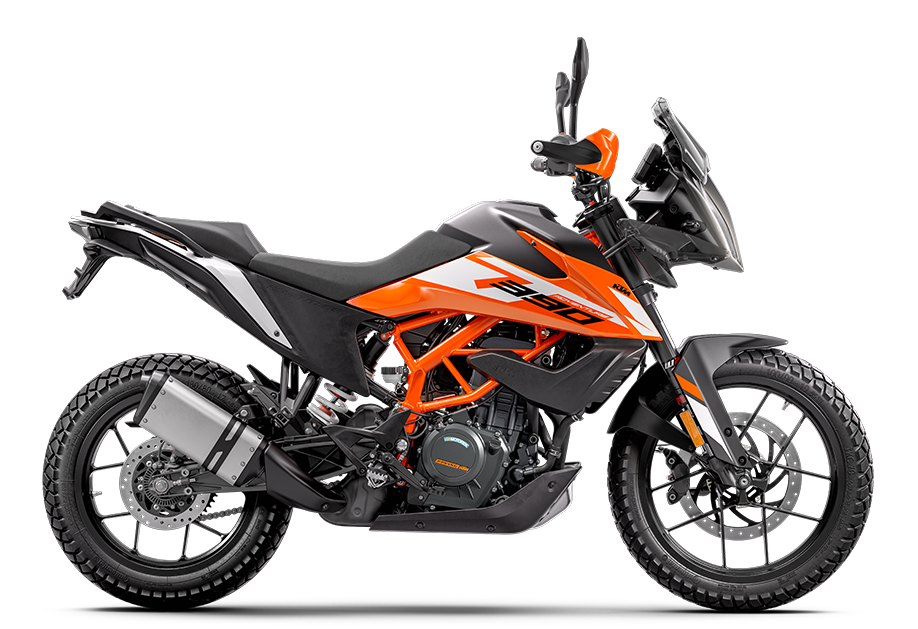

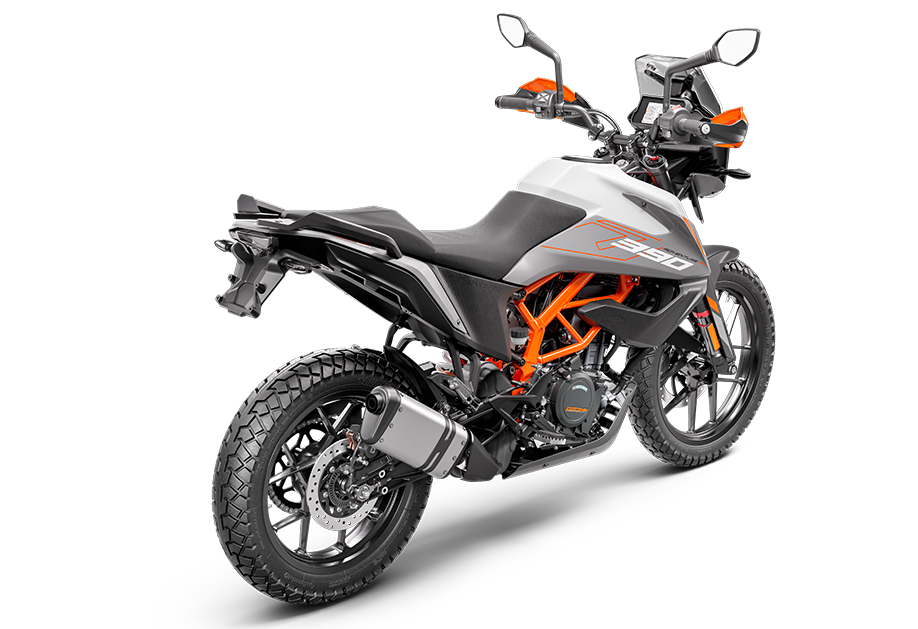

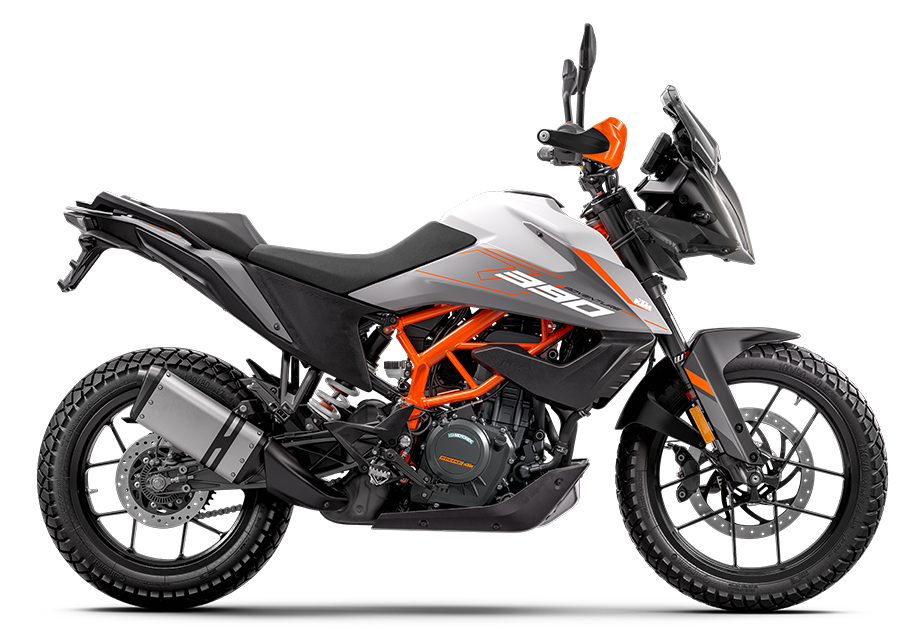

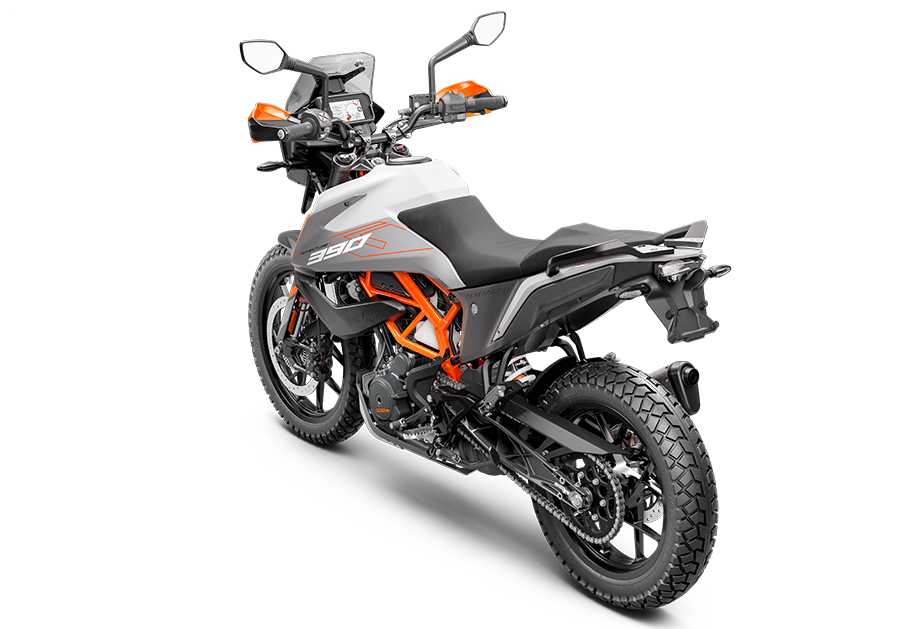

KTM 390 Adventure 2024

Merging all-road versatility and proven reliability with real-world performance, The 2024 KTM 390 ADVENTURE makes heading on an adventure an everyday possibility. Powered by a proven 373 cc powerplant churning out 44 HP via a 6-speed gearbox, a class-leading chassis, and a 400 km tank range thanks to a 14.5-litre tank, it hits the road with purposeful intent. Whats more, adjustable 43 mm WP APEX forks, 170 mm of wheel travel, OFFROAD MODE, and the option of 19/17" heavy-duty tubed spoked wheels, mean it is perfectly suited to the trail too. Download the full technical data sheet at the bottom for more info.

ENGINE

  • TORQUE 37 Nm
  • TRANSMISSION 6-speed
  • COOLING Liquid cooled
  • POWER IN KW 32 kW
  • STARTER Electric starter
  • STROKE 60 mm
  • BORE 89 mm
  • CLUTCH PASC™ antihopping clutch, mechanically operated
  • CO2 EMISSIONS 78 g/km
  • DISPLACEMENT 373.2 cm³
  • EMS Bosch EMS with RBW
  • DESIGN 1-cylinder, 4-stroke engine
  • FUEL CONSUMPTION 3.37 l/100 km
  • LUBRICATION Wet sump

CHASSIS

  • TANK CAPACITY (APPROX.) 14.5 l
  • ABS Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
  • FRONT BRAKE DISC DIAMETER 320 mm
  • REAR BRAKE DISC DIAMETER 230 mm
  • FRONT BRAKE Four-piston radial fixed calliper
  • REAR BRAKE Single-piston floating calliper, brake disc
  • CHAIN 520 X-Ring
  • DRY WEIGHT 161 kg
  • FRAME DESIGN Steel trellis frame, powder coated
  • FRONT SUSPENSION WP APEX 43
  • REAR SUSPENSION WP APEX - Monoshock
  • SEAT HEIGHT 855 mm
  • STEERING HEAD ANGLE 63.5 °
  • SUSPENSION TRAVEL (FRONT) 170 mm
  • SUSPENSION TRAVEL (REAR) 177 mm
