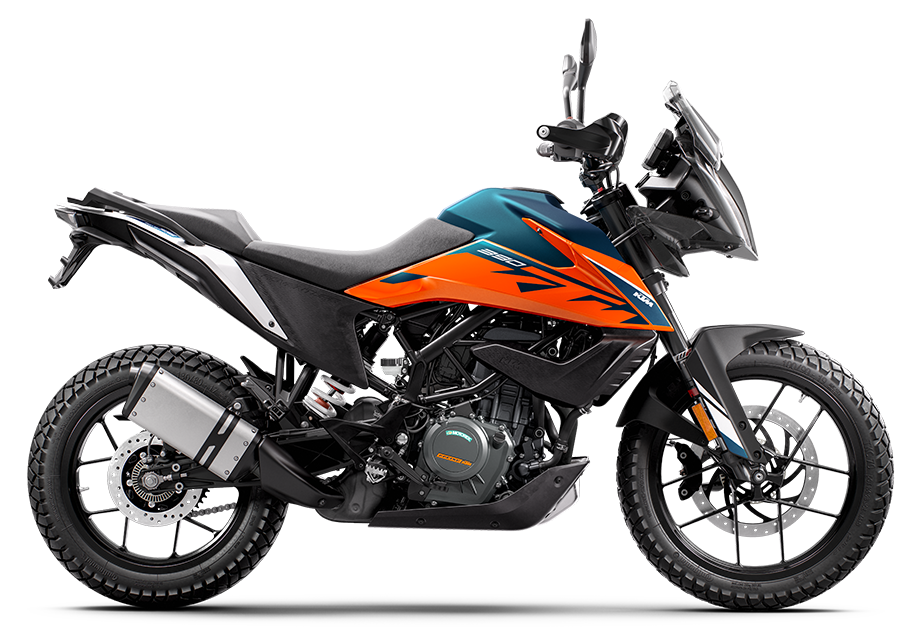

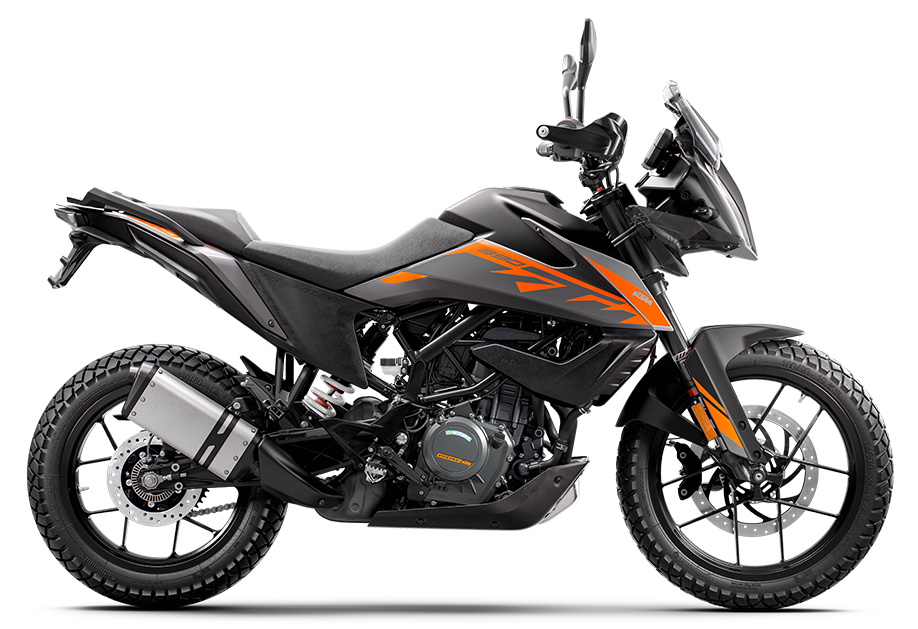

The KTM 390 ADVENTURE takes exploration further by merging all-road versatility and proven reliability with real-world performance. Built around a compact 373 cc single-cylinder powerplant with a capable, lightweight chassis and class-leading electronics, the KTM 390 ADVENTURE encourages you to find new frontiers with the unmatched capability and excitement you’d expected from a KTM ADVENTURE machine.

• class-leading electronics

• lightweight chassis

• Slipper Clutch

• EMS/Ride-BY-Wire

• WP APEX Suspension

Engine

  • Torque37 Nm
  • Transmission6-speed
  • CoolingLiquid cooled
  • Power in KW32 kW
  • StarterElectric starter
  • Stroke60 mm
  • Bore89 mm
  • ClutchPASC™ antihopping clutch, mechanically operated
  • CO2 emissions78 g/km
  • Compression ratio12.6
  • Displacement373.2 cm³
  • EMSBosch EMS with RBW
  • Design1-cylinder, 4-stroke engine
  • Fuel consumption3.37 l/100 km
  • Fuel-mixture generationBosch EFI (throttle valve 46 mm)
  • LubricationWet sump

Chassis

  • Tank capacity (approx.)14.5 l
  • Wheelbase1430 mm
  • ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
  • Front brake disc diameter320 mm
  • Rear brake disc diameter230 mm
  • Front brakeFour-piston radial fixed calliper
  • Rear brakeSingle-piston floating calliper, brake disc
  • Chain520 X-Ring
  • dry weight161 kg
  • Frame designSteel trellis frame, powder coated
  • Front suspensionWP APEX 43
  • Ground clearance200 mm
  • HandlebarAluminium, tapered Ø 28/22 mm
  • Rear suspensionWP APEX - Monoshock
  • Seat height855 mm
  • SilencerStainless steel primary and secondary silencer
  • Steering head angle63.5 °
  • Rear subframe designSteel trellis frame, powder coated
  • Suspension travel (front)170 mm
  • Suspension travel (rear)177 mm
  • WheelsCast aluminium wheels
