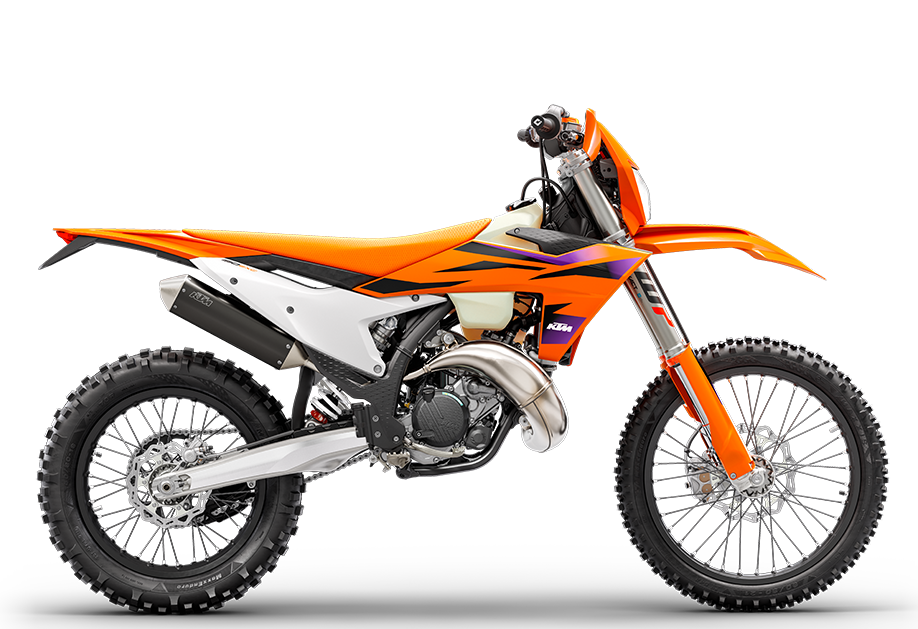

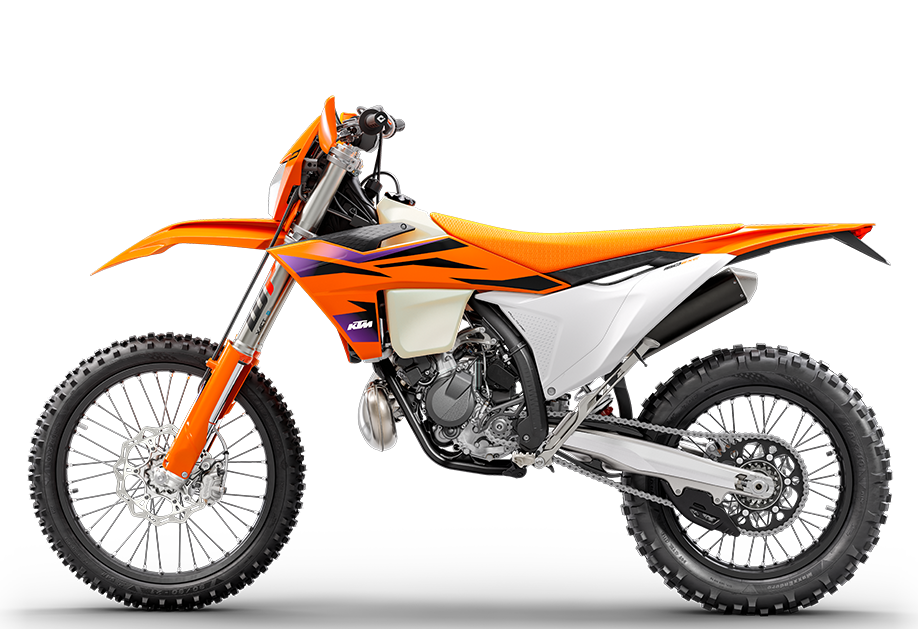

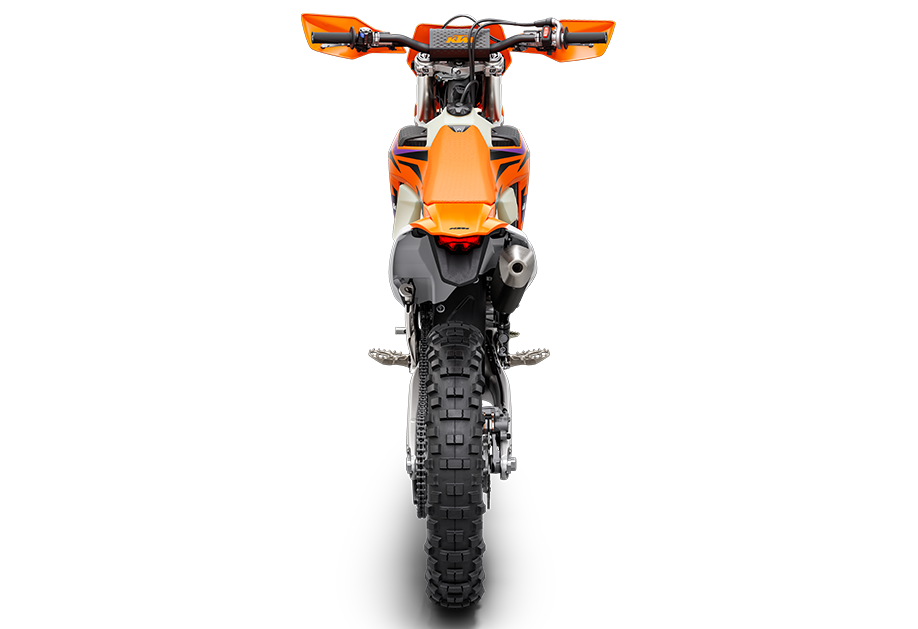

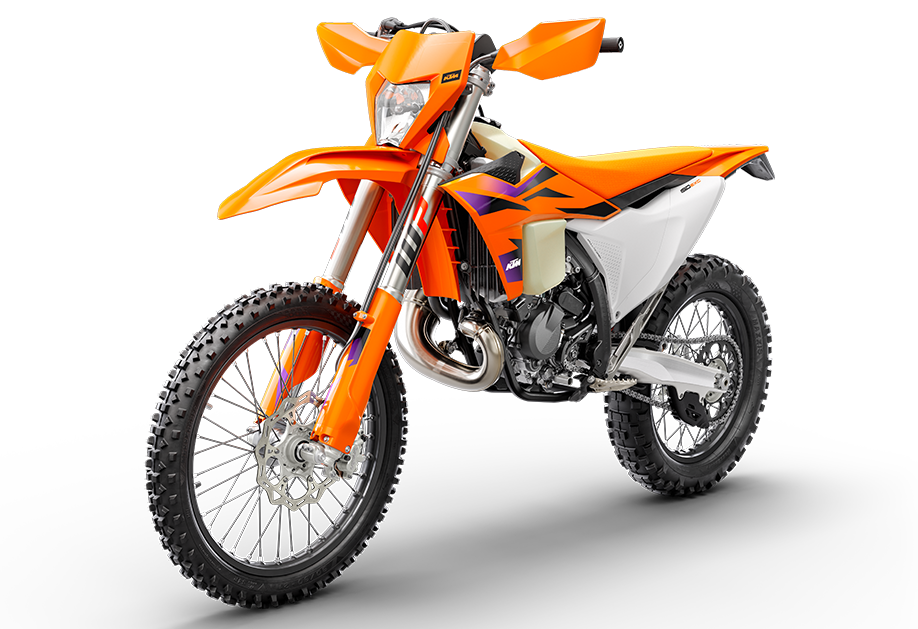

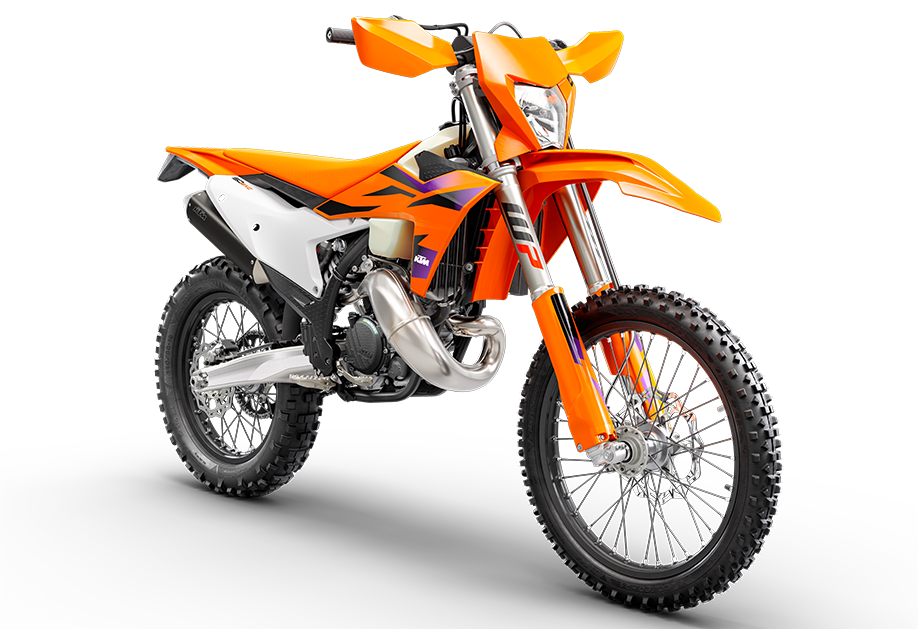

Taking its place as the entry-level enduro weapon in the EXC arsenal, the 2024 KTM 150 EXC isn't one to take for granted. Featuring the same model enhancements as the rest of the KTM 2024 EXC range - like an all-new frame, closed-cartridge suspension, new bodywork, and an all-new TBI fueling system - it packs enough punch to hang on to the big boys, while commanding just as much respect.

  • New Ultra Light Subframe
  • WP XACT Closed-Cartidge Fork
  • Selectable Engine Maps (optional extra)
  • Throttle Body Injection - TBI

ENGINE

  • TRANSMISSION 6-speed
  • STARTER Electric starter
  • STROKE 54.5 mm
  • BORE 58 mm
  • CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
  • DISPLACEMENT143.99 cm³
  • EMS Vitesco Technologies EMS
  • DESIGN 1-cylinder, 2-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL) 97.8 kg
  • TANK CAPACITY (APPROX.) 9 l
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 520 X-Ring
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION WP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE 347 mm
  • REAR SUSPENSION WP Xplor PDS shock absorber
  • SEAT HEIGHT 963 mm
  • STEERING HEAD ANGLE 63.9 °
  • SUSPENSION TRAVEL (FRONT) 300 mm
  • SUSPENSION TRAVEL (REAR) 310 mm
