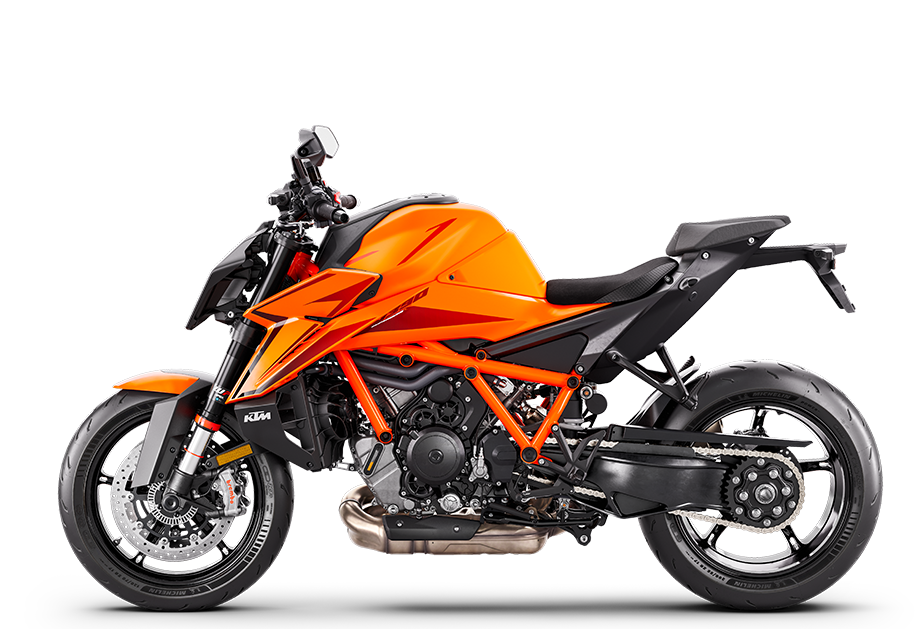

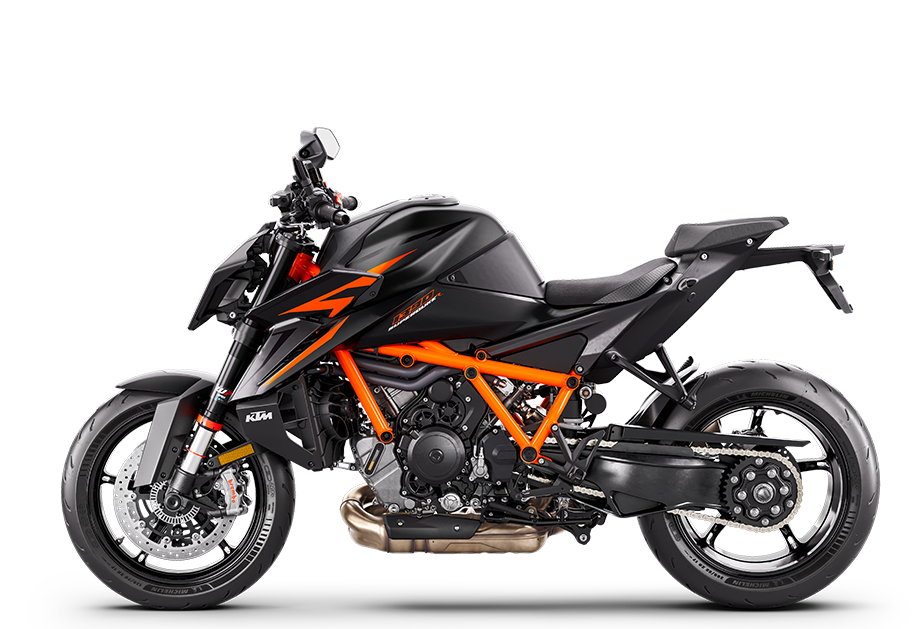

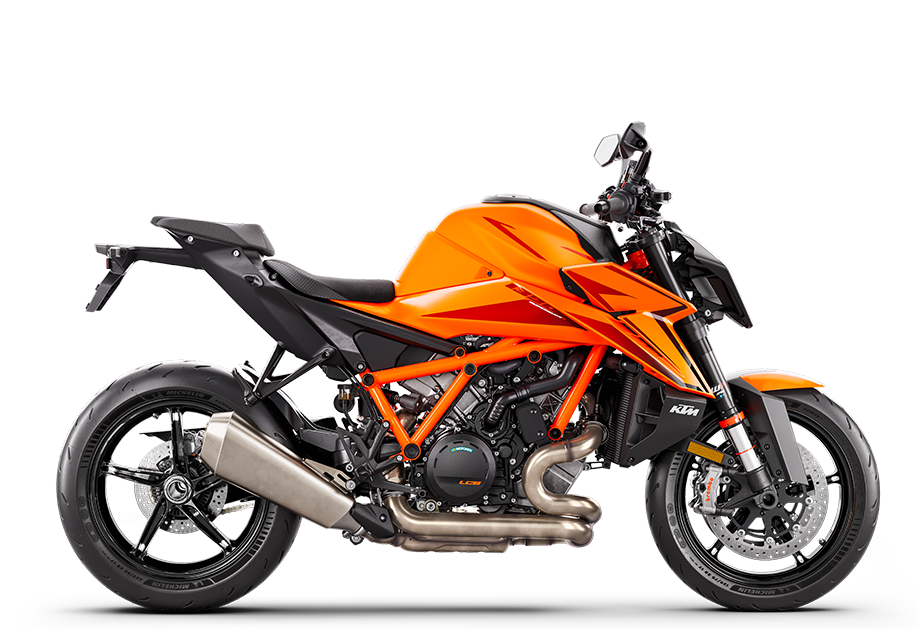

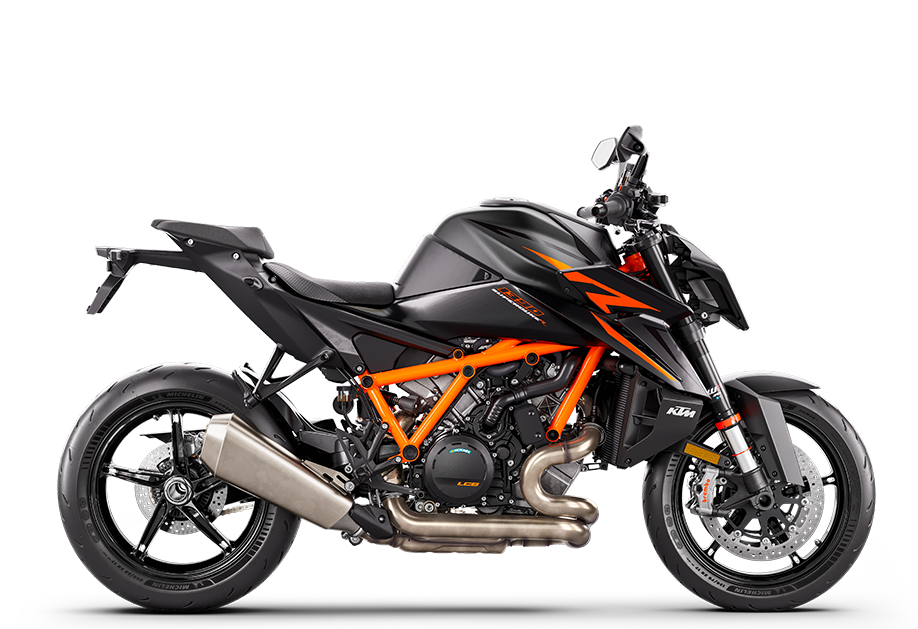

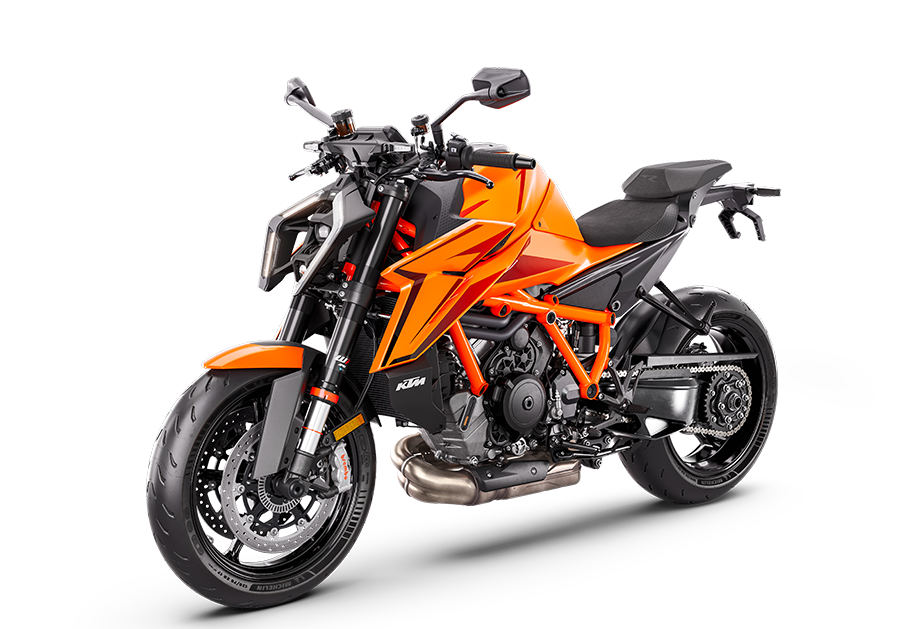

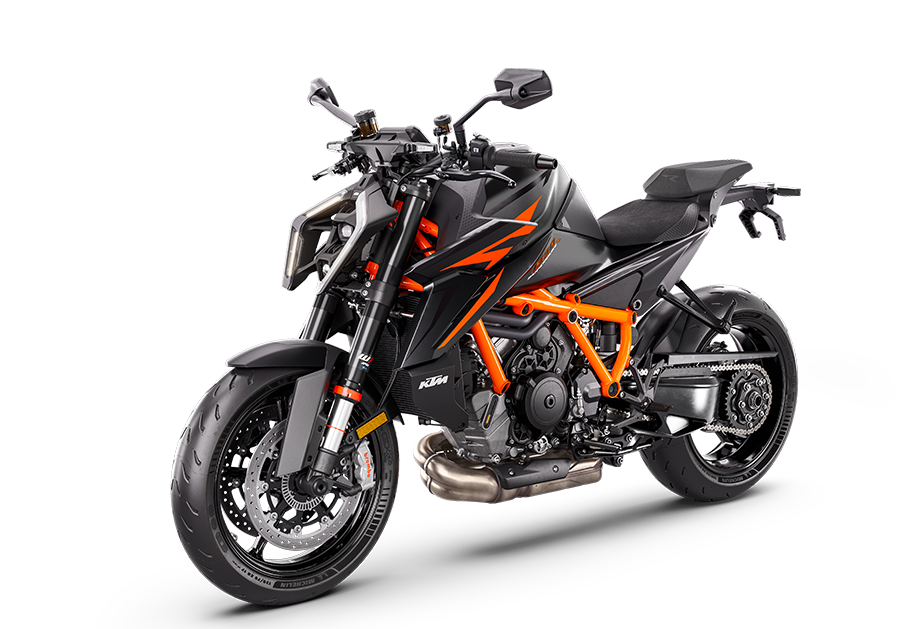

KTM 1390 Super Duke R 2024

They say it's lonely at the top. But that's only because you've eaten your way to the sharp end of the pyramid. The KTM 1390 SUPER DUKE R takes its place as the undisputed Alpha of the NAKED pack, making its dominance felt with every brazen blip of its throttle.

ENGINE

  • TORQUE 145 Nm
  • TRANSMISSION 6-speed
  • BATTERY CAPACITY 11.2 Ah
  • COOLING Liquid cooled with water/oil heat exchanger
  • POWER IN KW 140 kW
  • STARTER Electric starter
  • STROKE 71 mm
  • BORE 110 mm
  • CLUTCH PASC (TM) slipper clutch, hydraulically actuated
  • CO2 EMISSIONS 139 g/km
  • DISPLACEMENT 1350 cm³
  • EMS Keihin EMS with RBW and cruise control, double ignition
  • DESIGN 2-cylinder, 4-stroke, V 75°
  • FUEL CONSUMPTION 5.9 l/100 km
  • LUBRICATION Forced oil lubrication with 3 oil pumps

CHASSIS

  • WEIGHT (WITHOUT FUEL) 200.5 kg
  • TANK CAPACITY (APPROX.) 17.5 l
  • ABS Bosch 9.3 MP (with cornering ABS and SUPERMOTO ABS)
  • FRONT BRAKE DISC DIAMETER 320 mm
  • REAR BRAKE DISC DIAMETER 240 mm
  • FRONT BRAKE 2 x Brembo Stylema Monobloc four piston, radially mounted caliper
  • REAR BRAKE Brembo twin-piston fixed calliper, brake disc
  • CHAIN 525 X-Ring
  • FRAME DESIGN Chrome-moly tubular space frame, powder-coated
  • FRONT SUSPENSION WP APEX 48
  • GROUND CLEARANCE 149 mm
  • REAR SUSPENSION WP APEX - Monoshock
  • SEAT HEIGHT 834 mm
  • STEERING HEAD ANGLE 65.3 °
  • SUSPENSION TRAVEL (FRONT) 125 mm
  • SUSPENSION TRAVEL (REAR) 140 mm
