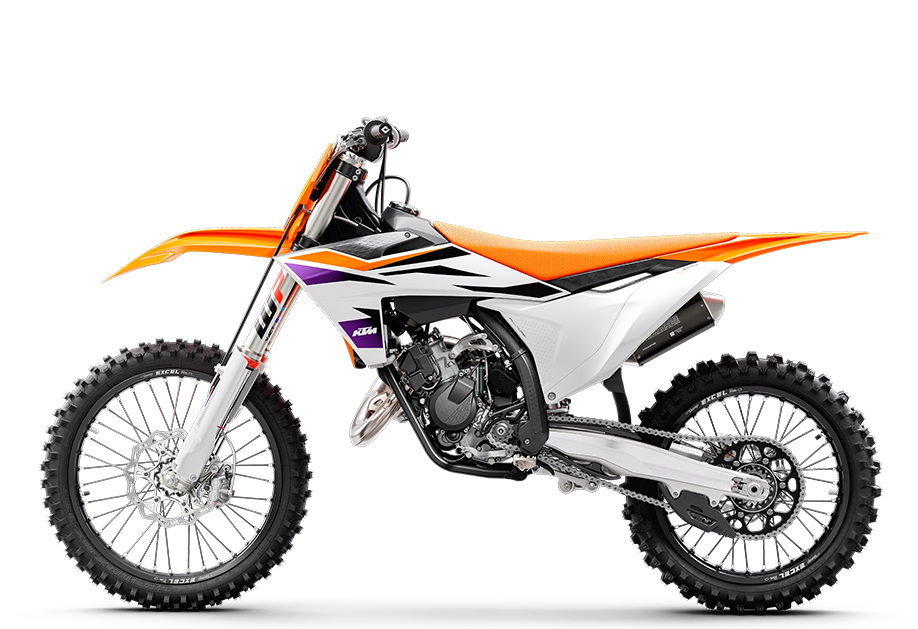

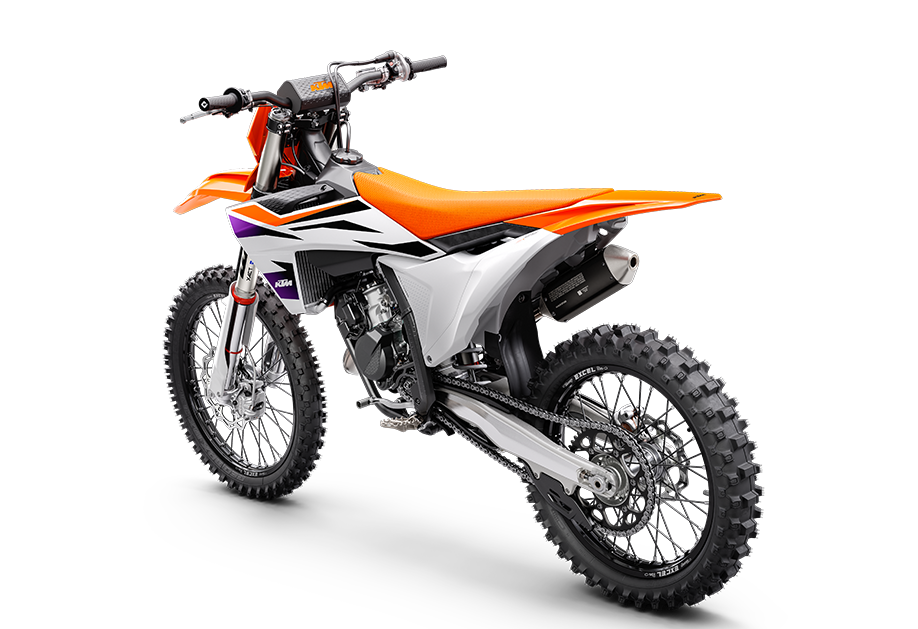

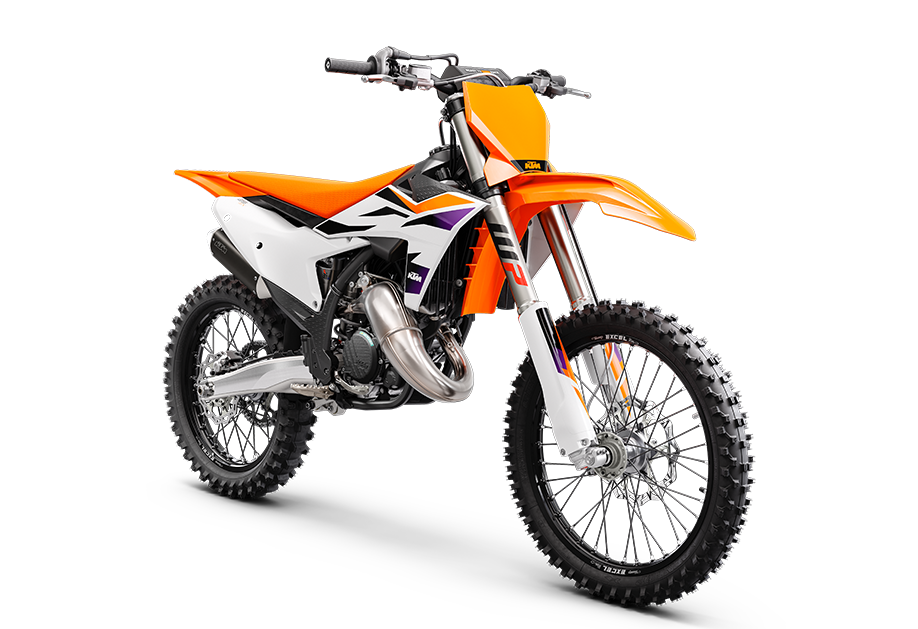

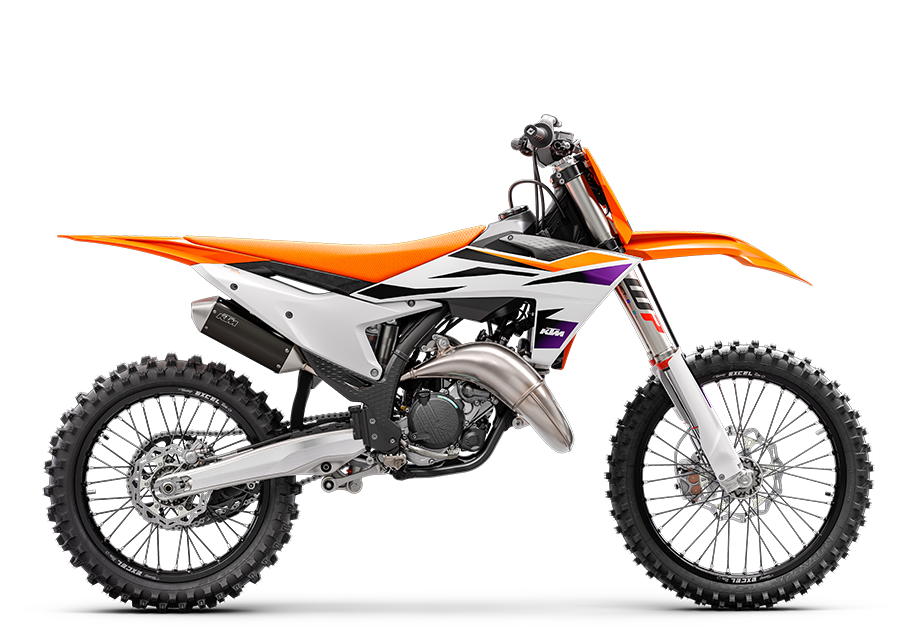

KTM 125 SX 2024

All it takes is one hard, fast rip into a loamy berm to know that the 2024 KTM 125 SX is a serious contender in the 125 cc race. Not only has the 'Ring-ting-ting' been given a fuel-injected revival, but the entire motorcycle also benefits from class-leading developments at every end. Boasting accolades such as being the leader in 2-stroke motocross innovation in the modern era, the 2024 KTM 125 SX simply slays the rest of the 125 cc class. All you need do is prod the starter, blip the throttle and let rip.

ENGINE

  • Transmission

 6-speed

  • Starter

 Electric starter

  • Stroke

 54.5 mm

  • Bore

 54 mm

  • Clutch

 Wet multi-disc DS clutch, Brembo hydraulics

  • Displacement

 124.8 cm3

  • EMS

 Vitesco Technologies EMS

  • Engine

 1-cylinder, 2-stroke engine

CHASSIS

  • Weight (Without Fuel)

 92.4 kg

  • Tank Capacity (Approx.)

 7.2 l

  • Front Brake Disc Diameter

 260 mm

  • Rear Brake  Disc Diameter

 220 mm

  • Front brake

 Disc brake

  • Rear brake

 Disc brake

  • Chain
  • 520, Non-sealed
  • Frame Design

 Central double-cradle-type 25CrMo4 steel

  • Front Suspension

 WP XACT-USD, Ø 48 mm

  • Ground Clearance

 359 mm

  • Rear Suspension

 WP XACT Monoshock with linkage

  • Seat height

 958 mm

  • Steering head angle

 63.9 °

  • Suspension Travel (Front)

 310 mm

  • Suspension Travel (Rear)

 300 mm
