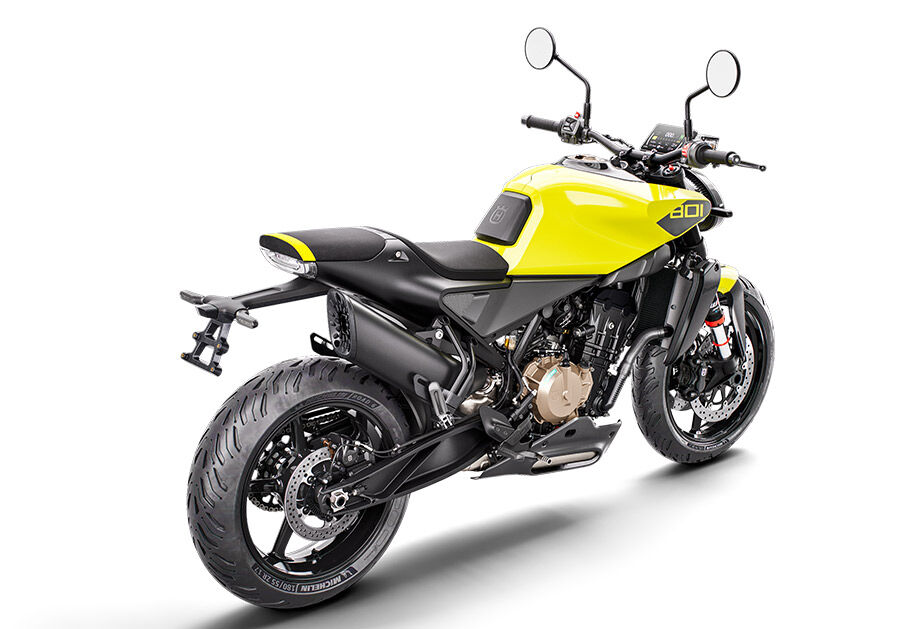

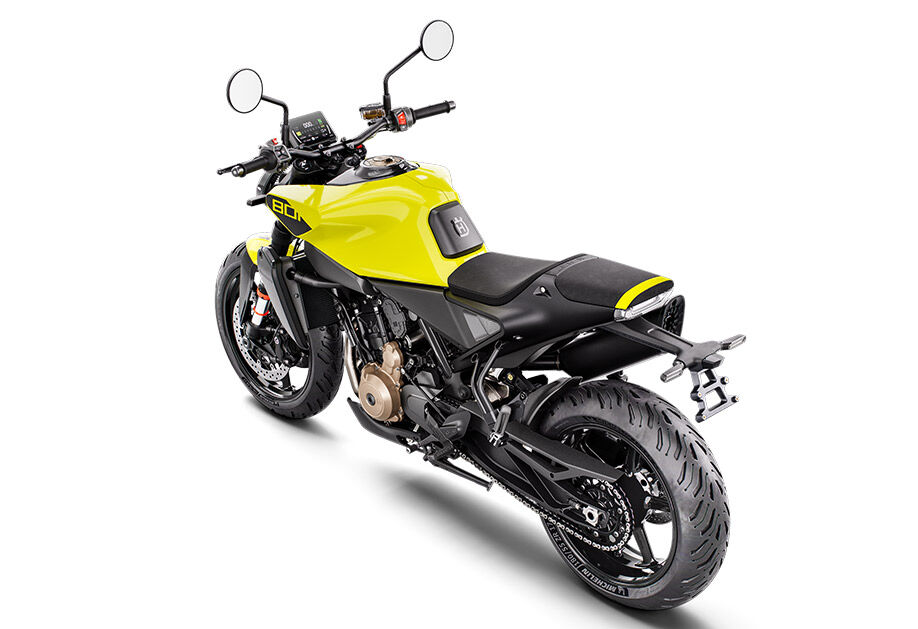

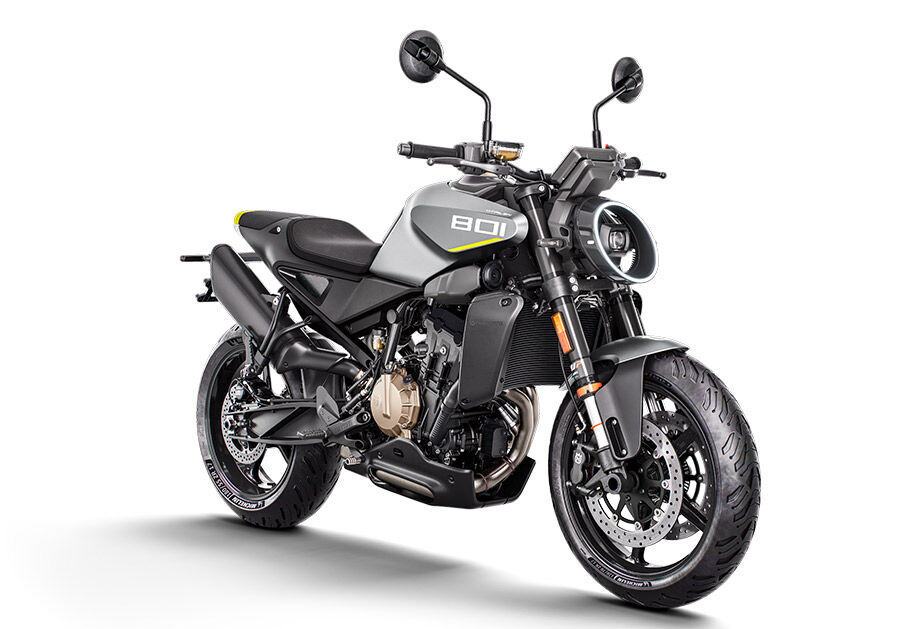

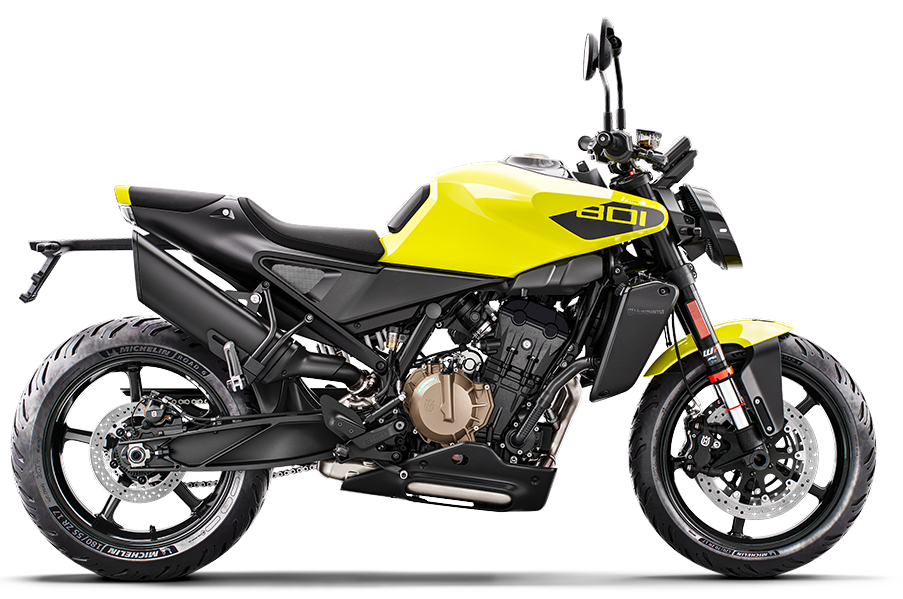

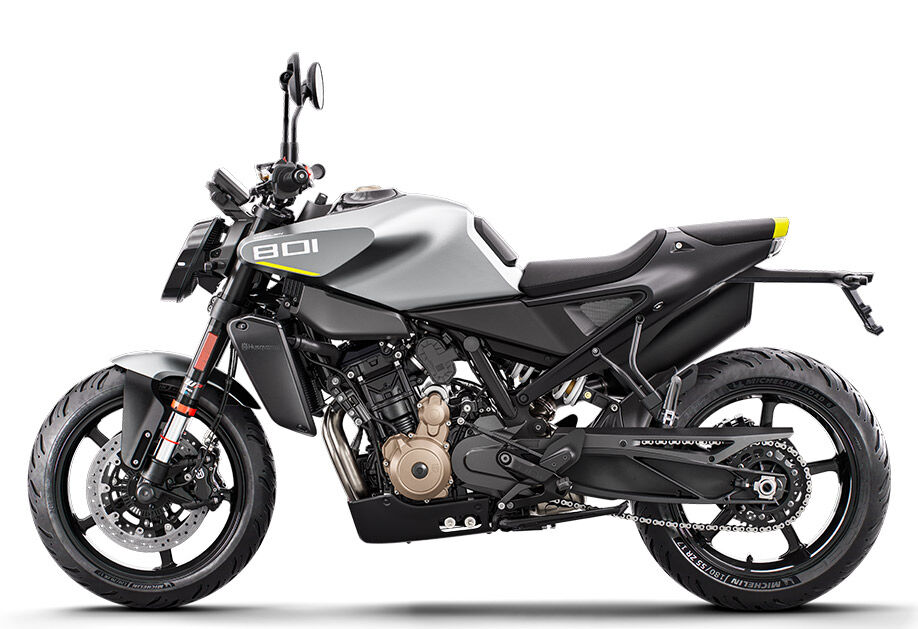

The Vitpilen 801 is a highly capable and dynamic roadster that delivers a riding experience like nothing before it. Taking design inspiration from the Swedish heritage of the brand, this beautifully crafted, modern motorcycle is characterised by its LED projector lens headlight, which features a surrounding light ring for an unmistakable look. Pure performance comes from the 105 hp, parallel-twin engine with multiple electronic rider aids tailoring the delivery for a customised set-up. Personalisation extends to the premium, adjustable WP suspension and a choice of up to four ride modes that ensure the Vitpilen 801 is accessible to a broad range of riders.

Engine

  • Primary drive39:75
  • Transmission6-speed
  • CoolingLiquid cooled with water/oil heat exchanger
  • Secondary gear ratio16:41
  • Power in KW77 kW
  • StarterElectric starter
  • Stroke65.7 mm
  • Bore88 mm
  • ClutchCable operated PASC slipper clutch
  • CO2 emissions106 g/km
  • Compression ratio12.5
  • Displacement799 cm³
  • EMSBosch EMS with RBW
  • Design2-cylinder, 4-stroke, parallel twin
  • Fuel consumption4.5 l/100 km
  • Fuel-mixture generationDKK Dellorto (Throttle body 46mm)
  • LubricationForced oil lubrication with 2 oil pumps

Chassis

  • Weight (without fuel)180 kg
  • Tank capacity (approx.)14 l
  • Wheelbase1.475 mm
  • Front brake disc diameter300 mm
  • Rear brake disc diameter240 mm
  • Front brake2x radially mounted 4 piston caliper
  • Rear brakeSingle-piston floating calliper
  • Chain520 X-Ring
  • Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
  • Front suspensionWP APEX 43
  • Ground clearance170 mm
  • HandlebarAluminium, tapered Ø 28/22 mm
  • Rear suspensionWP APEX - Monoshock
  • Seat height820 mm
  • SilencerStainless steel primary and secondary silencer
  • Steering head angle65.5 °
  • Rear subframe designCast aluminium, powder coated
  • Suspension travel (front)140 mm
  • Suspension travel (rear)150 mm
  • Wheels3.50 x 17"; 5.50 x 17"
  • WheelsCast aluminium wheels
  • Wheelbase1.475 ± 15 mm
