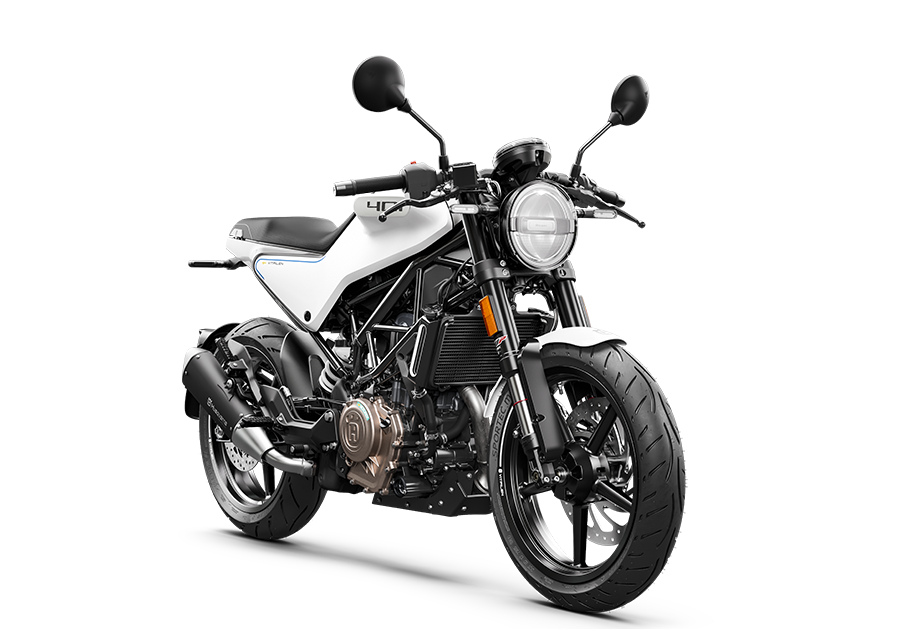

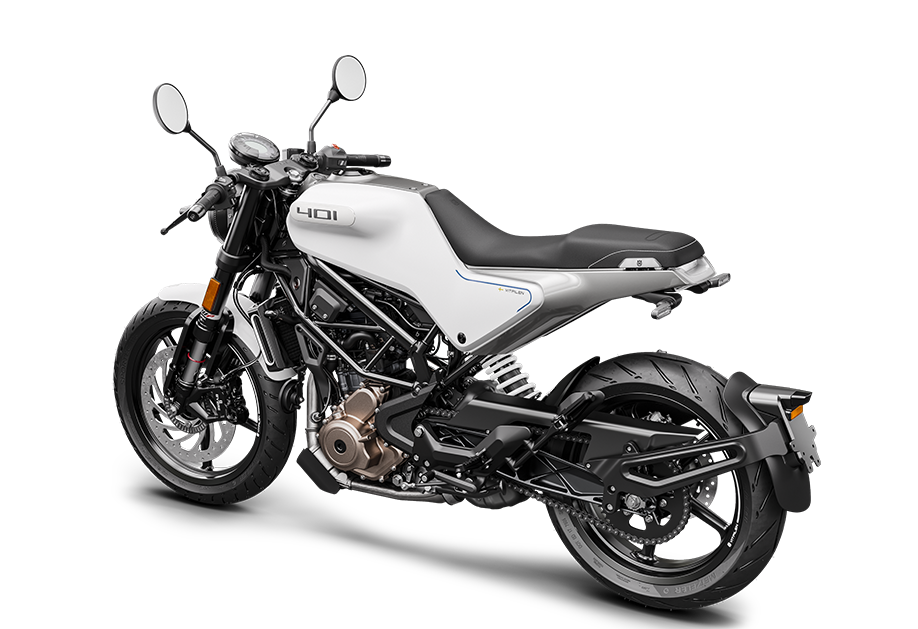

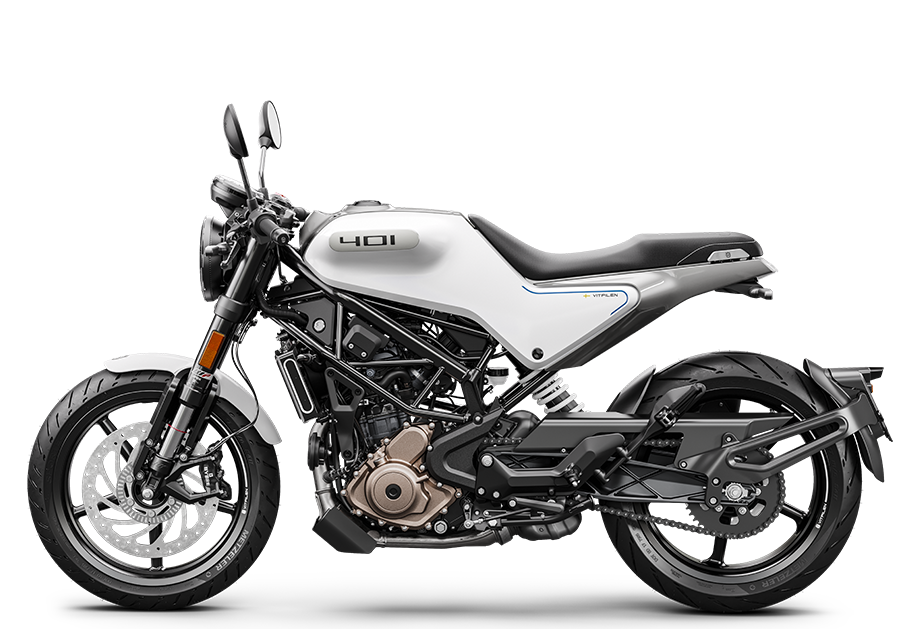

The Vitpilen 401 is an unassuming hero of the sub-500 cc world. Its surefootedness, light weight and immersive riding position guarantee helmet-hidden smiles. You don't ride it as much as guide it with feather-light inputs. It reacts to the smallest response, moves at the lightest touch and feeds back every road texture through low-slung bars. It's an all-encompassing and sensory ride which resonates with new and experienced riders alike. The light colours and graphics enhance the stunning appearance, and reflect the progressive mix of modern thinking and classic design following the brand's Swedish heritage.

Engine

  • Torque37 Nm
  • Transmission6-speed
  • Battery capacity8 Ah
  • CoolingLiquid cooled
  • Power in KW32 kW
  • StarterElectric starter
  • Stroke60 mm
  • Bore89 mm
  • ClutchPASC™ antihopping clutch, mechanically operated
  • CO2 emissions77 g/km
  • Compression ratio12.6
  • Displacement373 cm³
  • EMSBosch EMS
  • Design1-cylinder, 4-stroke engine
  • Fuel consumption3.6 l/100 km
  • Fuel-mixture generationBosch EFI (throttle valve 46 mm)
  • LubricationForced oil lubrication with 2 oil pumps

Chassis

  • Weight (without fuel)152 kg
  • Tank capacity (approx.)9.5 l
  • Wheelbase1368 mm
  • ABStwo channel Bosch 10.1MB
  • Front brake disc diameter320 mm
  • Rear brake disc diameter230 mm
  • Front brakeByBre, opposed four-piston caliper, brake disc
  • Rear brakeByBre, single-piston, floating caliper, brake disc
  • ChainX-Ring 5/8 x 1/4"
  • Frame designChrome-moly tubular space frame, powder-coated
  • Front suspensionWP APEX 43
  • Ground clearance145 mm
  • HandlebarSteel, tapered Ø 26/22 mm
  • Rear suspensionWP APEX - Monoshock
  • Seat height835 mm
  • SilencerStainless steel, underfloor pre-silencer combined with aluminium absorption silencer with regulated catalytic converter
  • Steering head angle65 °
  • Rear subframe designChrome-molybdenum steel tubular space frame, powder-coated
  • Suspension travel (front)142 mm
  • Suspension travel (rear)142 mm
  • WheelsSpoked wheels with aluminium rims
