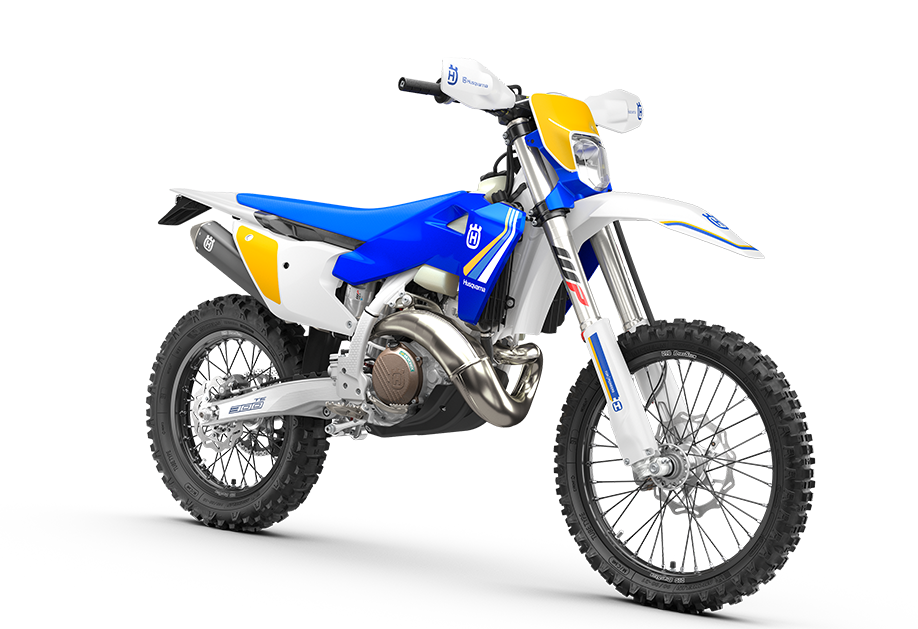

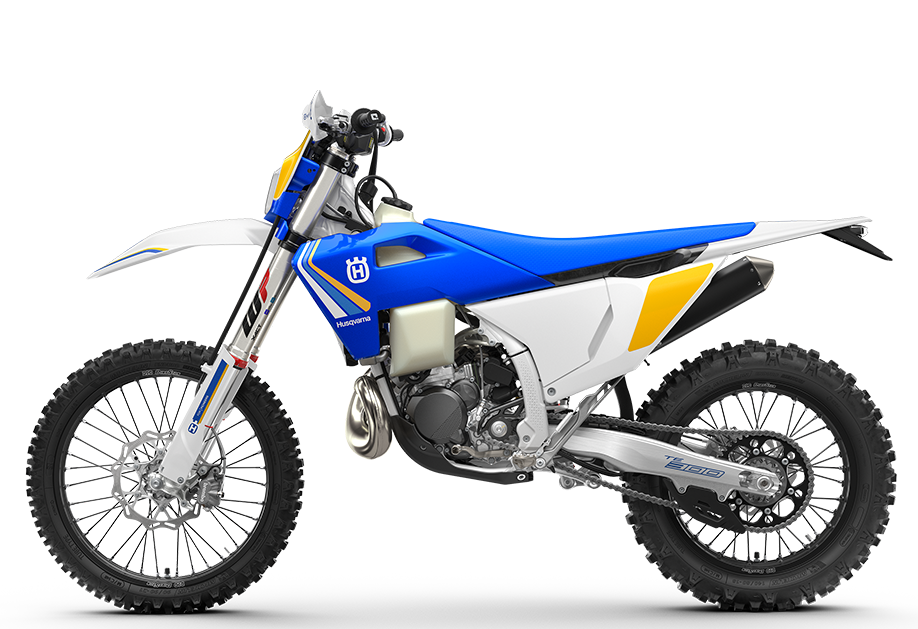

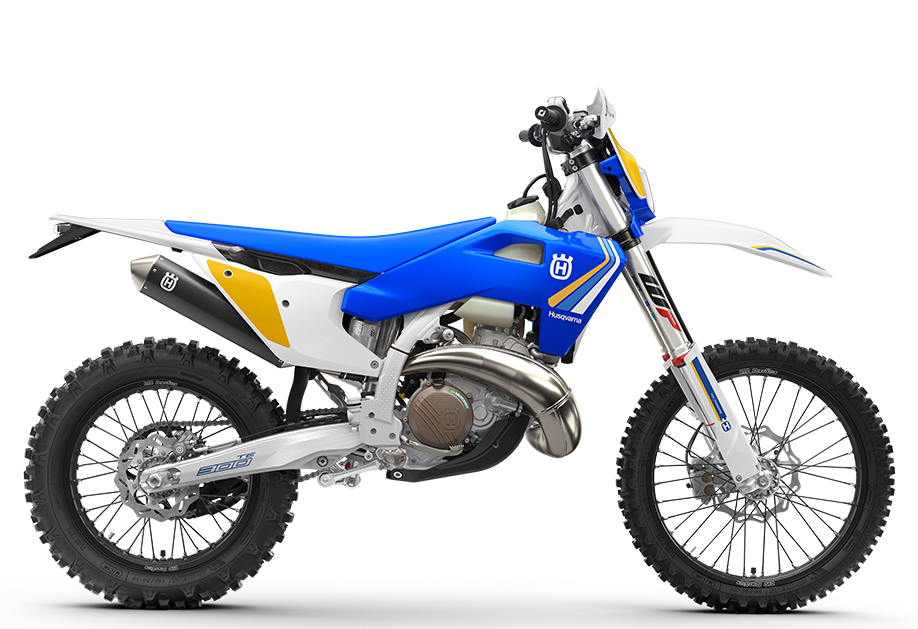

Go where few have gone before with the TE 300 Heritage model. Based upon the machine of choice for hard enduro riders worldwide, the Heritage machine is finished with a distinctive look created by the unique graphics, together with blue radiator shrouds. High performing, reliable components include the Brembo clutch and brake systems while a combined start and stop switch keeps weight to a minimum and simplifies starting and stopping. With a light, agile chassis and plush WP XACT suspension, the superior rideability of the versatile machine is never in question.

Engine

  • Transmission6-speed
  • Battery capacity2 Ah
  • CoolingLiquid cooled
  • Stroke72 mm
  • Bore72 mm
  • ClutchWet, DDS multi-disc clutch, Brembo hydraulics
  • Displacement293.2 cm³
  • EMSVitesco Technologies EMS
  • Design1-cylinder, 2-stroke engine
  • Fuel-mixture generationKeihin EFI, throttle body 39 mm

Chassis

  • Weight (without fuel)107.0 kg
  • Tank capacity (approx.)8.5 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Chain520 X-Ring
  • Frame designCentral double-cradle-type 25CrMo4 steel
  • Front suspensionWP XACT cartridge Ø 48 mm
  • Ground clearance343 mm
  • HandlebarPro Taper, Aluminium Ø 28/22 mm
  • Rear suspensionWP XACT Monoshock with linkage
  • Seat height952 mm
  • SilencerAluminium
  • Steering head angle63.9 °
  • Rear subframe designAluminum-reinforced polyamide
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • WheelsSpoked wheels with aluminium rims
