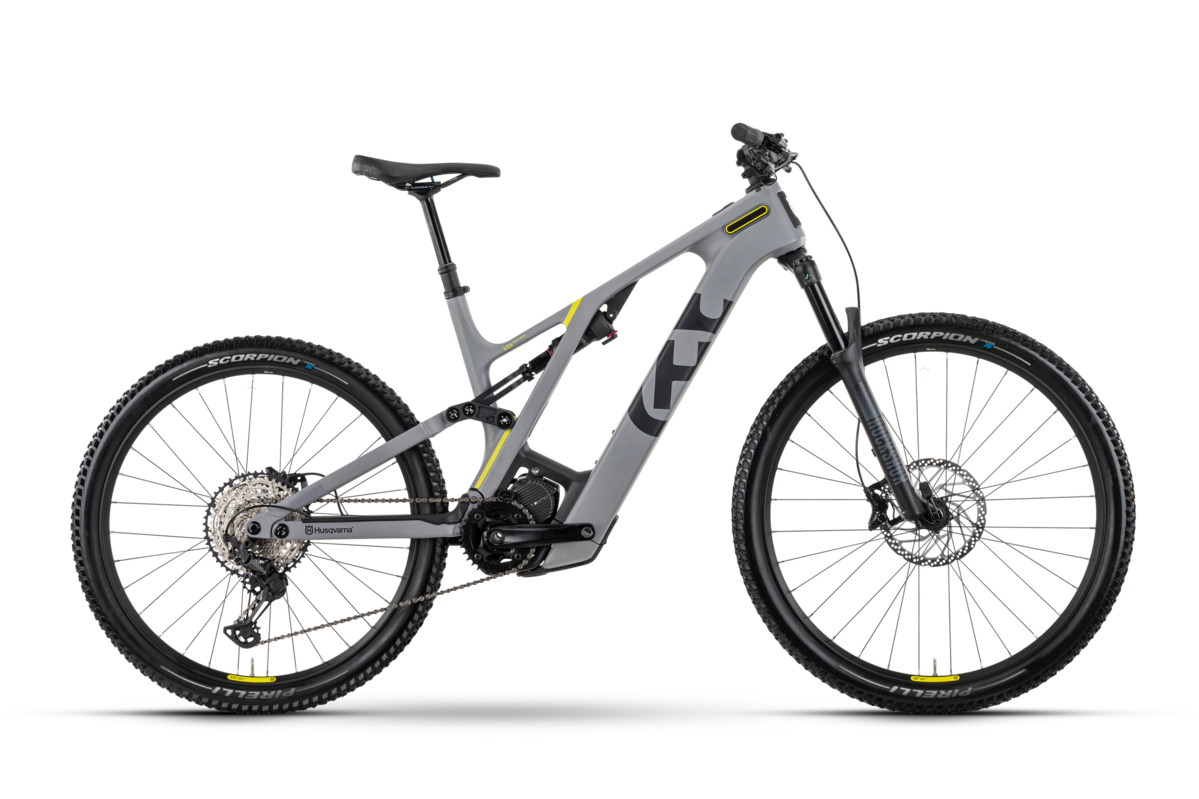

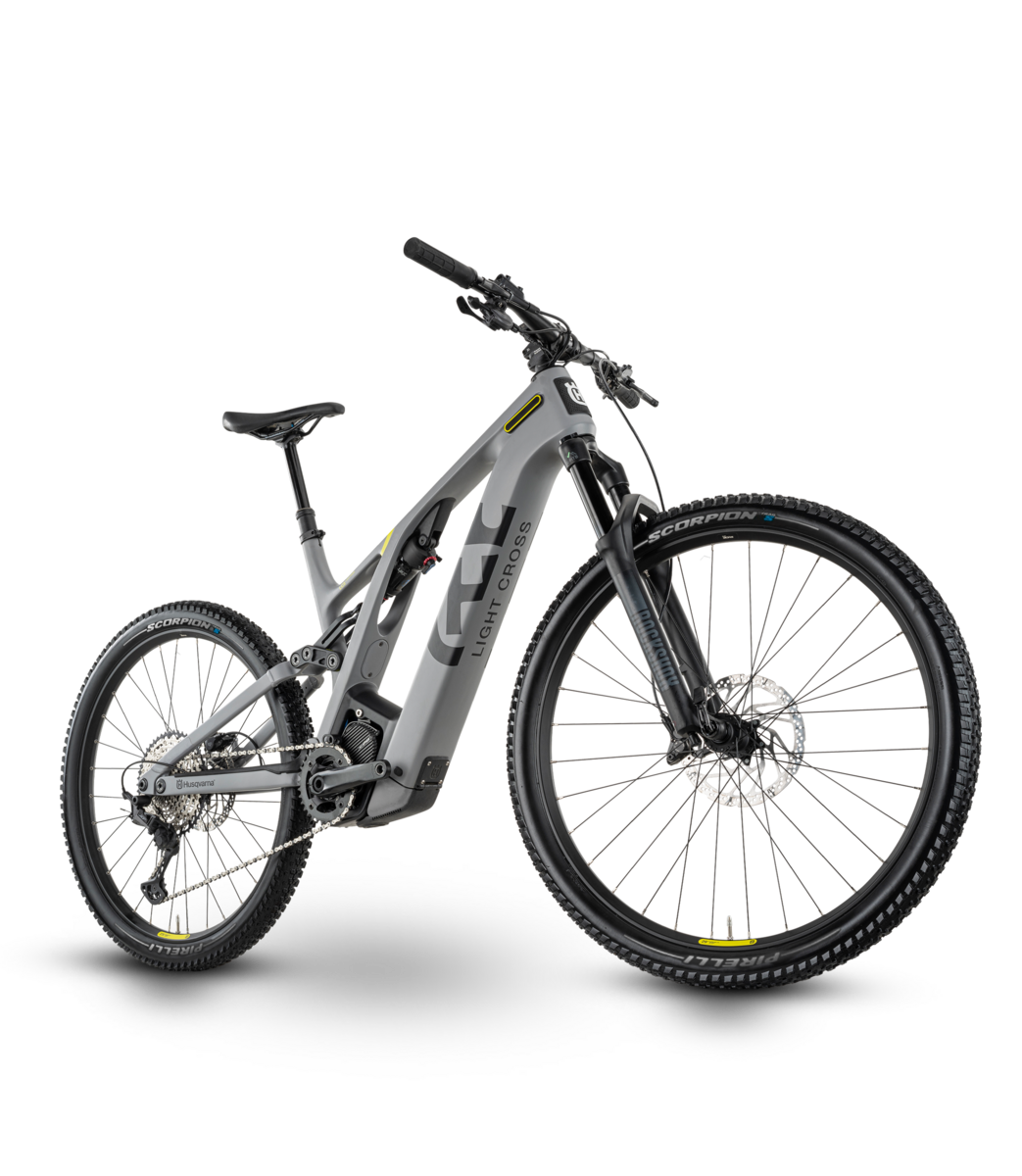

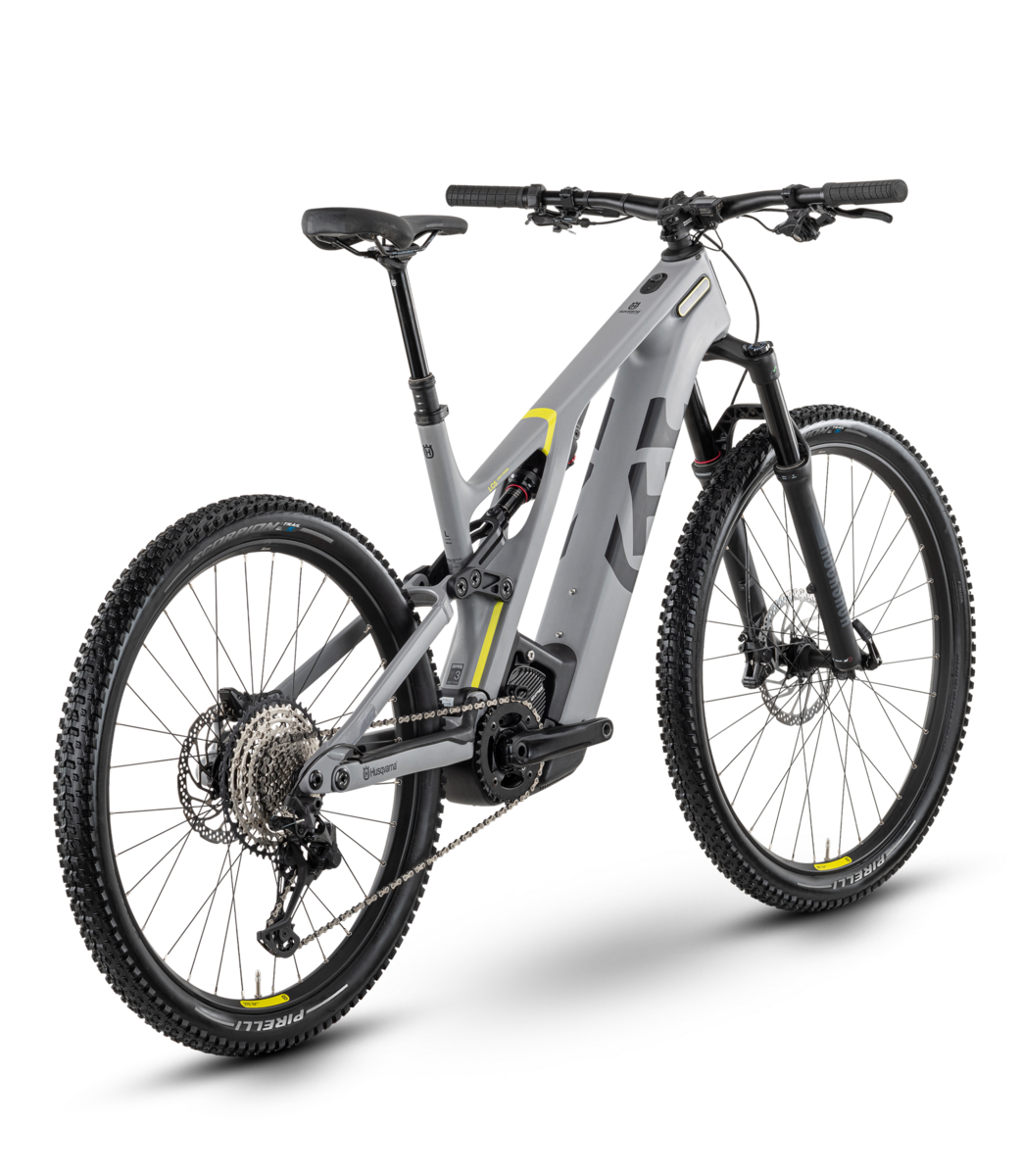

Husqvarna Light Cross LC5

Make it a day of short-travel eMTB adventure rides on the Light Cross 5. On-trend geometry numbers in a responsive, intuitive chassis, together with mixed wheel sizes, make for a playful ride on mellower terrain. The new Shimano EP801 motor is mounted in a unique, upstanding position to assist passive cooling and increase performance. For ease-of-use, a new charging port makes charging the 720Wh battery simple.

Wheel size

27.5“/584mm, 29"/622mm

Frame

29/27.5", Carbon/Aluminium 6061, Integrated battery, Boost, New HQV Carbon, 120 mm

Fork

RockShox 35 Gold RL, DebonAir, Air, 130 mm, tapered



  • FRAME 29/27.5", Carbon/Aluminium 6061, Integrated battery, Boost, New HQV Carbon, 120 mm

  • FORK RockShox 35 Gold RL, DebonAir, Air, 130 mm, tapered

  • SHOCK RockShox Deluxe Select+, Air, 190x45 mm

  • MOTOR Shimano EP8, DU-EP801, 250 W, 85 Nm

  • BATTERY Core S3+, 720 Wh, 36 V

  • CHARGER Charger S, 4 A

  • MODE SWITCH Shimano SW-EN600-L

  • DISPLAY Shimano SC-EN600, LCD-Display, Bluetooth

  • FRONT BRAKE SRAM G2 R, 4-piston, Hydraulic disc brake

  • FRONT BRAKE ROTOR SRAM Centerline, 200 mm, 6-hole

  • REAR BRAKE SRAM G2 R, 4-piston, Hydraulic disc brake

  • REAR BRAKE ROTOR SRAM Centerline, 180 mm, 6-hole

  • REAR DERAILLEUR SRAM GX Eagle, 12-S

  • CASSETTE SRAM PG-1230, 11-50 T

  • CHAINS RAM GX Eagle

  • CHAINRING SRAM X-Sync Eagle, 34 T

  • CRANK ARM Shimano FC-EM900, Aluminum forged, Shimano EP24

  • SHIFT LEVER SRAM GX Eagle, Single Click

  • FRONT WHEEL Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, 6-hole, 15x110 mm, thru axle

  • REAR WHEEL Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, 6-hole, 12x148 mm, thru axle

  • TIRE Maxxis Rekon, 62-622, 29x2.4, Tubeless ready

  • REAR TIRE Maxxis Rekon, 62-584, 27.5x2.4, Tubeless ready

  • STEM Husqvarna 35, 0 °, Ahead

  • HEADSET Acros ICR, blocklock, ZS56/ZS56

  • HANDLEBAR Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm

  • GRIPS Husqvarna MTB, Lock-on grips

  • SADDLE Husqvarna MTB

  • SEAT POST Husqvarna Pro, 31.6 mm, Dropper post

  • PEDALS Husqvarna, aluminum

  • CHAIN GUIDE Husqvarna CGU

  • WEIGHT 23.8 kg

  • PERMISSIBLE TOTAL WEIGHT 130 kg
