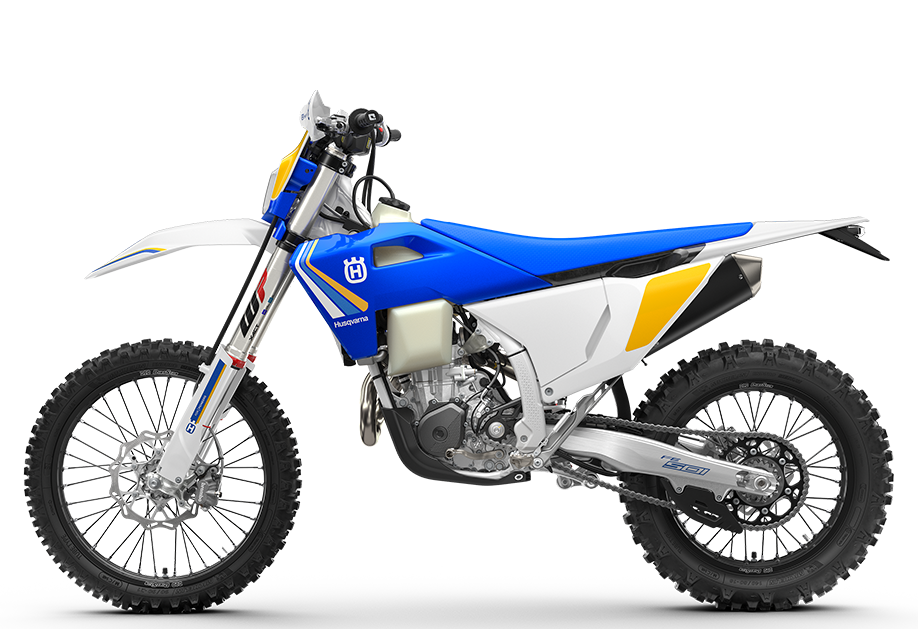

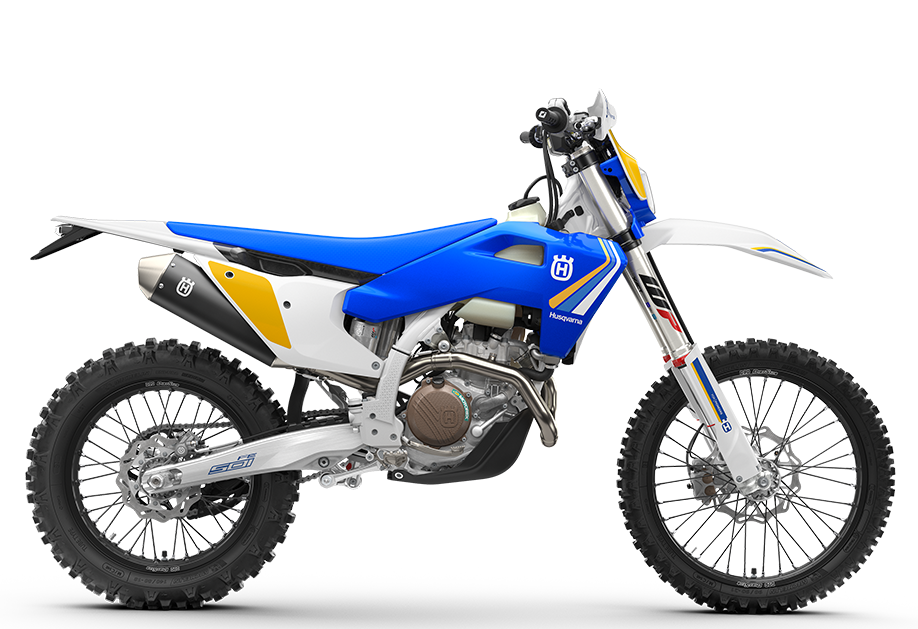

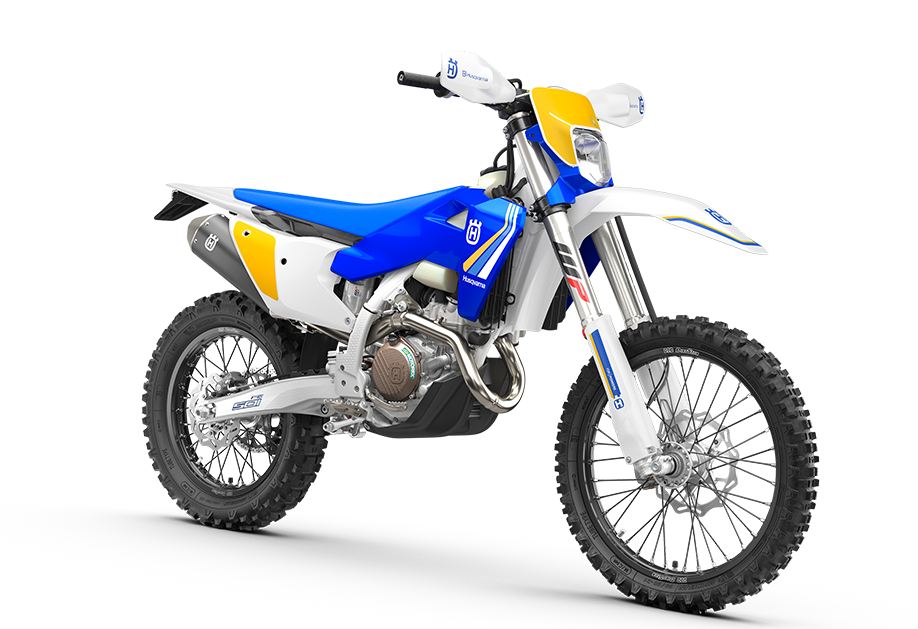

The latest technology and premium components ensure the FE 501 Heritage model offers a riding experience like nothing else. Advanced electronics tame the most powerful engine in the enduro line-up with the shaft arrangements positioned at the ideal centre of gravity to vastly benefit manoeuvrability. Riding comfort and agility is further enhanced by the perfectly balanced chassis and plush WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501 Heritage machine is finished with functional bodywork adorned with distinctive new graphics exclusive to the Heritage range.

Engine

  • Primary drive29:72
  • Transmission6-speed
  • Battery capacity2 Ah
  • CoolingLiquid cooled
  • Secondary gear ratio14:50
  • StarterElectric starter
  • Stroke72 mm
  • Bore95 mm
  • ClutchWet, DDS multi-disc clutch, Brembo hydraulics
  • Compression ratio12.75
  • Displacement510.9 cmÂł
  • EMSKeihin EMS
  • Design1-cylinder, 4-stroke engine
  • Fuel-mixture generationKeihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)110.8 kg
  • Tank capacity (approx.)8.0 l
  • Wheelbase1.489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brakeDisc brake
  • Rear brakeDisc brake
  • Chain520 X-Ring
  • Frame designCentral double-cradle-type 25CrMo4 steel
  • Front suspensionWP XACT-USD, Ø 48 mm
  • Ground clearance343 mm
  • HandlebarPro Taper, Aluminium Ø 28/22 mm
  • Rear suspensionWP XACT Monoshock with linkage
  • Seat height952 mm
  • SilencerAluminium
  • Steering head angle63.9 °
  • Rear subframe designAluminum-reinforced polyamide
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels1.60 x 21"; 2.15 x 18"
  • Wheelbase1.489 Âą 10 mm
