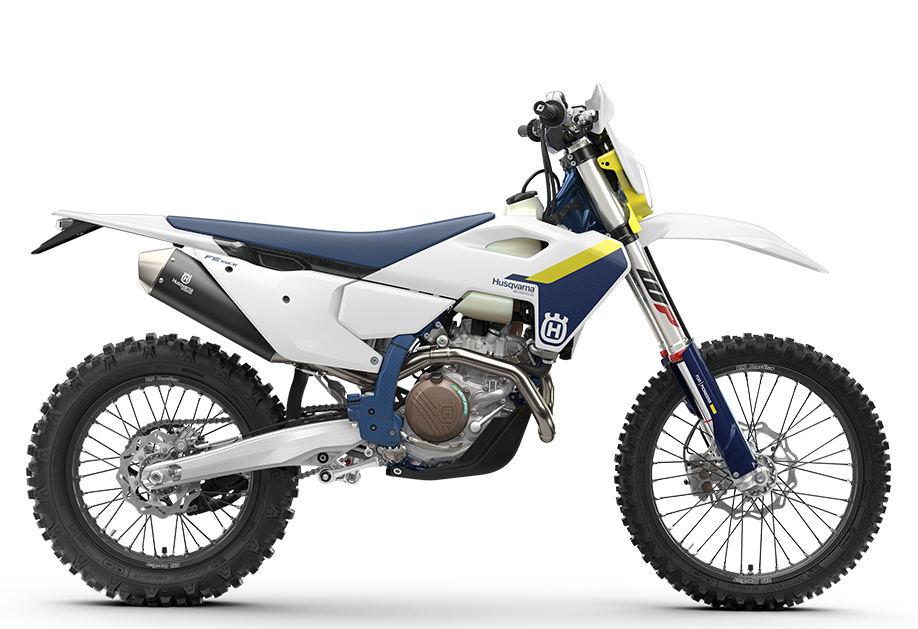

The latest technology and premium components ensure the FE 501 offers a riding experience like nothing else. Advanced electronics tame the most powerful machine in the enduro line-up with the FE 501 delivering a broad spread of controllable power. Inside the engine, the shaft arrangements are positioned at the ideal centre of gravity to vastly benefit manoeuvrability, which is complemented further by the perfectly balanced chassis and WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501 is finished with functional bodywork adorned with new graphics inspired by the Swedish heritage of the brand.

ENGINE

  • TRANSMISSION 6-speed
  • BATTERY CAPACITY 2 Ah
  • COOLING Liquid cooled
  • STARTER Electric starter
  • STROKE 72 mm
  • BORE 95 mm
  • CLUTCH Wet, DDS multi-disc clutch, Brembo hydraulics
  • COMPRESSION RATIO 12.75
  • DISPLACEMENT 510.9 cm³
  • EMS Keihin EMS
  • DESIGN 1-cylinder, 4-stroke engine
  • FUEL-MIXTURE GENERATION Keihin EFI, throttle body 42 mm

CHASSIS

  • TANK CAPACITY (APPROX.) 8.0 l
  • WHEELBASE 1489 mm
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • CHAIN 520 X-Ring
  • FRONT SUSPENSION WP XACT cartridge Ø 48 mm
  • GROUND CLEARANCE 343 mm
  • HANDLEBAR Pro Taper, Aluminium Ø 28/22 mm
  • REAR SUSPENSION WP XACT Monoshock with linkage
  • SEAT HEIGHT 952 mm
  • SILENCER Aluminium
  • STEERING HEAD ANGLE 63.9 °
  • REAR SUBFRAME DESIGN Aluminum-reinforced polyamide
  • SUSPENSION TRAVEL (FRONT) 300 mm
  • SUSPENSION TRAVEL (REAR) 300 mm
  • WHEELS Spoked wheels with aluminium rims
