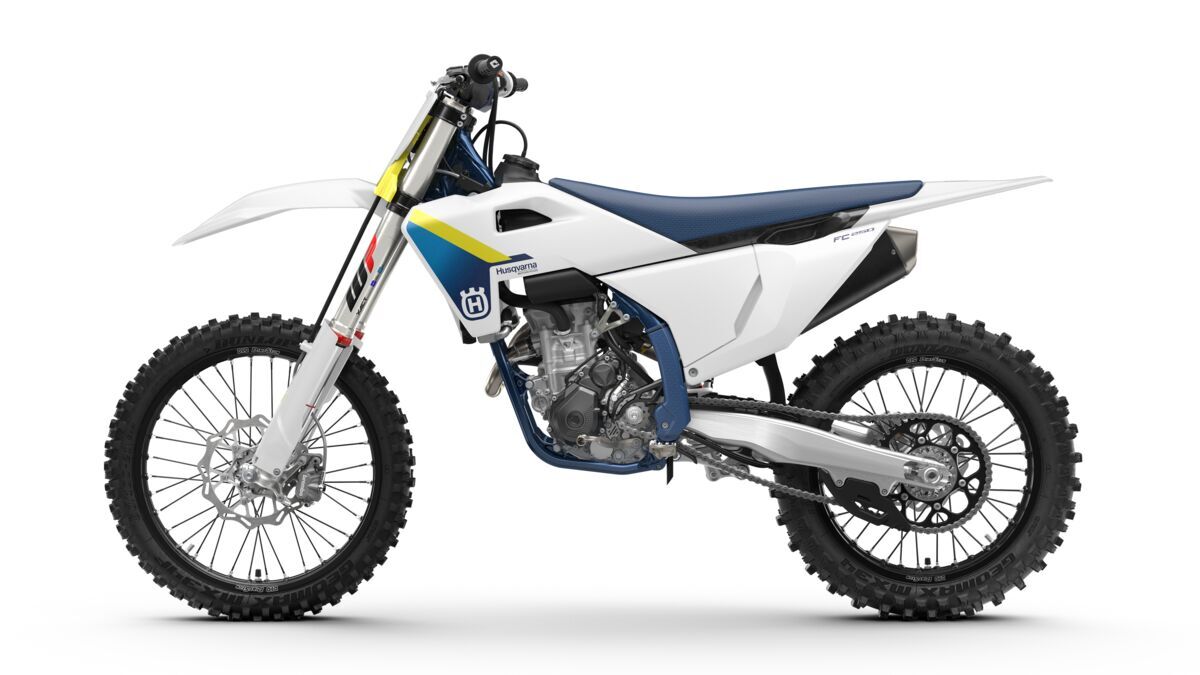

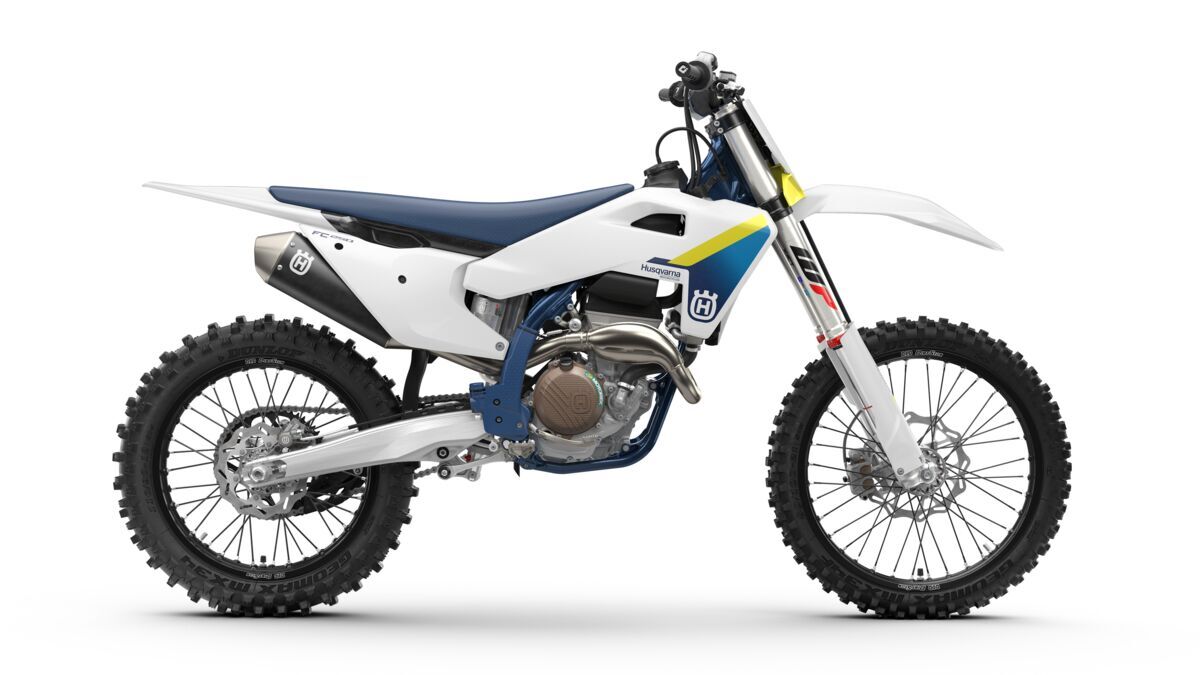

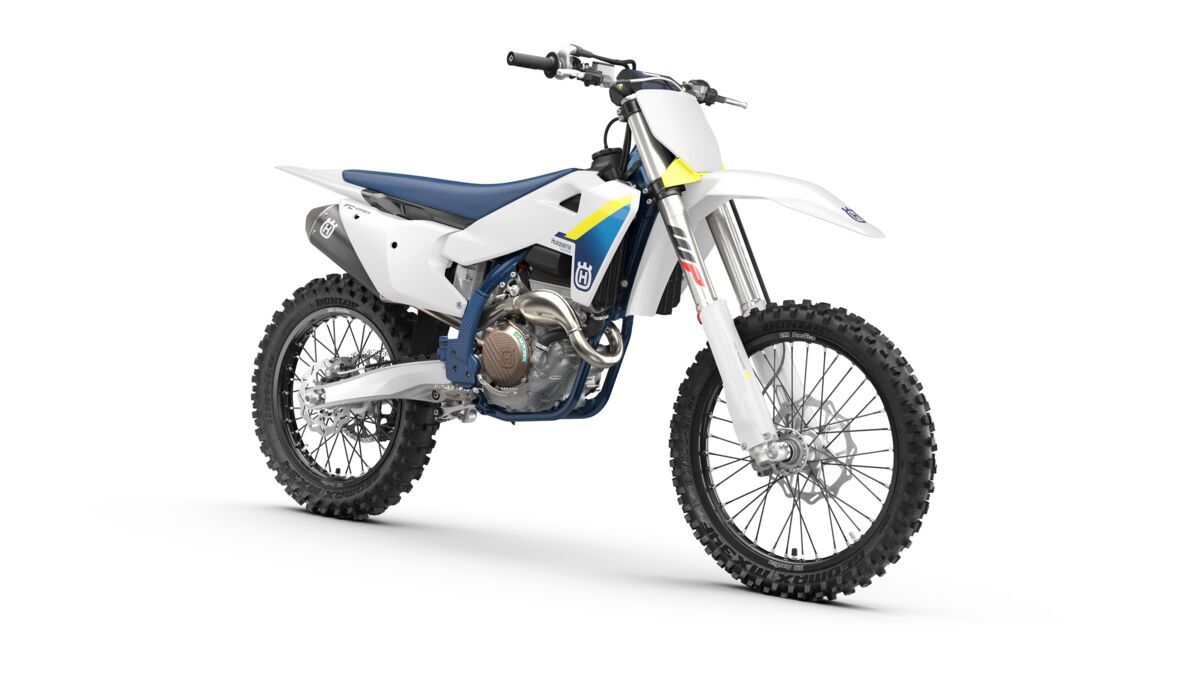

Widely praised as the best performing 250 cc 4-stroke on the market, the FC 250 retains its position at the head of the field. A compact and powerful engine is housed inside in an updated chromium molybdenum frame that is lower in weight and offers improved chassis flex. Updates to the WP suspension and rear shock linkage ensures the outstanding agility of the FC 250 is enhanced further for 2025. Its new bodywork offers refined ergonomics for effortless movement and control, with striking white and blue graphics applied using in-mold technology for an outstanding and long-lasting finish.

ENGINE

  • TRANSMISSION 5-speed
  • BATTERY CAPACITY 2 Ah
  • COOLING Liquid cooled
  • STARTER Electric starter
  • STROKE 48.5 mm
  • BORE 81 mm
  • CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
  • COMPRESSION RATIO 14.5
  • DISPLACEMENT 249.9 cm³
  • EMS Keihin EMS
  • DESIGN 1-cylinder, 4-stroke engine
  • FUEL-MIXTURE GENERATION Keihin EFI, throttle body 44 mm

CHASSIS

  • WEIGHT (WITHOUT FUEL) 101.2 kg
  • TANK CAPACITY (APPROX.) 7.2 l
  • WHEELBASE 1490 mm
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 520, Non-sealed
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION WP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE 336 mm
  • HANDLEBAR Pro Taper, Aluminium Ø 28/22 mm
  • REAR SUSPENSION WP XACT Monoshock with linkage
  • SEAT HEIGHT 946 mm
  • SILENCER Aluminium
  • STEERING HEAD ANGLE 63.9 °
  • REAR SUBFRAME DESIGN Aluminum-reinforced polyamide
  • SUSPENSION TRAVEL (FRONT) 305 mm
  • SUSPENSION TRAVEL (REAR) 293 mm
  • WHEELS Spoked wheels with aluminium rims
