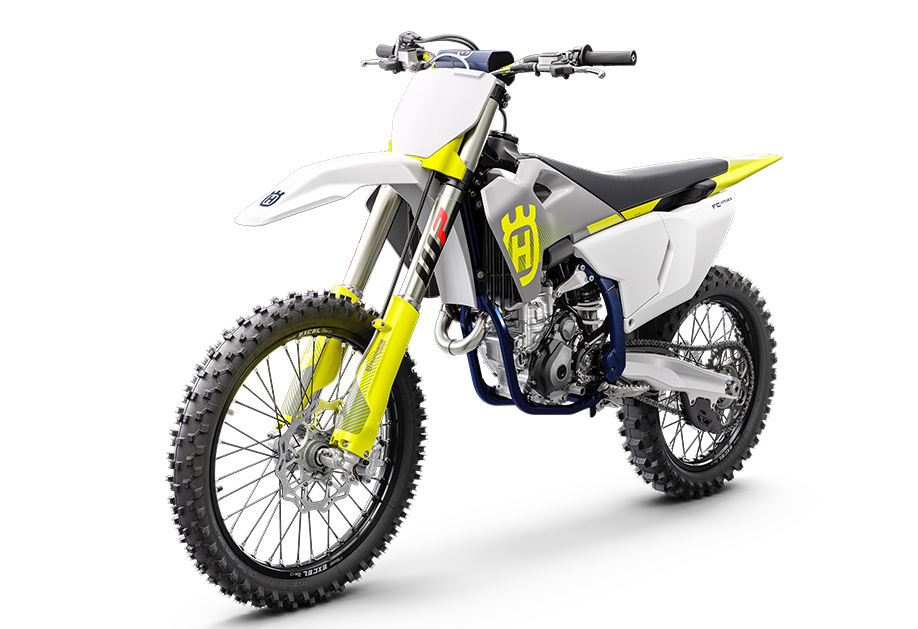

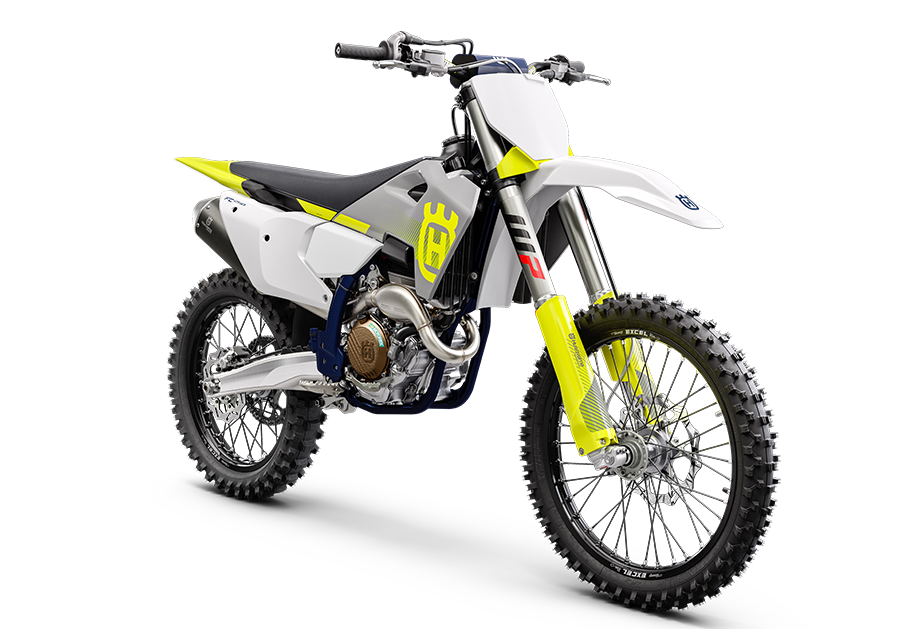

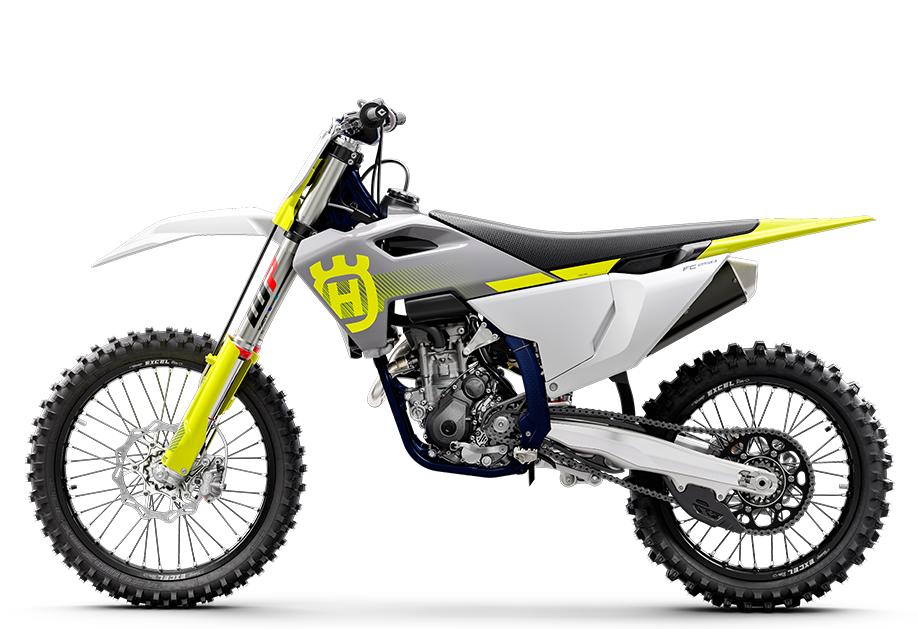

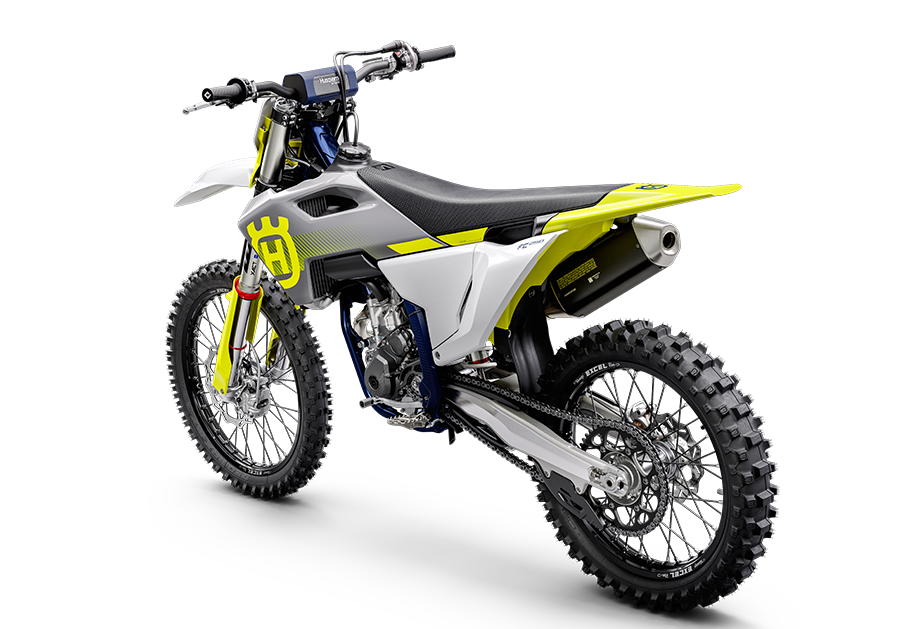

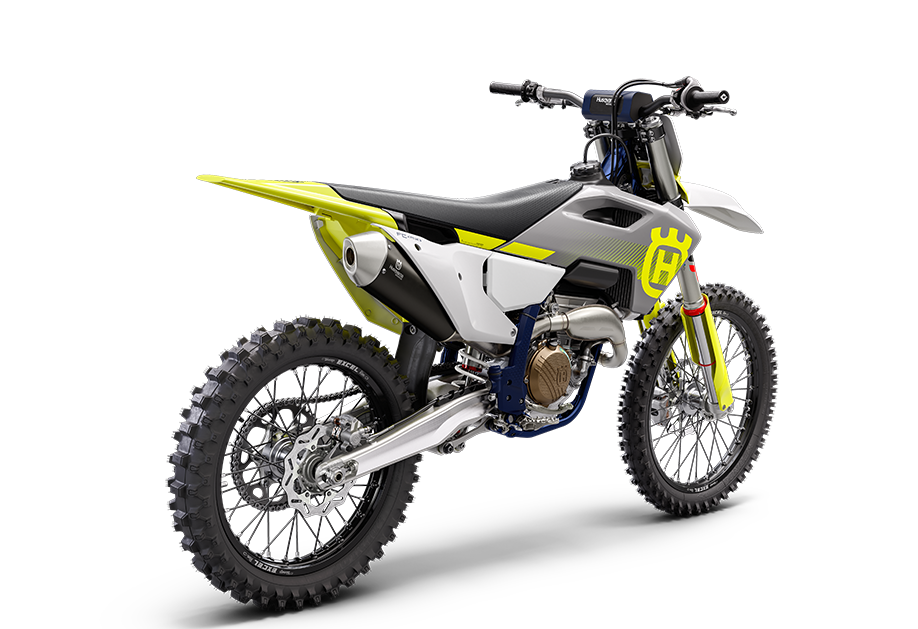

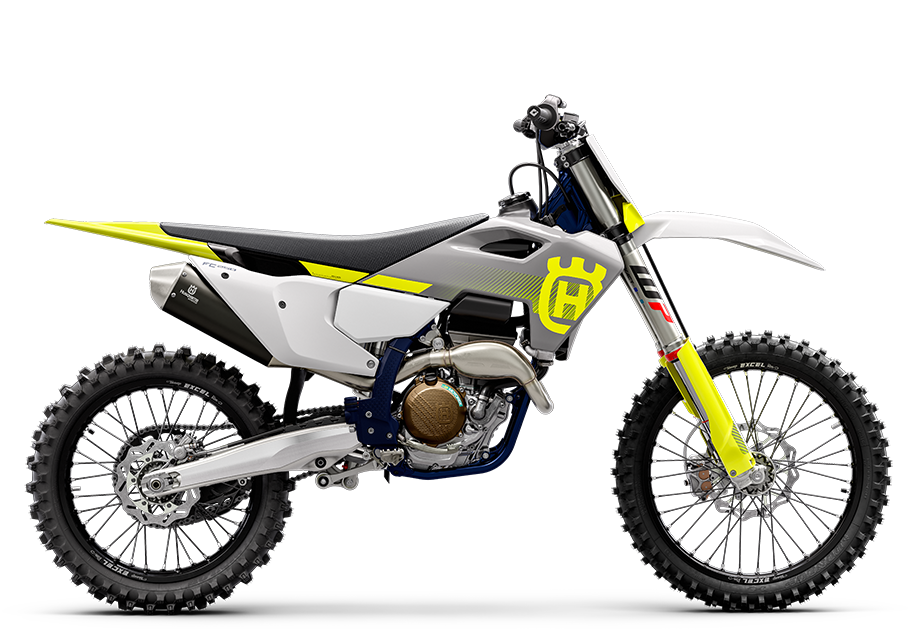

Hailed as the highest performing 250 cc 4-stroke motocross machine on the market, the FC 250 is equipped with multiple, performance-focused technical upgrades to maintain its place at the head of the field. New for 2024, striking white, yellow, and grey graphics are applied using in-mold technology for an outstanding and long-lasting finish while revised suspension settings further improve overall handling. Housed inside a lightweight chromium molybdenum frame, the compact, powerful, and versatile engine features a Pankl gearbox for smooth gear changes with a Quickshifter further aiding upshifts, especially under heavy load.

  • EXCEL Takasago Rims
  • Map Selection Switch
  • Traction Control
  • WP XACT Suspension



ENGINE

  • TRANSMISSION 5-speed
  • STARTER Electric starter
  • STROKE 48.5 mm
  • BORE 81 mm
  • CLUTCH Wet multi-disc DS clutch, Brembo hydraulics
  • DISPLACEMENT 249.9 cm³
  • EMS Keihin EMS
  • DESIGN 1-cylinder, 4-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL) 101.2 kg
  • TANK CAPACITY (APPROX.) 7.2 l
  • FRONT BRAKE DISC DIAMETER 260 mm
  • REAR BRAKE DISC DIAMETER 220 mm
  • FRONT BRAKE Disc brake
  • REAR BRAKE Disc brake
  • CHAIN 520, Non-sealed
  • FRAME DESIGN Central double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSION WP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE 336 mm
  • REAR SUSPENSION WP XACT Monoshock with linkage
  • SEAT HEIGHT 939 mm
  • STEERING HEAD ANGLE 63.9 °
  • SUSPENSION TRAVEL (FRONT) 305 mm
  • SUSPENSION TRAVEL (REAR) 293 mm
