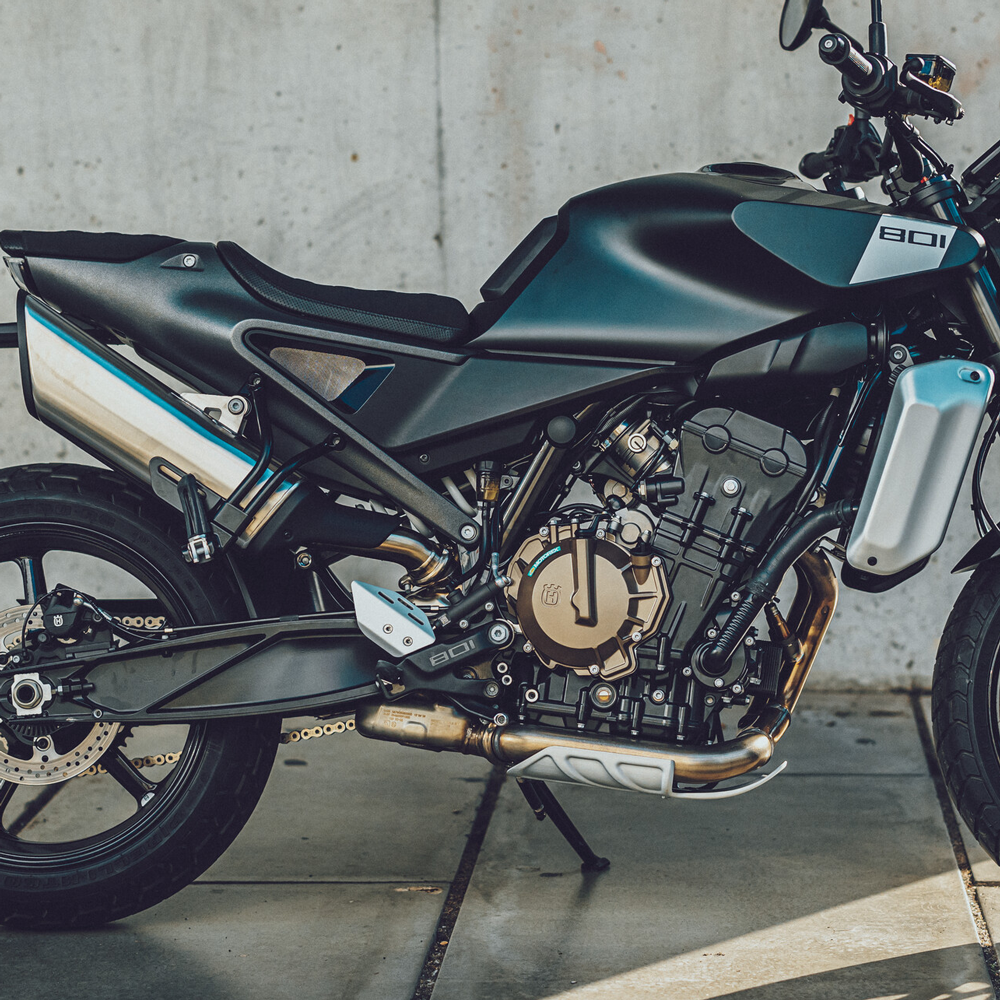

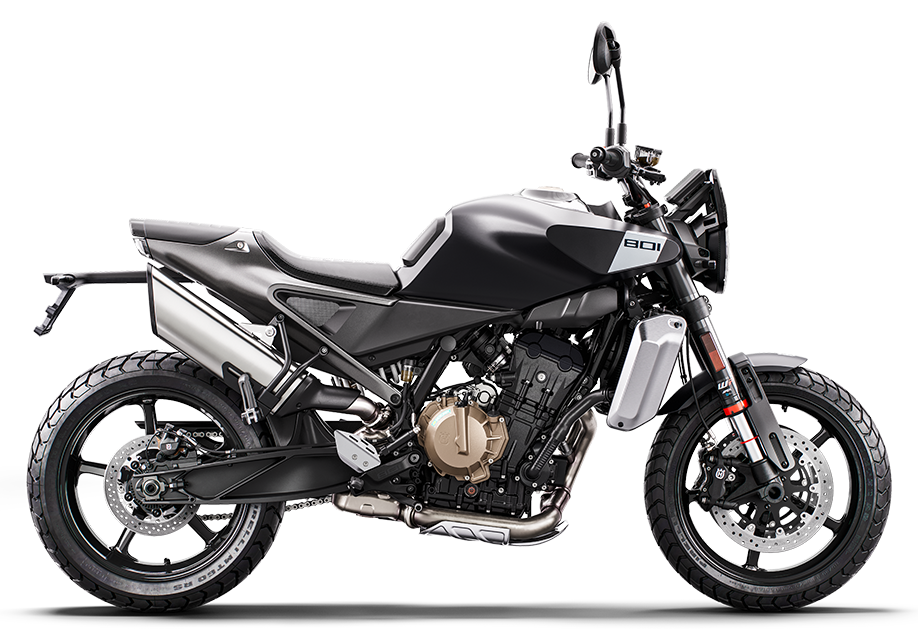

By combining exceptional versatility, performance, and minimalistic styling, the Svartpilen 801 makes sure you own the road. Beneath the dark tones of the scrambler-inspired aesthetics, a compact and powerful parallel-twin engine gets you where you need to be. A twist of the wrist always delivers exceptional torque to the rear wheel. The beautifully crafted and perfectly balanced chassis is enhanced by the refined ergonomics that create an engaging and intuitive riding experience through both city streets and out onto the open road. Adjustable WP suspension ensures every rider can create a personalised and comfortable setting while the extensive selection of state-of-the art electronic aids add multiple levels of customisation.

Engine

  • Primary drive39:75
  • Transmission6-speed
  • CoolingLiquid cooled with water/oil heat exchanger
  • Secondary gear ratio16:41
  • Power in KW77 kW
  • StarterElectric starter
  • Stroke65.7 mm
  • Bore88 mm
  • ClutchCable operated PASC slipper clutch
  • CO2 emissions106 g/km
  • Compression ratio12.5
  • Displacement799 cm³
  • EMSBosch EMS with RBW
  • Design2-cylinder, 4-stroke, parallel twin
  • Fuel consumption4.5 l/100 km
  • Fuel-mixture generationDKK Dellorto (Throttle body 46mm)
  • LubricationForced oil lubrication with 2 oil pumps

Chassis

  • Weight (without fuel)181 kg
  • Tank capacity (approx.)14 l
  • Wheelbase1.475 mm
  • Front brake disc diameter300 mm
  • Rear brake disc diameter240 mm
  • Front brake2x radially mounted 4 piston caliper
  • Rear brakeSingle-piston floating calliper
  • Chain520 X-Ring
  • Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
  • Front suspensionWP APEX 43
  • Ground clearance174 mm
  • HandlebarAluminum, tapered with cross member, Ø 28/22 mm
  • Rear suspensionWP APEX - Monoshock
  • Seat height820 mm
  • SilencerStainless steel primary and secondary silencer
  • Steering head angle65.5 °
  • Rear subframe designCast aluminium, powder coated
  • Suspension travel (front)140 mm
  • Suspension travel (rear)150 mm
  • Wheels3.50 x 17"; 5.50 x 17"
  • WheelsCast aluminium wheels
  • Wheelbase1.475 ± 15 mm
