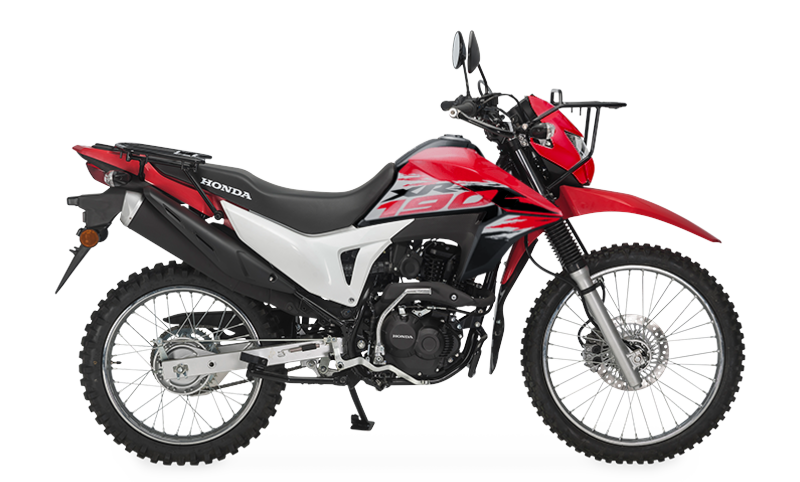

The XR190CT is Honda’s unbreakable two-wheeled farm machine, the ultimately practical and durable choice to get the job done. It has a super reliable 184cc fuel injected engine that provides the smooth strong power needed on the farm. Electric start is standard for comfort and convenience as well as a back-up kick start for peace of mind in emergency situations. Add in the generous carry rack capacity, dual side stands, lever guards and extra mud protection and this workhorse is ready to go.

Reliable

High performance 184cc 4-stroke, single-cylinder, air-cooled PGM-FI

Farmer approved

Tough 5-speed manual gearbox with Clutch lock

Ready to work

Electric with kick starter back up

Utility and versatility

Front and rear heavy duty carry racks

  • Comfortable low seat
  • Sturdy front and rear carry racks
  • Lever guards
  • Clutch lock
  • Electric and kick start



Chassis
Brakes
Brakes (F) 1x disc
Brakes (R) Drum
Suspension
Front Adjustability -
Front Suspension Type Telescopic fork
Front Wheel Travel (mm) 160
Rear Adjustability -
Rear Suspension Type Single Shock
Rear Wheel Travel (mm) 151
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 12
Dimensions
Wheelbase (mm) 1,369
Ground Clearance (mm) 237
Overall Height (mm) 1,127
Overall Length (mm) 2,103
Overall Width (mm) 842
Seat Height (mm) 827
Weights
Kerb Weight (kg) 137
Powertrain
Engine
Bore & Stroke (mm) 61 x 63.1
Compression Ratio 9.5:1
Cylinders 1
Displacement (cc) 184
Engine Type Air-cooled 4-stroke
Fuel System Fuel injection
Starter Electric and kick
Valves 2
Transmission
Transmission 5-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 2.75-21
Tyres (R) 110/90-18
