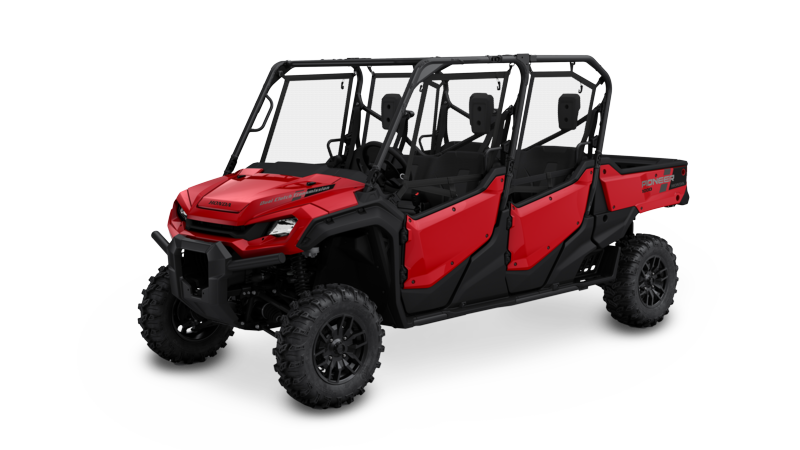

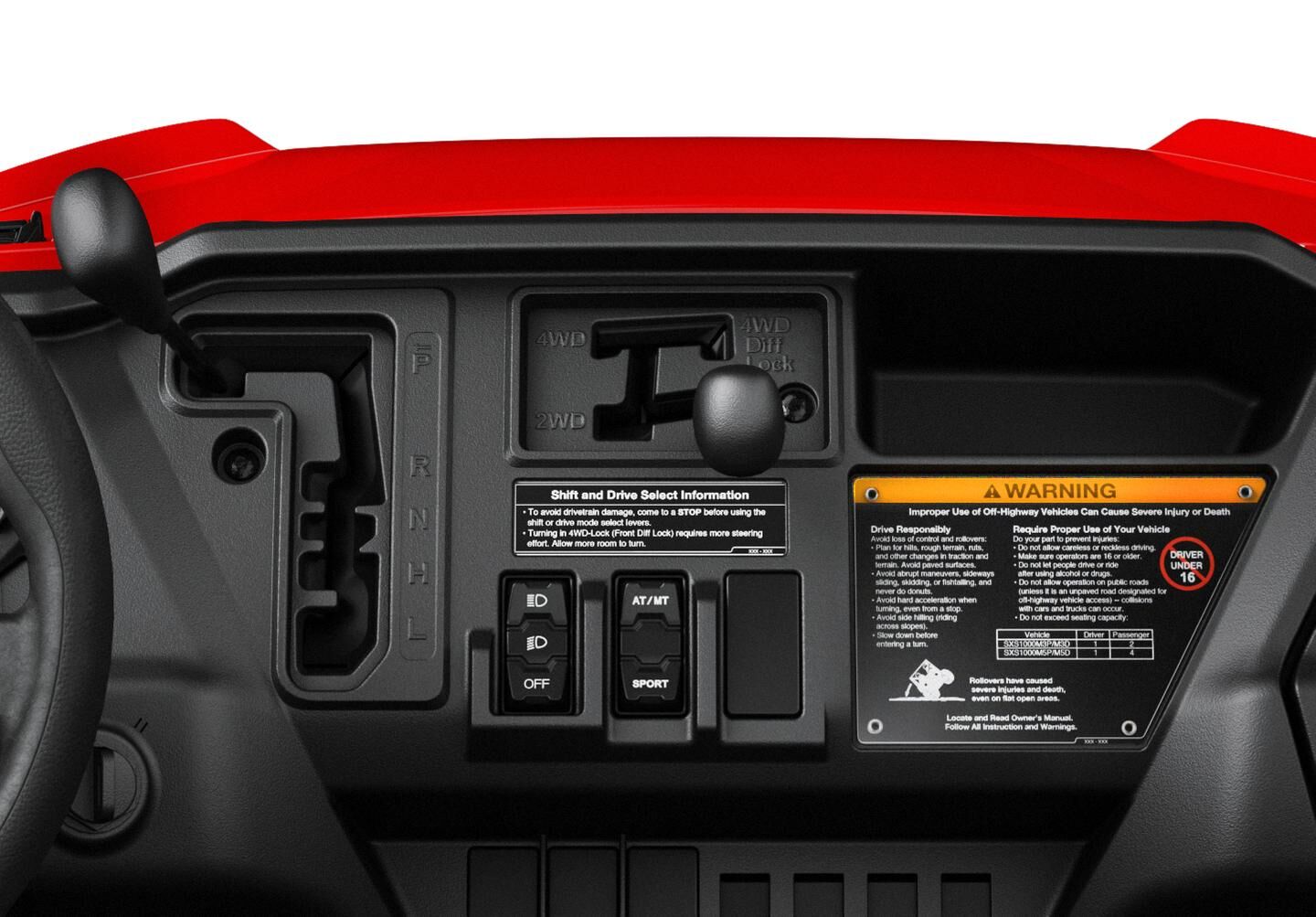

You can count on the Pioneer 1000 for all the tough jobs, with smart technology, superior materials, refined engineering and Honda’s well-earned and world-famous reputation for reliability and overall quality. The Pioneer 1000 has a 6-speed state-of-the-art beltless dual clutch transmission (DCT), with manual or fully automatic modes, that is durable, efficient and easy to use, coupled with a purpose-built inline twin-cylinder, Unicam® 999cc engine. The 4WD system has an option for every situation. Don’t want to tear up sensitive surfaces, select Turf Mode. Want to access as much traction as possible, put it in 4WD. Need maximum power at all four wheels, lock the front and rear differentials. And the best part is, you can do it all with a shift of a single lever. And when the jobs are too big to tackle alone you can bring the whole crew. That’s why we offer the Pioneer 1000 5-seater option. It’s got Honda’s exclusive QuickFlip® seating, letting you instantly switch from a fold-flat bed configuration to comfortable passenger seating.

Chassis
Brakes
Brakes (F) 2x 210mm hydraulic disc
Brakes (R) 2x 210mm hydraulic disc
Steering
Power Steering STD
Suspension
Front Adjustability n/a
Front Suspension Type Independent double-wishbone
Front Wheel Travel (mm) 268
Rear Adjustability n/a
Rear Suspension Type Independent double-wishbone
Rear Wheel Travel (mm) 254
Dimensions, Weights And Capacities
Capacities 30
Dimensions
Bed Dumping Angle n/a
Turning Radius (m) 4.75
Wheelbase (mm) 2,926
Bed Height (mm) n/a
Bed Length (mm) n/a
Bed Width (mm) n/a
Ground Clearance (mm) 320
Overall Height (mm) 1,933
Overall Length (mm) 3,866
Overall Width (mm) 1,600
Seat Height (mm) 850
Weights
Bed/Tray Weight Capacity (kg) 454
Kerb Weight (kg) 878
Max Weight Capacity (kg) 748
Towing Capacity (kg) 1,134
Powertrain
Engine
Bore & Stroke (mm) 92 x 75.15
Compression Ratio 10 : 1
Cylinders Inline 2
Displacement (cc) 999
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 8
Transmission
Drive Modes 2WD, 4WD, 4WD Lock, Turf
Transmission 6-speed with reverse; manual and automatic modes
Drive Shaft
Tyres And Wheels
Tyres
Tyres (F) 27x9-14
Tyres (R) 27x11-14
Warranty
Warranty 36 months
