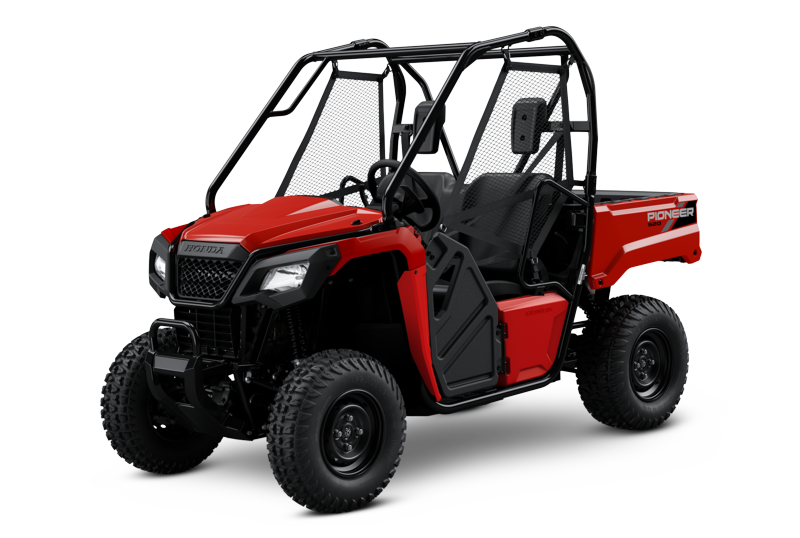

Honda’s Pioneer 520 is the perfect choice for multiple farmers, as its overall size, powerful 518cc engine and strut-assist tilt tray make it incredibly versatile. It comfortably seats two, and can easily be loaded up making transportation between locations easy. You also get features including automatic transmission with AT/MT modes, and selectable two- or four-wheel drive.

Chassis
Brakes
Brakes (F) 2x 200mm disc
Brakes (R) 1x 170mm disc
Steering
Power Steering -
Suspension
Front Adjustability preload
Front Suspension Type Independent double-wishbone
Front Wheel Travel (mm) 147
Rear Adjustability preload
Rear Suspension Type Independent double-wishbone
Rear Wheel Travel (mm) 150
Dimensions, Weights And Capacities
Capacities 15.4
Dimensions
Bed Dumping Angle -
Turning Radius (m) 3.9
Wheelbase (mm) 1,855
Bed Height (mm) 249
Bed Length (mm) 658
Bed Width (mm) 983
Ground Clearance (mm) 217
Overall Height (mm) 1,809
Overall Length (mm) 2,668
Overall Width (mm) 1,270
Seat Height (mm) 703
Weights
Bed/Tray Weight Capacity (kg) 204
Kerb Weight (kg) 482
Max Weight Capacity (kg) 400
Towing Capacity (kg) 454
Powertrain
Engine
Bore & Stroke (mm) 96 x 71.5
Compression Ratio 9.5:1
Cylinders 1
Displacement (cc) 518
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 2
Transmission
Drive Modes 2WD, 4WD
Transmission 5-speed with reverse; manual and automatic modes
Drive Shaft
Tyres And Wheels
Tyres
Tyres (F) 24x8-12
Tyres (R) 24x10-12
