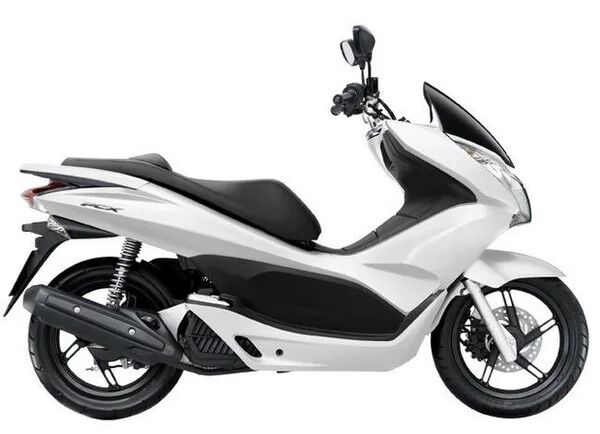

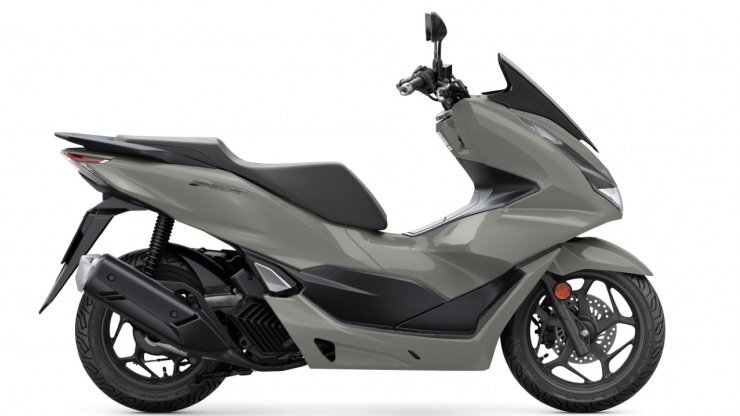

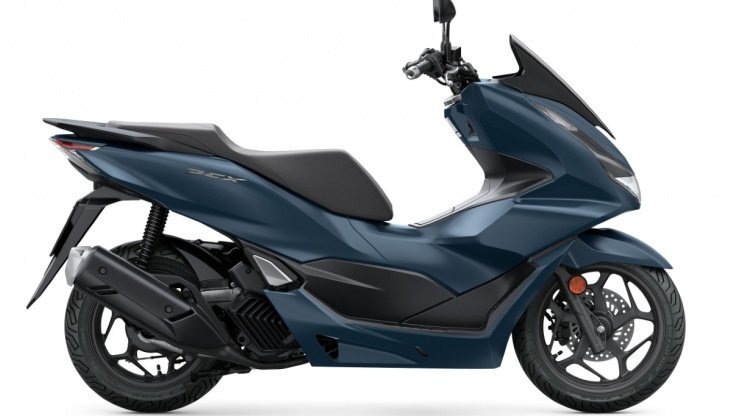

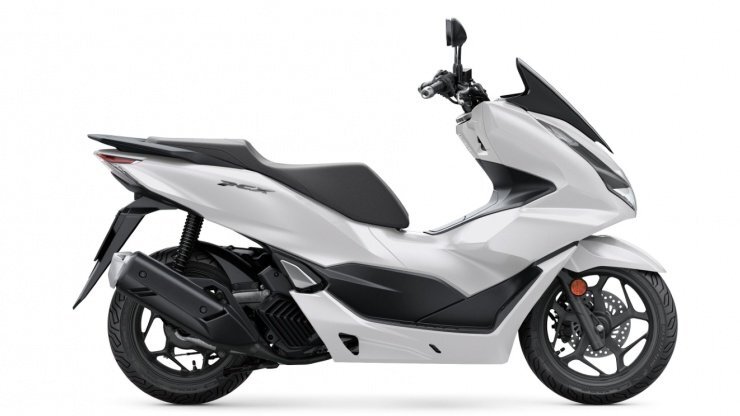

The PCX125 is powered by a liquid-cooled 4V engine, delivering smooth acceleration, while still returning amazing fuel economy. Smartly updated styling strikes futuristic lines, whilst the wide tyre size, long-travel rear suspension, CBS, and Honda Selectable Torque Control, ensure a smooth and confident ride. The PCX125 has practicality on its side too with under seat storage for a full-face helmet

Chassis
Brakes
Brakes (F) 1x 220mm disc,CBS
Brakes (R) Drum
Suspension
Front Adjustability -
Front Suspension Type 31mm telescopic fork
Front Wheel Travel (mm) 89
Rear Adjustability -
Rear Suspension Type Twin shocks
Rear Wheel Travel (mm) 95
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 8.1
Dimensions
Wheelbase (mm) 1,313
Ground Clearance (mm) 135
Overall Height (mm) 1,108
Overall Length (mm) 1,936
Overall Width (mm) 741
Seat Height (mm) 764
Weights
Kerb Weight (kg) 130
Powertrain
Engine
Bore & Stroke (mm) 53.5 x 55.5
Compression Ratio 11.5 : 1
Cylinders 1
Displacement (cc) 125
Engine Type Liquid Cooled, 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 4
Transmission
Transmission CVT
Drive Belt
Tyres And Wheels
Tyres
Tyres (F) 100/70-14
Tyres (R) 130/70-13
Warranty
Warranty 24 months
