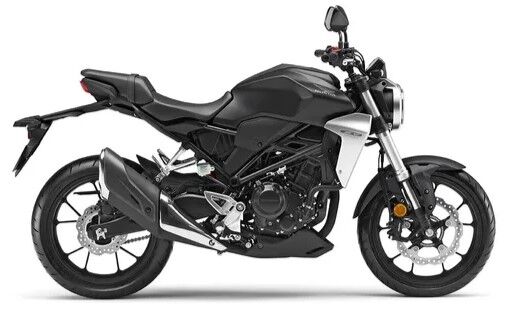

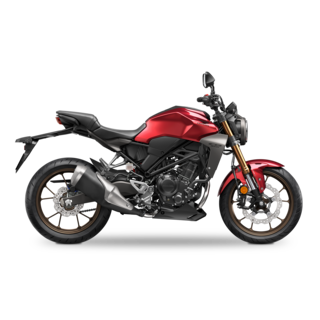

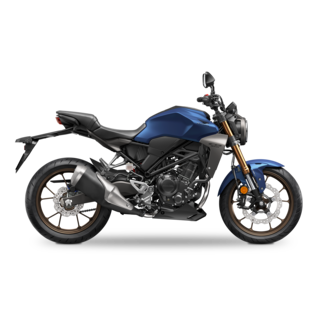

Fun to ride, easy and affordable to run, the CB300R is motorcycling at its essence. Delivering engaging response from engine and chassis, it displays Honda’s engineering prowess, design philosophy, premium equipment and high build quality in a light, practical and compact package.



Premium handling

41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks, minimalistic tubular diamond style frame

High end features

IMU (Inertial Measurement Unit) controlled ABS, assist/slipper clutch, LCD instrument display, full LED lighting

Lightweight and nimble

144kg kerb weight, compact wheelbase

Responsive and economical

286cc DOHC single cylinder engine with electronic fuel injection (PGM-FI)

Chassis
Brakes
Brakes (F) 1x 296mm disc, ABS
Brakes (R) 1x 220mm disc, ABS
Suspension
Front Adjustability -
Front Suspension Type 41mm telescopic fork
Front Wheel Travel (mm) 118
Rear Adjustability preload
Rear Suspension Type single shock
Rear Wheel Travel (mm) 132
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 10
Dimensions
Wheelbase (mm) 1,355
Ground Clearance (mm) 155
Overall Height (mm) 1,050
Overall Length (mm) 2,020
Overall Width (mm) 805
Seat Height (mm) 800
Weights
Kerb Weight (kg) 143
Powertrain
Engine
Bore & Stroke (mm) 76 x 63
Compression Ratio 10.7:1
Cylinders 1
Displacement (cc) 286
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel Injection
Starter Electric
Valves 4
Transmission
Transmission 6-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 110/70-17
Tyres (R) 150/60-17
Warranty
Warranty 24 months
