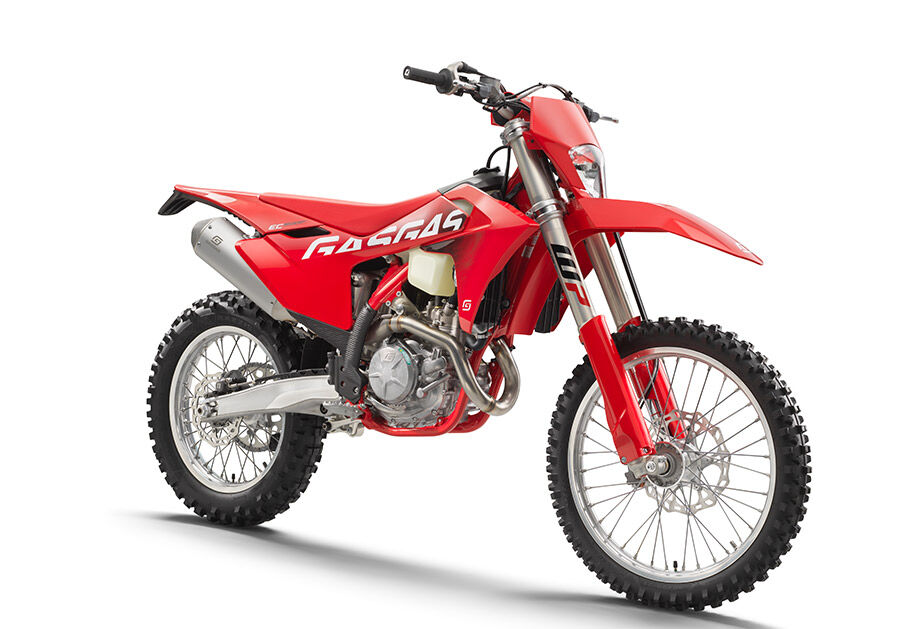

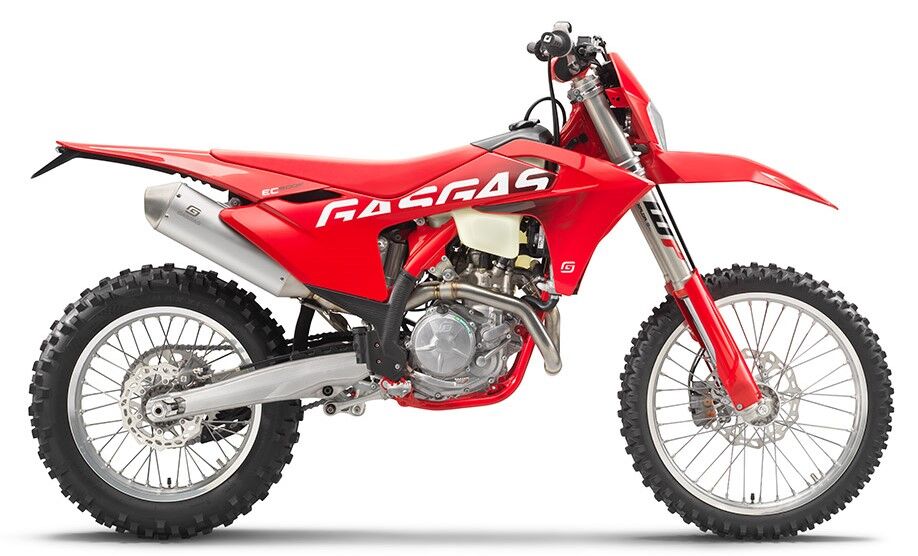

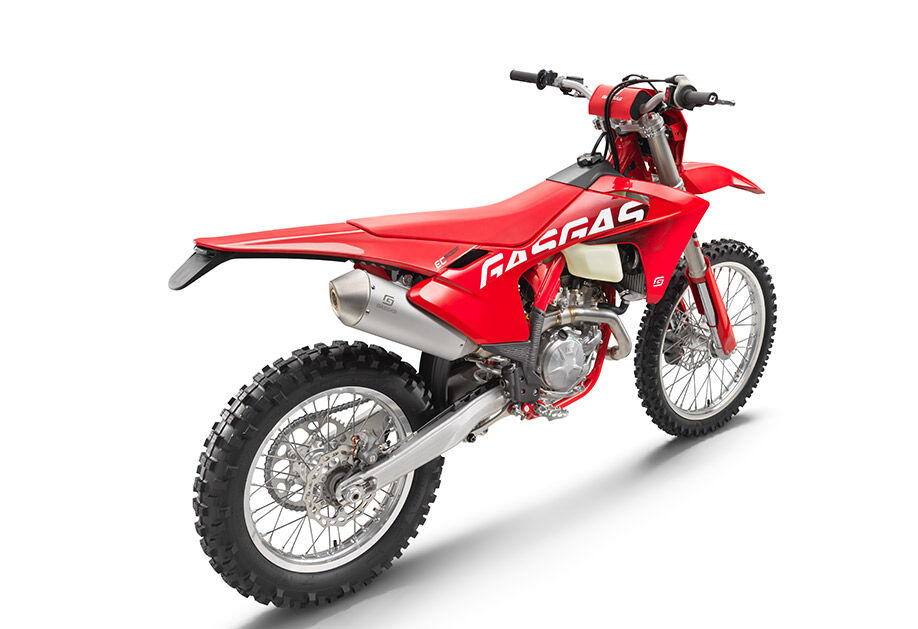

New for 2024, the EC 500F is a serious piece of kit! Big on power, big on fun, and big on guaranteeing good times in the dirt, our biggest capacity enduro bike is built for big-bore fun. While the half-litre hero might sound like a real powerhouse, modern electronics, and the combination of an agile chassis and supple WP suspension, make the EC 500F a really nimble bike despite its 500cc motor.

Engine

  • Transmission6-speed
  • Battery capacity2 Ah
  • CoolingLiquid cooled
  • StarterElectric starter
  • Stroke72 mm
  • Bore95 mm
  • ClutchDDS wet multi-disc clutch, Braktec hydraulics
  • Compression ratio12.75
  • Displacement510.9 cm³
  • EMSKeihin EMS
  • Design1-cylinder, 4-stroke engine
  • Fuel-mixture generationKeihin EFI, throttle body 42 mm

Chassis

  • Weight (without fuel)111.7 kg
  • Tank capacity (approx.)9.0 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brakeDisc brake
  • Rear brakeDisc brake
  • Chain520 X-Ring
  • Frame designCentral double-cradle-type 25CrMo4 steel
  • Front suspensionWP XPLOR-USD, Ø 48 mm
  • Ground clearance354 mm
  • HandlebarNeken, aluminium Ø 28/22 mm
  • Rear suspensionWP XACT Monoshock with linkage
  • Seat height956 mm
  • SilencerAluminium
  • Steering head angle63.9 °
  • Rear subframe designAluminium
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • WheelsSpoked wheels with aluminium rims
