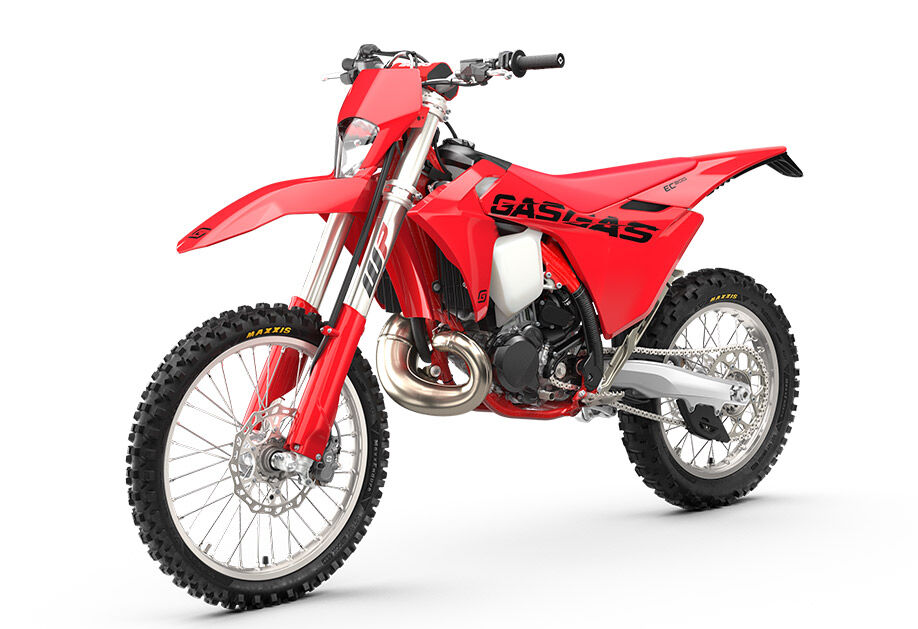

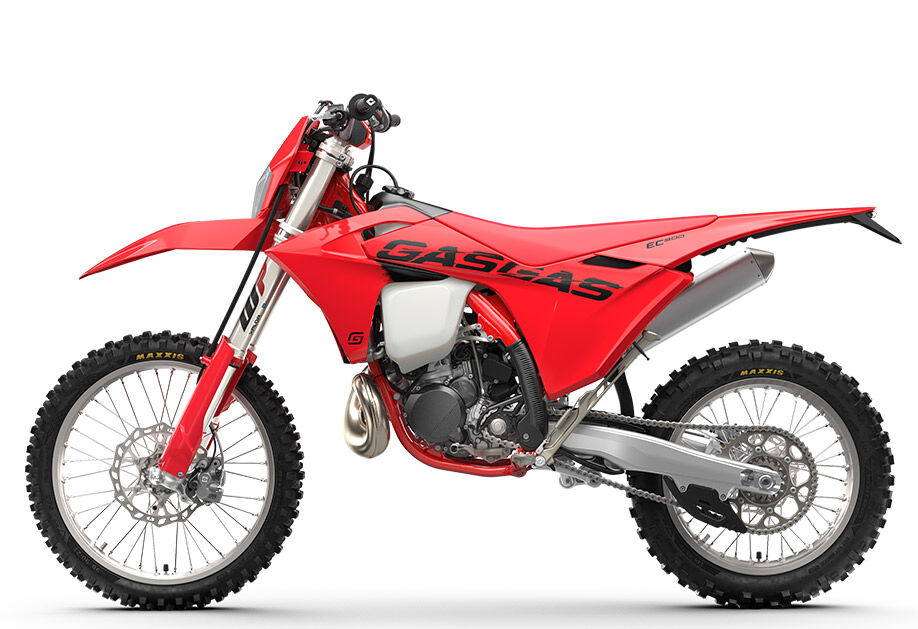

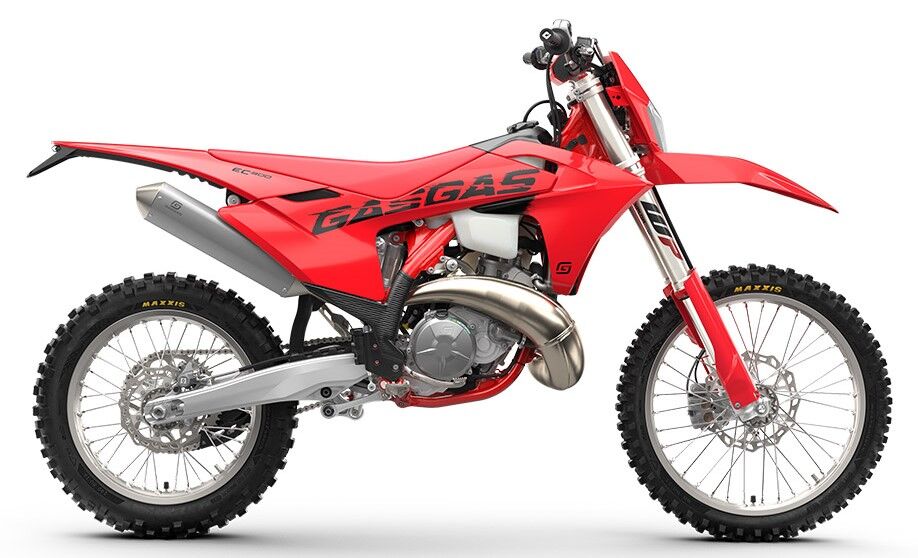

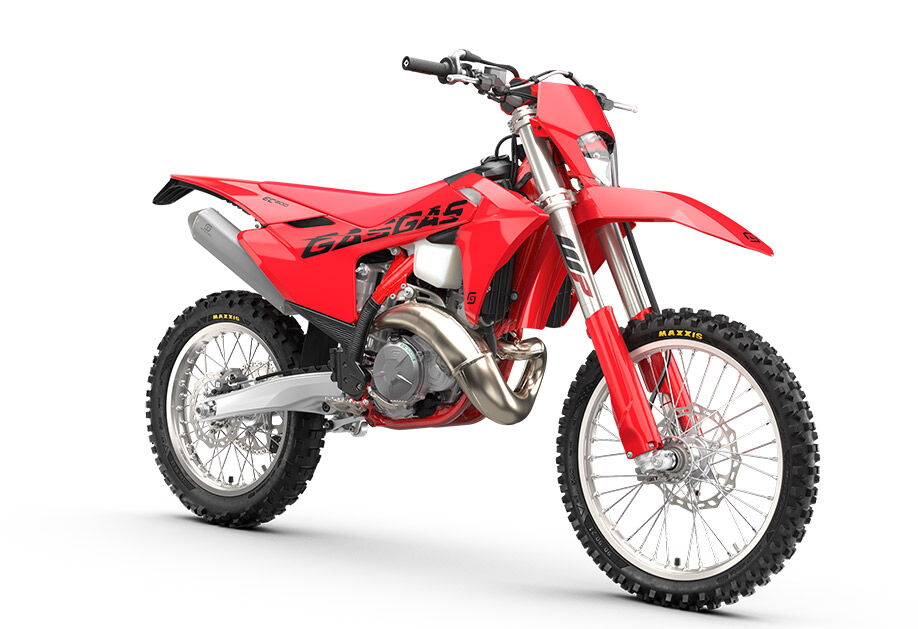

Prefer technical hard enduro to dodging trees at speed? Well, if it's the extreme stuff that gets you going, then our EC 300 is definitely for you! Designed from the wheels up to take on the gnarliest terrain, this ultra-modern enduro steed is light, powerful, and makes easy work of everything in its path. With tons of torque down low, and supple, easy-to-adjust WP suspension, those long, grueling days on the bike are made much more enjoyable aboard the EC 300. So, where are you taking yours?



Engine

  • Primary drive26:72
  • Transmission6-speed
  • Battery capacity2 Ah
  • CoolingLiquid cooled
  • Secondary gear ratio14:45
  • StarterElectric starter
  • Stroke72 mm
  • Bore72 mm
  • ClutchDDS wet multi-disc clutch, Braktec hydraulics
  • Displacement293.15 cm³
  • EMSVitesco Technologies EMS
  • Design1-cylinder, 2-stroke engine
  • Fuel-mixture generationKeihin EFI, throttle body 39 mm

Chassis

  • Weight (without fuel)107.6 kg
  • Tank capacity (approx.)9 l
  • Wheelbase1489 mm
  • Front brake disc diameter260 mm
  • Rear brake disc diameter220 mm
  • Front brakeDisc brake
  • Rear brakeDisc brake
  • Chain520 X-Ring
  • Frame designCentral double-cradle-type 25CrMo4 steel
  • Front suspensionWP XPLOR-USD, Ø 48 mm
  • Ground clearance354 mm
  • HandlebarNeken, aluminium Ø 28/22 mm
  • Rear suspensionWP XACT Monoshock with linkage
  • Seat height956 mm
  • SilencerAluminium
  • Steering head angle63.9 °
  • Rear subframe designAluminium
  • Suspension travel (front)300 mm
  • Suspension travel (rear)300 mm
  • Tyre dimensions (front/rear)90/90; 140/80
  • Wheels21 x 1.60"; 18 x 2.15
