Full send!

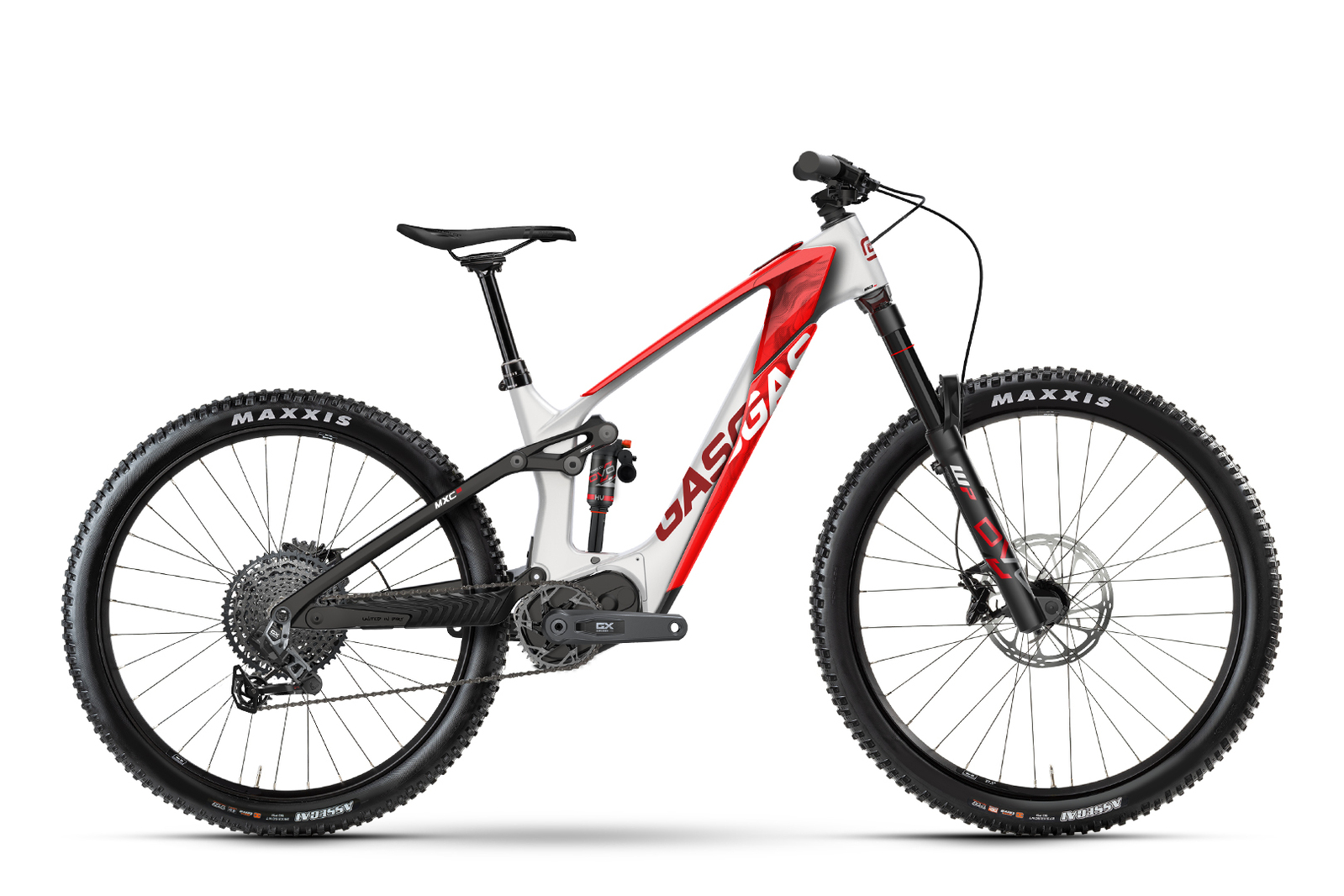

The MXC 5 is a playful all-mountain, all-rounder. A package of brazen fun, it's built for thrills and high-energy trail seekers. With a 160/140mm suspension platform, it's massively capable in any surrounding and is a bike that is not defined by any one genre. Bike park laps, rowdy natural trails, jump lines, free riding in the mountains...it does it all in true GASGAS style.

Capable chassis

The carbon frame, with mullet wheel set-up and size-specific rear-end are matched with progressive geometry and playful kinematics for a ride that’s super agile and instantly confidence-inspiring.

Powered by SRAM

SRAM's new Eagle Powertrain provides 90Nm of torque, 680W peak power and some dynamic auto-shift and coast-shift functions. The 630Wh battery and optional 250Wh Range Extender balance weight and range.

WP Suspension Partnership with DVO

The MXC 5’s suspension comes courtesy of DVO powered by WP, with ground-breaking cone-valve technology found for the first time in the eMTB space.

Specifications

Frameset

  • Frame 29/27.5", Carbon, Integrated battery, Boost, 140 mm

  • Fork DVO Onyx D1CV SL, Air, 160 mm, tapered

  • Shock DVO Topaz AIR CV, Air, 205x60 mm

Brakes & Drivetrain

  • Motor SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm

  • Battery SRAM Eagle Powertrain, 630 Wh

  • Charger SRAM Eagle Powertrain Charger, 4 A

  • Display SRAM Eagle Powertrain AXS Bridge Display

  • Front brake SRAM G2 RS, 4-piston, Hydraulic disc brake

  • Front brake rotor SRAM Centerline, 220 mm, 6-hole

  • Rear brake SRAM G2 RS, 4-piston, Hydraulic disc brake

  • Rear brake rotor SRAM Centerline, 200 mm, 6-hole

  • Rear derailleur SRAM GX Eagle Transmission, 12-S

  • Cassette SRAM XS-1275, 10-52 T

  • Chain SRAM GX Eagle Transmission Flattop

  • Chainring SRAM XX Eagle Transmission

  • Crank arm SRAM GX Eagle E-MTB

  • Shift lever SRAM AXS Pod Ultimate Controller

Wheels

  • Front wheel Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle

  • Rear wheel Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle

  • Tire Maxxis Assegai, 63-622, 29, 2.5

  • Rear tire Maxxis Minion DHR II, 62-584, 27.5 x 2.4

Cockpit

  • Stem GASGAS 35, 0 °, Ahead

  • Headset Acros AZX-579 ZS56/ZS56

  • Handlebar GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm

  • Grips GASGAS MTB, Lock-on grips

  • Saddle Selle San Marco GND

  • Seat post GASGAS Pro, 34.9 mm, Dropper post

Accessories

  • Pedals GASGAS, aluminum

  • Chain guide Direct Mount

Additional Information

  • Weight 24.1 kg

  • Permissible total weight 130 kg

  • Trailer approval No trailer approval
