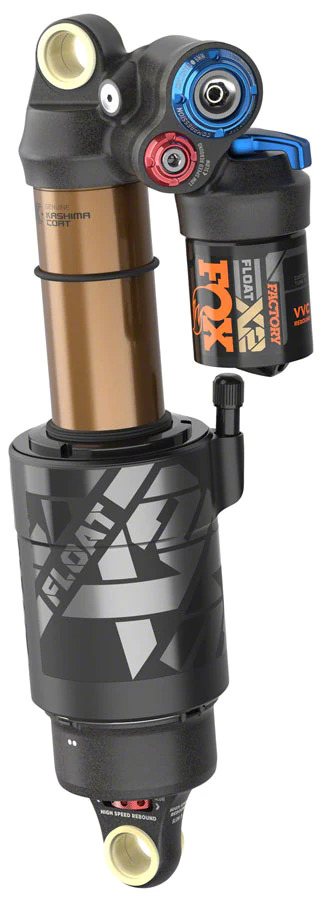

Combining ultra-plush coil-like comfort and incredible damping prowess with the light weight of an air spring and an unmatched level of tunability, the Float X2 brings new levels of control and performance to every terrain imaginable.

“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat

Features:

  • NEW chassis & damper
  • NEW high-flow main piston
  • NEW progressive bottom-out bumper
  • NEW lower friction air seals
  • NEW ultra-low friction, highly durable hard chrome damper shaft finish
  • NEW graphics
  • Improved bearing ratio for metric sizes
  • Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
  • Updated compression ratios, 300psi max
  • Improved high-speed rebound tunability via addition of VVC (Variable Valve Control)
  • Increased control and decreased harshness via linear damping
  • Ultra-low-friction, highly durable damper shaft finish
  • Independent firm mode circuit – firmer lockout than previous FLOAT X2
  • Finned inner body for improved structural rigidity and reduced hysteresis



SIZES (With 2-position Adjust Lever)
Imperial Sizes (NEW 2021 model) 7.875 x 2.0 / 8.5 x 2.5
Metric Sizes (NEW 2021 model) 210 x 50 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 65
Imperial Sizes (2020 model) 7.875 x 2.25
SIZES (Without 2-position Adjust Lever)
Imperial Sizes (NEW 2021 model) 9.5 x 3.0 / 10.5 x 3.5
Metric Sizes (NEW 2021 model) 250 x 75
Imperial Sizes (2020 model) 8.75 x 2.75
ADJUSTMENTS

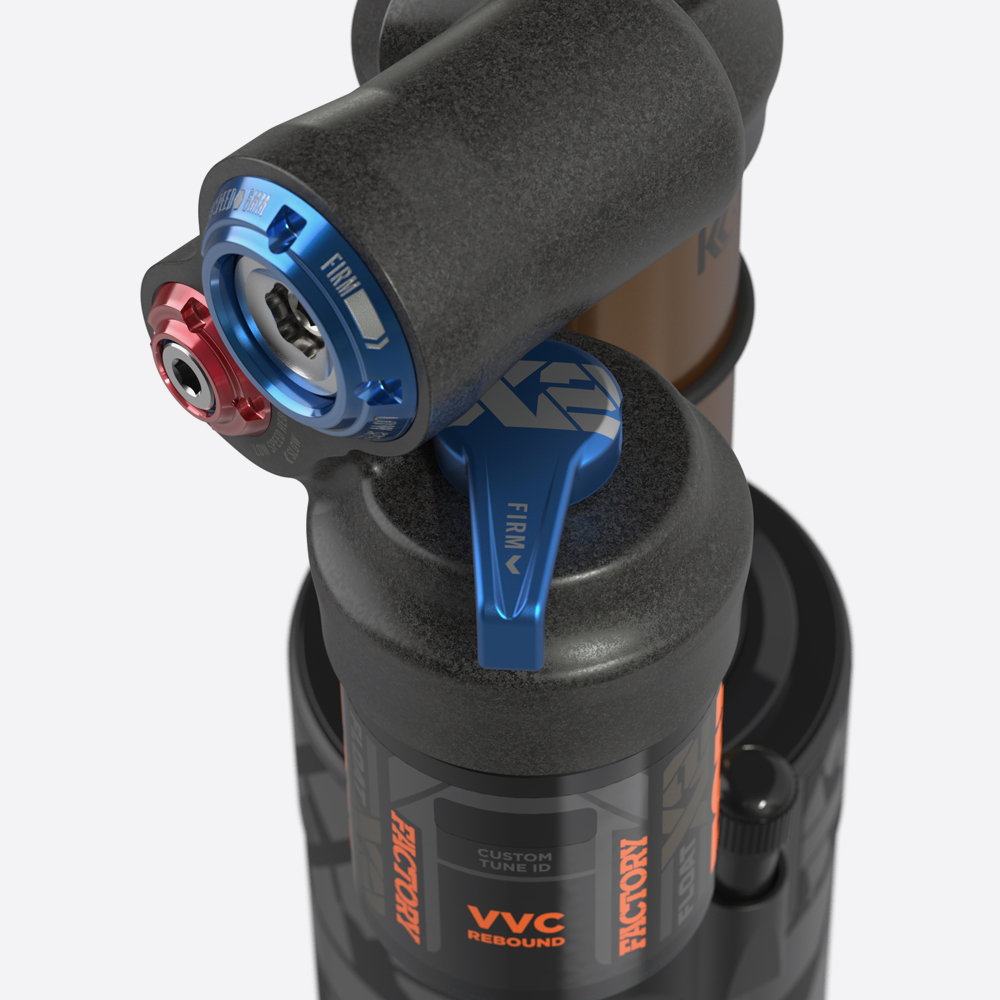

Optional 2-position Open/Firm lever (retains high and low speed compression adjustment)
High-speed compression - 8 clicks
Low-speed compression - 16 clicks

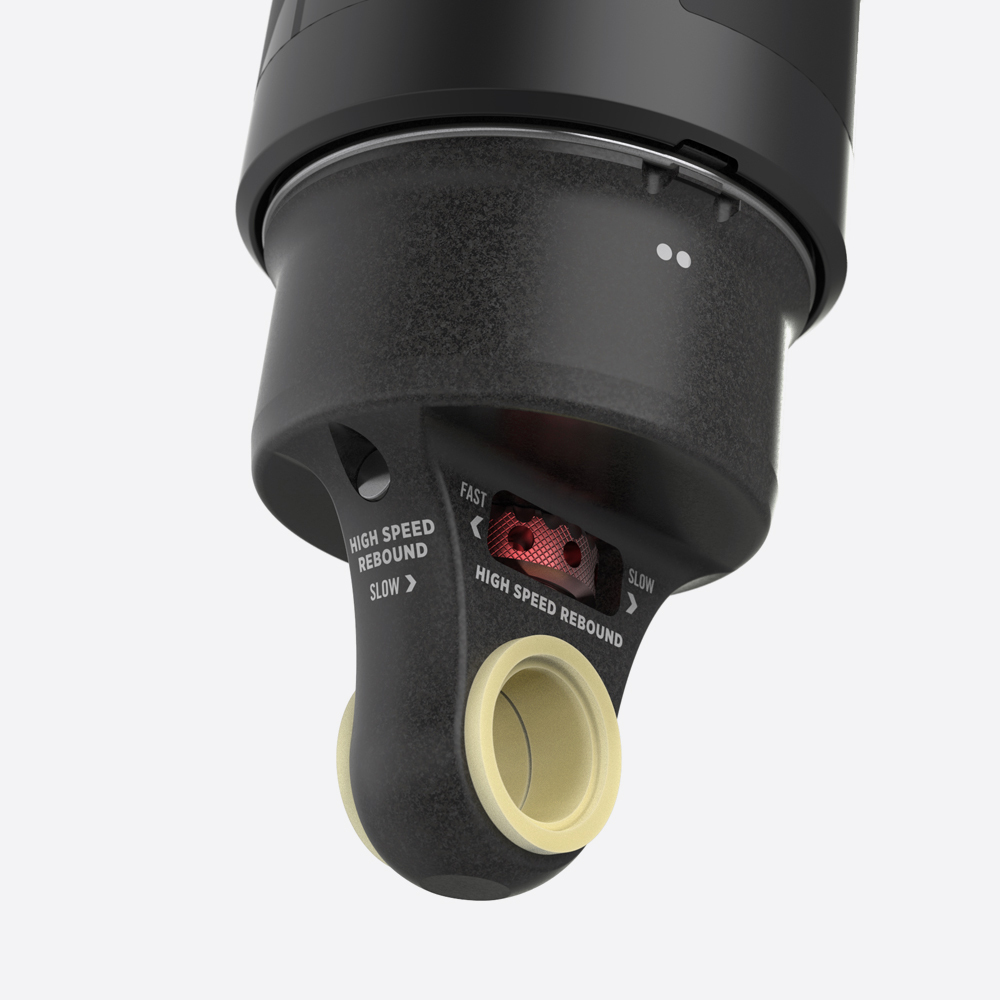

High-speed rebound (w/VVC) - 8 clicks
Low-speed rebound - 16 clicks
ALL FACTORY FLOAT X2 SHOCKS
Body finish Kashima Coat
VVC Rebound Yes
