VIN ZDM1H00AANB009665 Listing Type Used
Sale Status For Sale
Type   Sub Type
Transmission Manual Engine No
Registration Plate Vehicle is not registered
Engine Number   Odometer   4km
Base Colour Bayliss
Displacement 955.0 ccm (58.27 cubic inches)
Engine type V2, four-stroke
Engine details Superquadro L-Twin
Power output 152.9 HP (111.6 kW)) @ 10750 RPM
Torque 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 9000 RPM
Compression 12.5:1
Bore x stroke 100.0 x 60.8 mm (3.9 x 2.4 inches)
Valves per cylinder 4
Fuel system Injection. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Fuel control Desmodromic valve control
Cooling system Liquid
Gearbox 6-speed
Transmission type Chain (final drive)
Clutch Hydraullically controlled slipper and self-servo wet multilplate
Driveline Chain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77.
Fuel consumption 6.00 litres/100 km (16.7 km/l or 39.20 mpg)
Greenhouse gases 139.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Emission details Euro 5
Exhaust system 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Chassis, suspension, brakes and wheels
Frame type Monocoque Aluminium
Rake (fork angle) 24.0°
Trail 95 mm
Front suspension Öhlins NIX 43mm with TiN treatment, fully adjustable used fork
Front wheel travel 120 mm

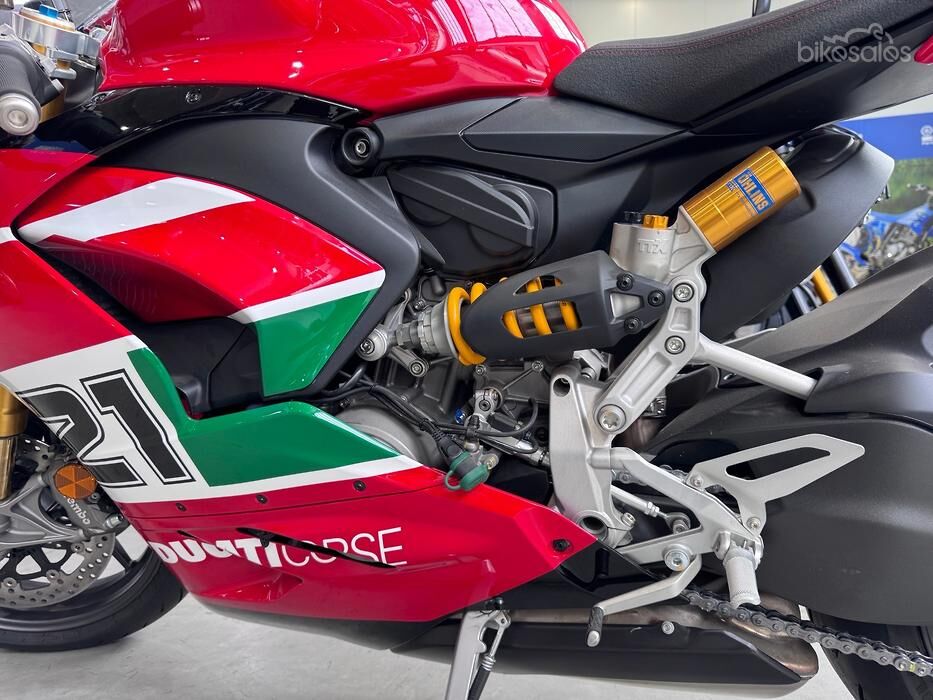

Rear suspension Fully adjustable Öhlins TTX mono shock, aluminum single-sided swingarm
Rear wheel travel 130 mm
Front tire 120/70-ZR17
Rear tire 180/60-ZR17
Front brakes Double disc. ABS. Brembo.
Diameter 320 mm
Rear brakes Single disc. ABS. Brembo.
Diameter 245 mm

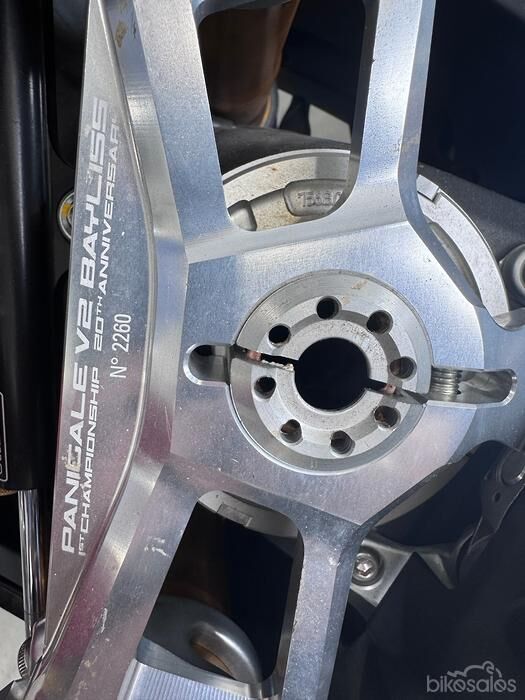

Wheels 3 spoke W shape forged light alloy. Pirelli Diablo Rosso Corsa II tires.
Physical measures and capacities
Dry weight 174.5 kg
Weight incl. oil, gas, etc 197.0 kg
Power/weight ratio 0.8761 HP/kg
Seat height 835 mm
Overall height 1105 mm
Overall length 2070 mm
Overall width 745 mm
Wheelbase 1438 mm
Fuel capacity 17.00 litres
