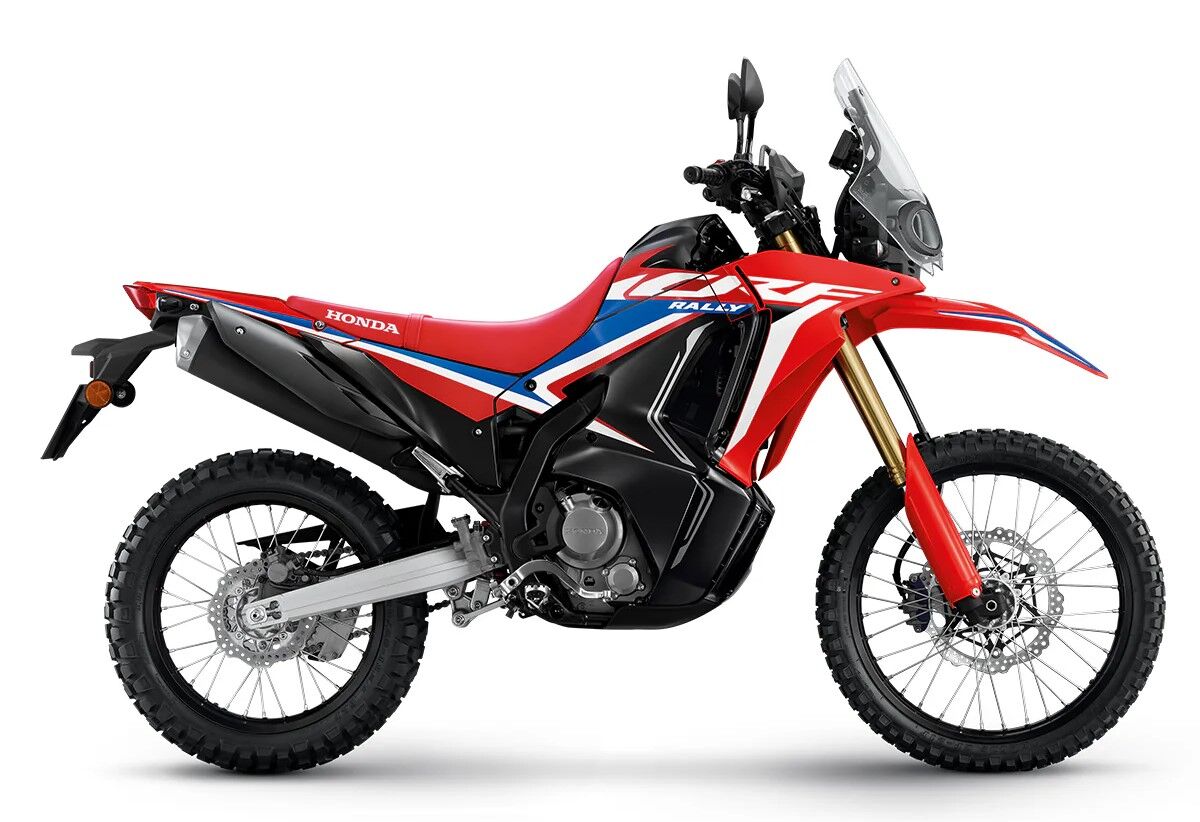

Made for the adventurous dual-sport rider, the new CRF300 RALLY is a small capacity machine packing serious credentials. With styling drawn directly from the Dakar winning competition-spec HRC CRF450 RALLY, it adds long-range ability and comfort to its off-road performance thanks to a large fuel tank and wind-cheating nose fairing and screen. Now lighter in weight, with more power and torque from its engine, the CRF300 RALLY is the perfect travelling partner – around town, or the world.

    • Made for the adventurous or weekday commuter
    • Broad engine power-band with plenty of low-end torque
    • Dakar Rally inspired graphics
    • Digital instrument display
Chassis
Brakes
Brakes (F) 1x 296mm disc, ABS
Brakes (R) 1x 220mm disc, ABS
Suspension
Front Adjustability -
Front Suspension Type 43mm inverted telescopic fork
Front Wheel Travel (mm) 234
Rear Adjustability -
Rear Suspension Type single shock
Rear Wheel Travel (mm) 260
Dimensions, Weights And Capacities
Capacities
Fuel Capacity (L) 12.8
Dimensions
Wheelbase (mm) 1,455
Ground Clearance (mm) 275
Overall Height (mm) 1,415
Overall Length (mm) 2,230
Overall Width (mm) 920
Seat Height (mm) 885
Weights
Kerb Weight (kg) 152
Powertrain
Engine
Bore & Stroke (mm) 76.0 x 63.0
Compression Ratio 10.7 : 1
Cylinders 1
Displacement (cc) 286
Engine Type Liquid-cooled 4-stroke
Fuel System Fuel injection
Starter Electric
Valves 4
Transmission
Transmission 6-speed
Drive Chain
Tyres And Wheels
Tyres
Tyres (F) 80/100-21
Tyres (R) 120/80-18
Warranty
Warranty 24 months
